Key Advantages

• True 10 Gig Performance | 550 MHz Bandwidth – Handles 10 GBASE-T to 55 m and full-duplex Gigabit to 100 m.
• 23 AWG Solid Bare Copper – Cooler PoE runs, stronger signals, zero CCA compromise.
• CMP Low-Smoke FEP Jacket – UL CMP & NFPA 262 compliant for air-return ceilings & ducts.
• PoE/PoE+/PoE++ Ready – Up to 90 W (IEEE 802.3af/at/bt) for APs, PTZ cams & IoT endpoints.
• Color-Coded Blue Jacket – Instantly ID data backbones within complex cabling trays.
• Alien Crosstalk Defense – Tight twist geometry & separator spline keep EMI at bay.
• Installer-Friendly Pull Box – 1000 ft (305 m) sequential-marked, snag-free packaging.
• RoHS 3 & Forever Warranty – Eco-smart build plus lifetime peace of mind.

Technical Specifications

• Cable Type: 4-pair UTP, Cat 6 (CMP)
• Conductors: 23 AWG solid bare copper
• Bandwidth: Tested to 550 MHz
• Speed: 10 Gigabit (10 GBASE-T to 55 m) / Gigabit Ethernet to 100 m
• PoE Support: PoE, PoE+, PoE++ (IEEE 802.3af/at/bt)

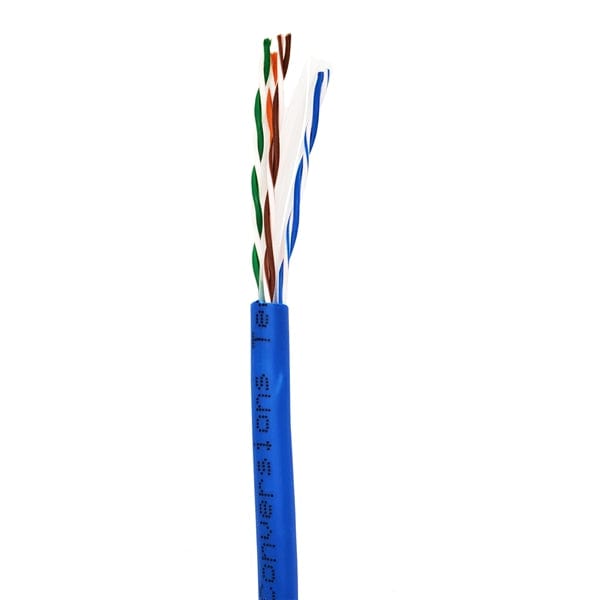

• Jacket Material: Plenum-rated FEP, blue
• Flame Test: UL CMP / NFPA 262

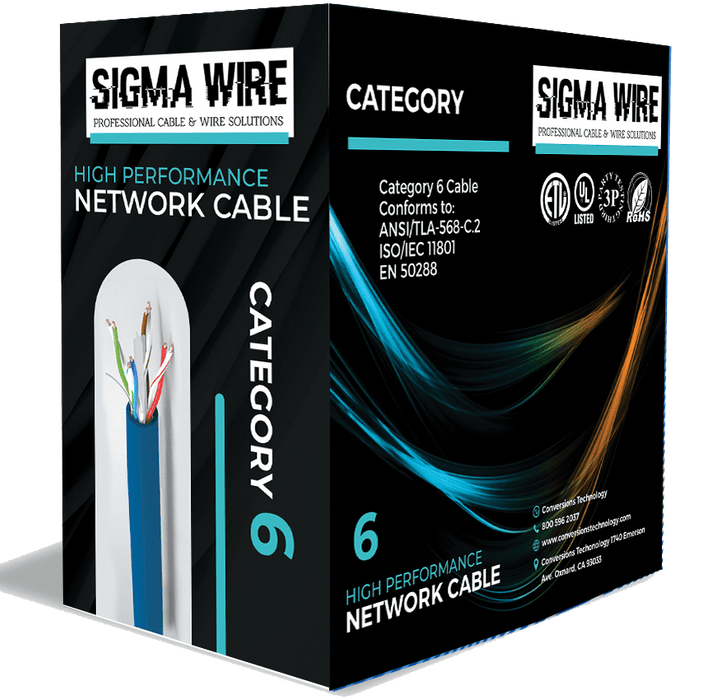

• Packaging: 1000 ft (305 m) tangle-free pull box with footage markers
• Compliance: ANSI/TIA 568.2-D, UL CMP, RoHS 3
• Warranty: Conversions Tech Forever Warranty

Engineered for Code-Critical Plenum Runs

Ideal for data centers, hospitals, universities, and smart buildings where plenum spaces demand low-smoke, flame-retardant cabling. Feed Wi-Fi 6E access points, 4K PTZ security cameras, digital signage, and edge switches on one high-capacity copper expressway.
