Busbars & Power Distribution
DC busbars, fuse blocks, and terminal strips for 12 V, 24 V, and 48 V systems — vans, RVs, boats, off-grid solar, telecom and battery cabinets. Tin-plated copper bus on flame-retardant bases; PowerBar-class 600 A bars with 3/8"-16 studs down to 150 A common bars with M8/M6 studs; ATO/ATC, MIDI/MEGA/ANL, Mini ANL, and MRBF fuse blocks; 25–30 A barrier terminal strips. Stocked in Oxnard, CA; same-day shipping by 2PM ET; Net-30 for trade accounts.
Choosing: size the busbar by total continuous current with all terminals landed and match the stud to the lug (3/8" for 4/0–500 kcmil, M8 for 2–4/0, M6 for 8–2 AWG). No more than four terminals per stud (ABYC E-11.10.4). Every positive feed needs a fuse within 7 in of its source; the fuse family must match the system voltage — ATO, MIDI, MEGA, ANL are 32 V; MRBF is 58 V; Class T is 125 V — and its interrupt rating must exceed the bank's short-circuit current (lithium banks need MRBF or Class T at the battery). Full guide: DC Power Distribution for 12/24/48 V Systems.
Cross-reference
| CT Part / Product | Rating | Crosses |
|---|---|---|

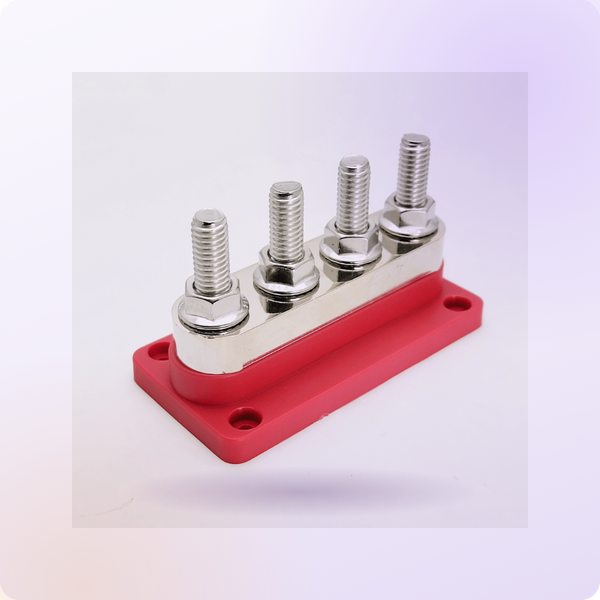

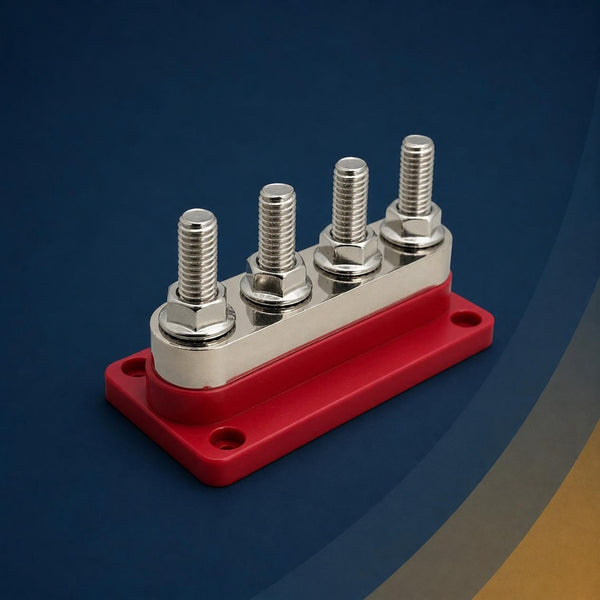

| 6854-500 PowerBar 600A, four 3/8"-16 studs | 600 A DC, 48 V DC / 300 V AC | Blue Sea Systems 2104 |
| 6855-600 600A busbar kit, 2 studs + 6 screws | 600 A class | Blue Sea 2104 (nearest) |
| 4-stud busbar 250A, M8 / M10, 2-pk | 250 A, 12–48 V | Blue Sea 2300 / 2301 class |
| Negative busbar 150A, M8/M6 + M4, 2-pk | 150 A, 12–48 V | Blue Sea 2300 / 2301, DualBus 2701 class |
| ATO/ATC blade fuse block, 4–12 circuit | 32 V, 30 A/circuit | Blue Sea 5025 / 5026, Bussmann 15600 |
| 8-circuit ATO/ATC block with cover | 32 V, 100 A | Blue Sea ST Blade class, Bussmann 15600-08 |
| Dual MRBF terminal fuse block, 5/16" stud | 30–300 A, 58 V | Blue Sea 5191 |
| 6-position MIDI/MEGA/ANL bolt-down block | 30–400 A, 12–48 V | Blue Sea 5006 / 5001 class, Bussmann HMIDI / HMEG |
| 6-position ANM/MEGA bolt-down block, 100 A fuses | 40–500 A, 32 V | Blue Sea 5001 class, Bussmann HMEG |
| Mini ANL / AFS inline holder, 200 A | 32 V | Blue Sea / Bussmann Mini ANL holder class |
| 630-250 barrier terminal strip, 3 & 6 pole | 250 V, 30 A/pole | Bussmann TB200 class, Cinch 140 class |
| 625-300 barrier terminal strip, 2–36 pole | 300 V, 25 A/pole | Bussmann TB100 / TB200 / TB200HB |
Exact part numbers are one-for-one crosses; "class" entries identify the equivalent family by function and rating — confirm stud size, circuit count, and fuse element voltage for the application. Related: Split Bolt Connectors · Contractor & distributor pricing →
