Transmission & Distribution Hardware | Hot-Line Clamps, Fuse Cutouts, Transformer Bushings, Arrester Terminals, Tank Ground Clamps
Overhead distribution hardware, stocked.
Bronze and aluminum hot-line tap clamps to ANSI C119.4, 100 A drop-out fuse cutout holders in 15, 27 and 38 kV with hinge assemblies, ANSI C57.12 porcelain transformer bushings from LV eyebolt to 2100 A pad-mount TRI-clamp, NEMA CC1 spade terminals, Type LAT arrester terminals, and GTCS and GTCL transformer tank ground clamps. Sold to line contractors, co-ops, municipal utilities and transformer rebuilders; RUS-class hardware, quoted by the piece or the pallet, in stock and shipping same day.
Pick by job
| Job | Part |
|---|---|

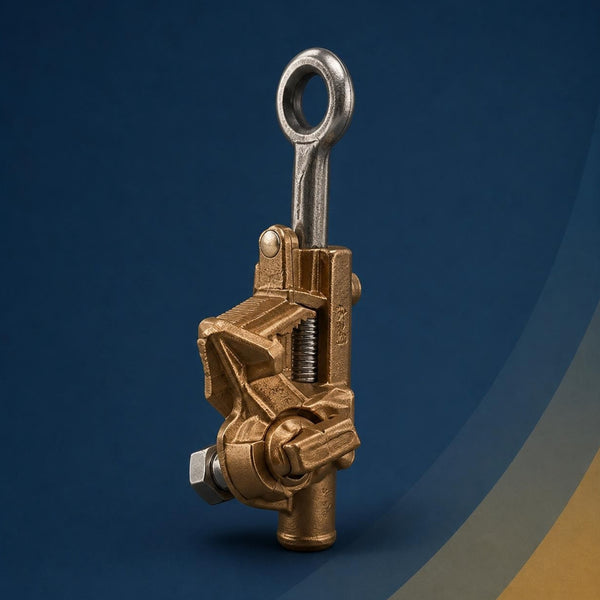

| Energized tap off a bare overhead conductor | IHL bronze (copper) or IHLA aluminum (ACSR/AAC) hot-line clamp, eyebolt for the hot stick |
| Replace a blown cutout holder | IFH15 / IFH27 / IFH38 fuse holder, plus IHA152738 hinge if the pivot is worn |
| Transformer secondary bushing | ILV-521 / 863 / 865 eyebolt or stud, or the complete assembly with spade |
| Pad-mount secondary | ILV-600 / 1200 / 2100 TRI-clamp bushing with matching ITS spade terminal |
| Arrester ground lead | ILAT20 or low-profile IGC207LA, 3/8-16 stud |
| Tank ground | ITCL 90 degree or ITCS straight four-way clamp, 10 AWG to 250 kcmil |
Buying for a utility program? See everything we supply to utilities and public power, with spec crosses and bid support: Utility & Public Power Electrical Supply.
Related: irreversible compression grounding · ground rods · split bolts · utility and co-op pricing
