Compression Lug Dies | 12-Ton U-Dies by Index, 8 AWG to 750 kcmil, Individual and 19-Piece Kit, Fit Burndy, Greenlee, T&B and CT Crimpers
U-dies by index number, the same index stamped on every compression lug.

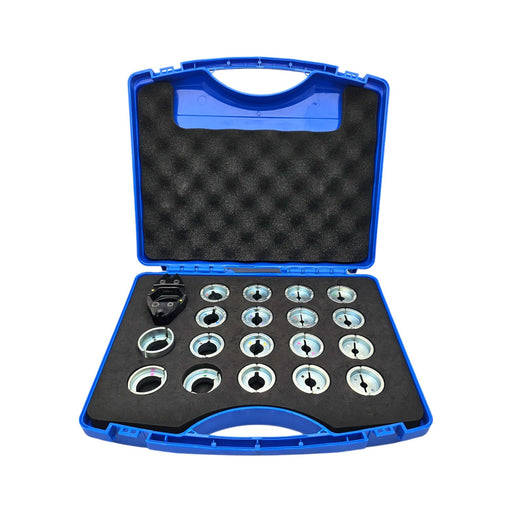

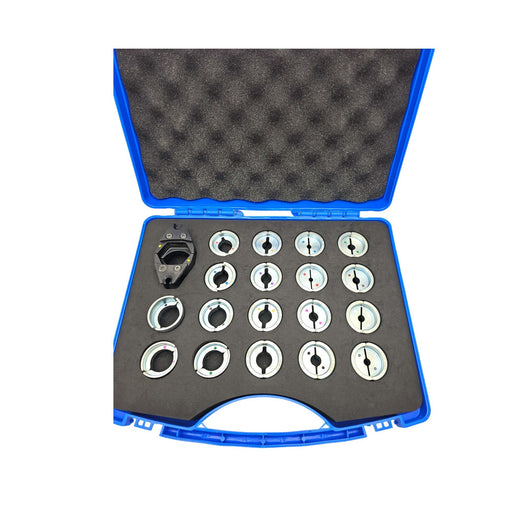

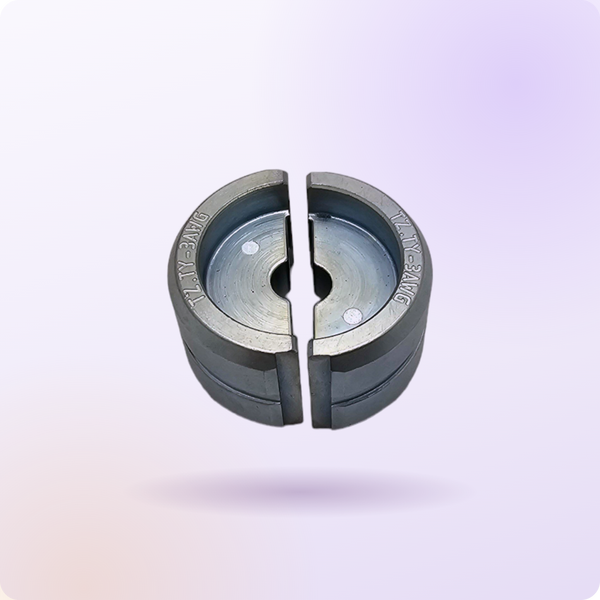

Heat-treated steel 12-ton U-type nest and indentor dies, laser-marked with the die index and painted with the standard color code, so the die you pick up matches the lug in your hand. They fit any 12-ton U-die crimper: Conversions Tech ProCrimp12T, PRO6000 and PowerProFlex12T, Burndy Y35, Y39 and Y46, Greenlee HKL1232, Thomas and Betts TBM series. Buy the sizes your crews use or the 19-piece kit from 8 AWG to 1000 kcmil in a case.
| Conductor | Die index | Color | Part |
|---|---|---|---|

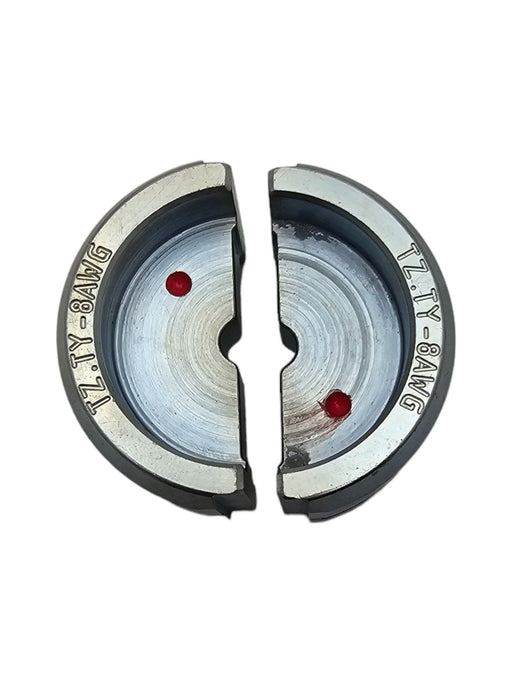

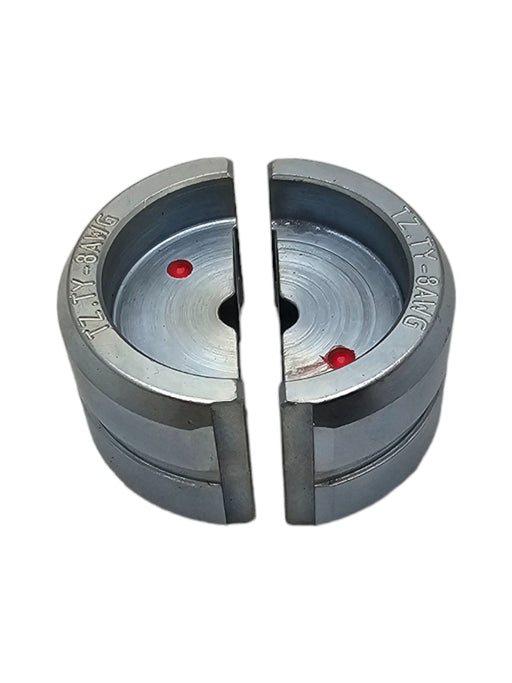

| 8 AWG | 21 | Red | CTTY-8AWG |

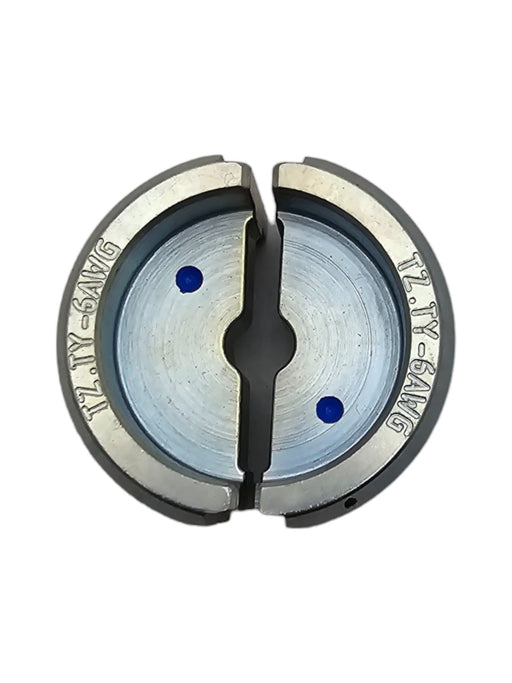

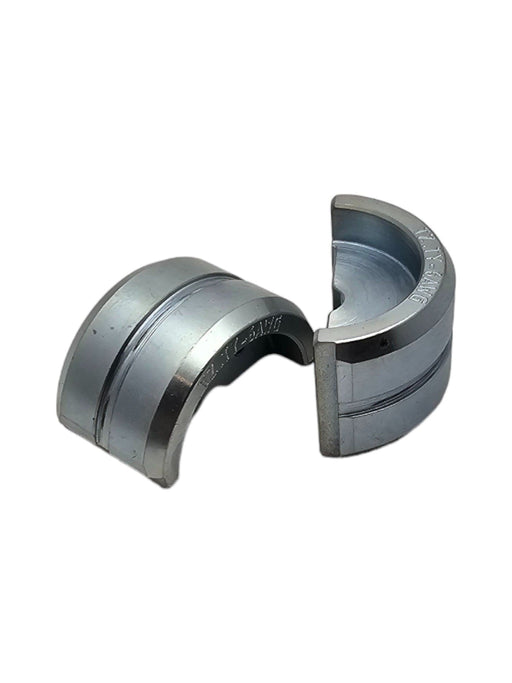

| 6 AWG | 24 | Blue | CTTY-6AWG |

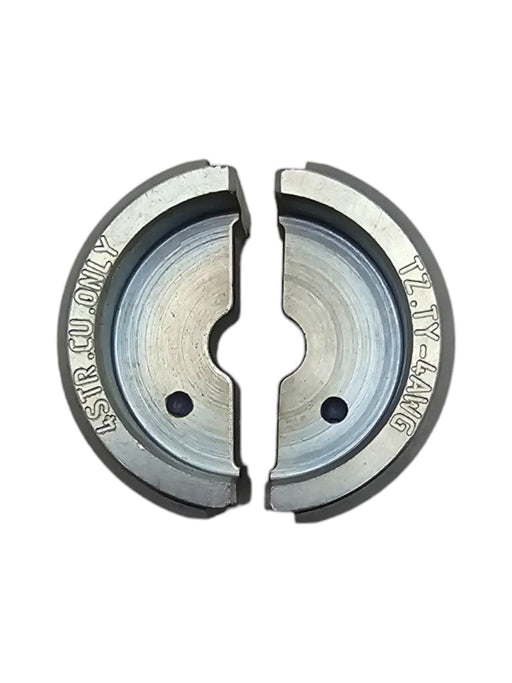

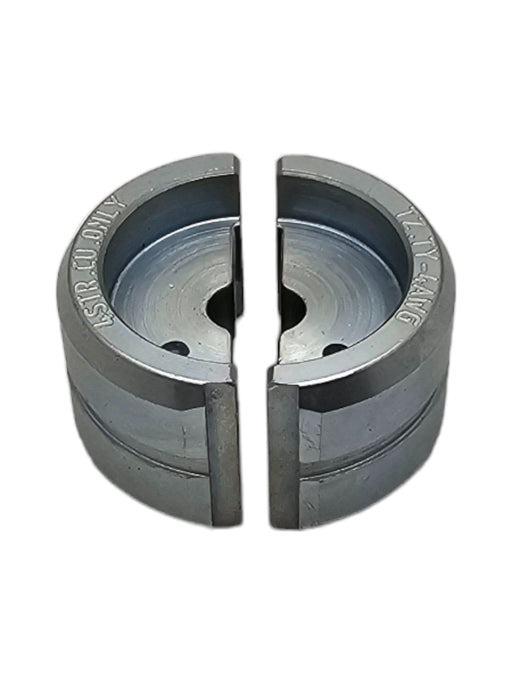

| 4 AWG | 29 | Gray | CTTY-4AWG |

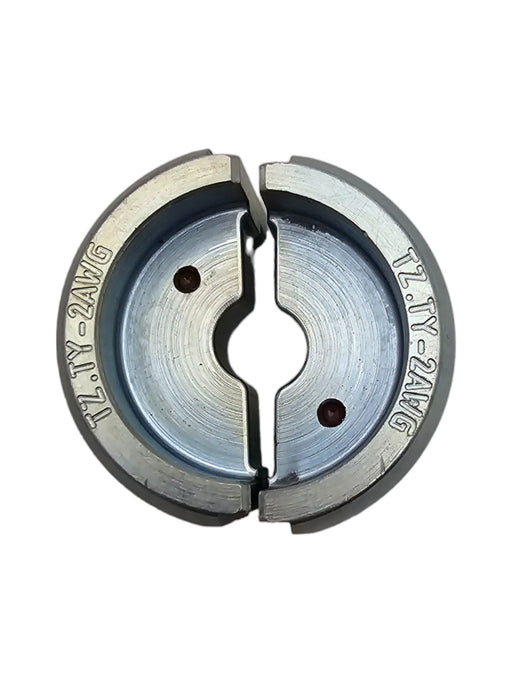

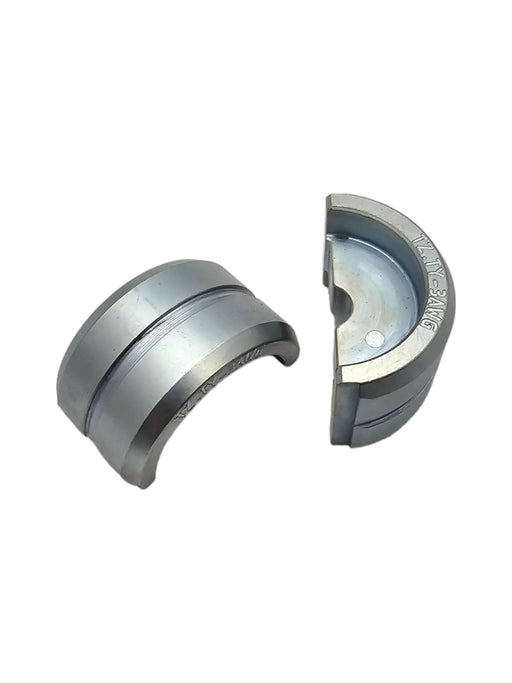

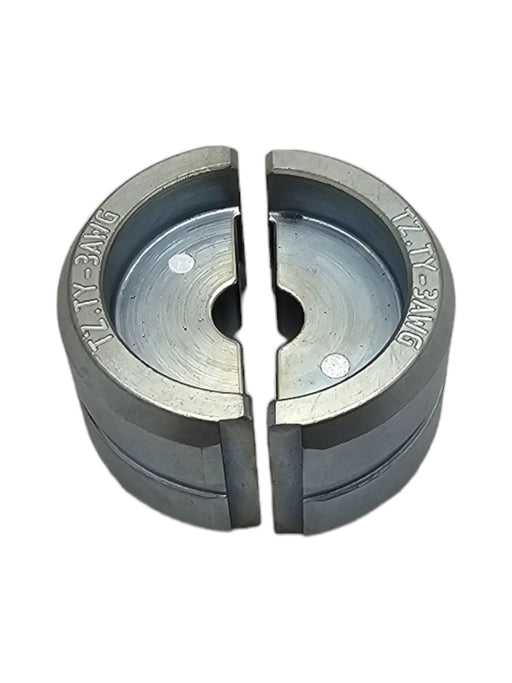

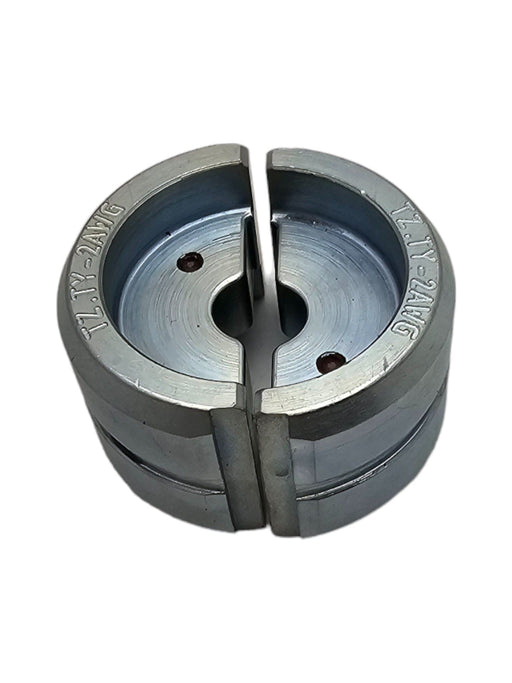

| 3 and 2 AWG | 33 | Brown | CTTY-3AWG, CTTY-2AWG |
| 1 AWG | 37 | Green | CTTY-1AWG |
| 1/0 AWG | 42 | Pink | CTTY-10AWG |

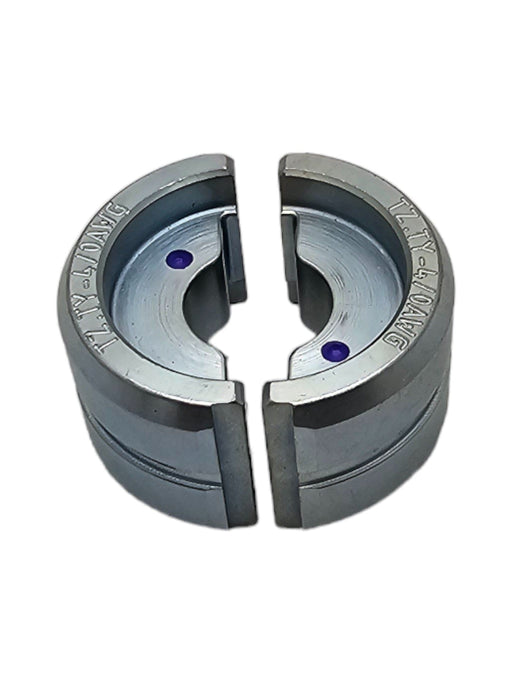

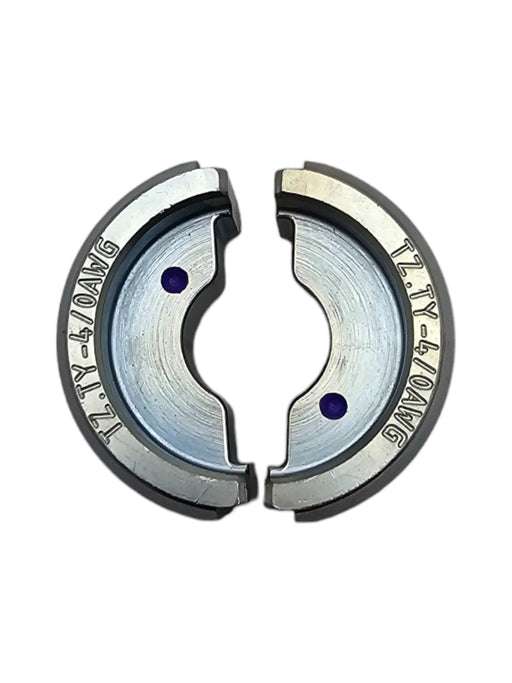

| 4/0 AWG | 54 | Purple | CTTY-40AWG |

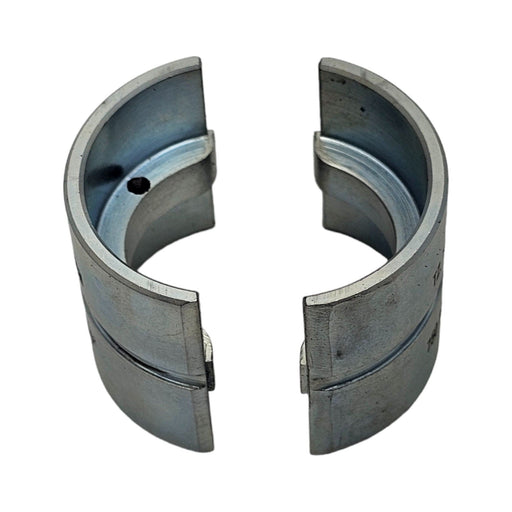

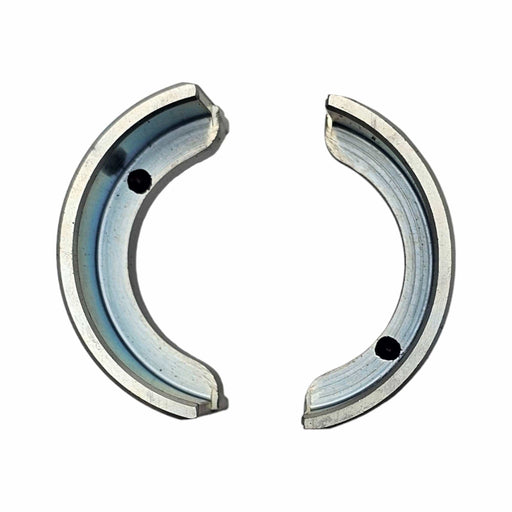

| 750 kcmil | 99 | Black | CTTY-750 |
| 8 AWG to 1000 kcmil, 19 dies | 21 to 115 | all | CTCDIEKIT |
Full index and color table, crimps per barrel and the crimp sequence: compression lug die chart. Tools: 12-ton crimpers from $449. Lugs: compression lugs. Contractor pricing.
