EMT Straps and Hangers

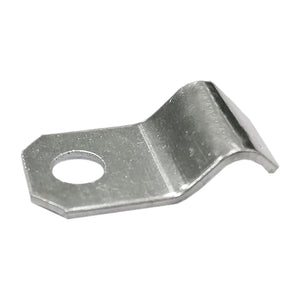

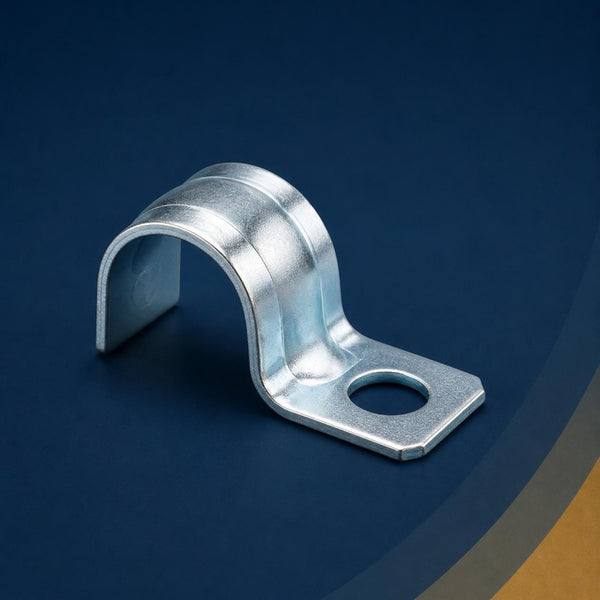

EMT and rigid straps, conduit hangers, and strut clamps, 1/2" through 2-1/2" — electro-galvanized one-hole EMT straps (cross RACO 2082–2088), one- and two-hole rigid straps (RACO 1332/1333 class), malleable-iron rigid straps, conduit hangers with carriage bolt and nut for all-thread and strut, and midget straps for 1/4" tubing. Same-day shipping by 2PM ET; box quantities.
The rule (NEC 358.30): EMT fastened within 3 ft of every box, cabinet, or fitting and at intervals not over 10 ft; rigid and IMC intervals scale with size (10 ft at 1/2"–3/4" up to 20 ft at 3"). One-hole straps are the default on walls and framing; two-hole straps where the strap resists rotation on heavy or vertical runs and on masonry; hangers with bolt and nut for runs suspended on all-thread or strut. EMT and rigid straps are sized to different outside diameters — a rigid strap is loose on EMT. Full guide: EMT Support Spacing: NEC 358.30, Straps, Hangers, Strut.
Cross-reference
| Family | CT series | RACO |
|---|---|---|

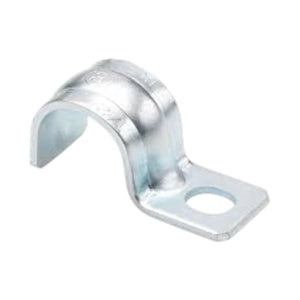

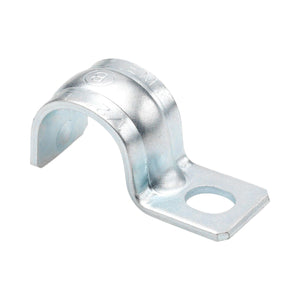

| One-hole EMT strap, electro-galvanized | OSP-050 … OSP-200 | 2082 (1/2"), 2083, 2084, 2085, 2086, 2088 (2") |

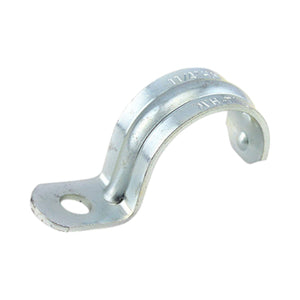

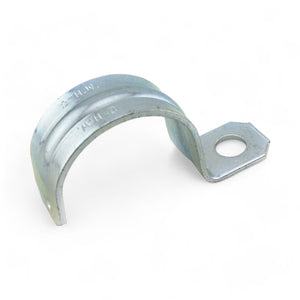

| One-hole rigid strap, electro-galvanized | OSP-050R … OSP-200R | 1332 (1/2"), 1333 (3/4") … |

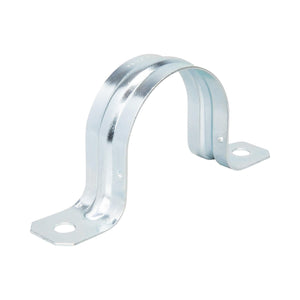

| Two-hole rigid strap | TSP-125R … TSP-250R | 1342 class |

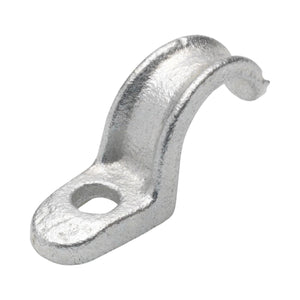

| One-hole rigid strap, malleable iron | MST-075 | — |

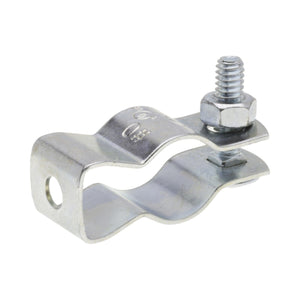

| Conduit hanger with bolt & nut | CH-050 … CH-200 | 2052 class |
