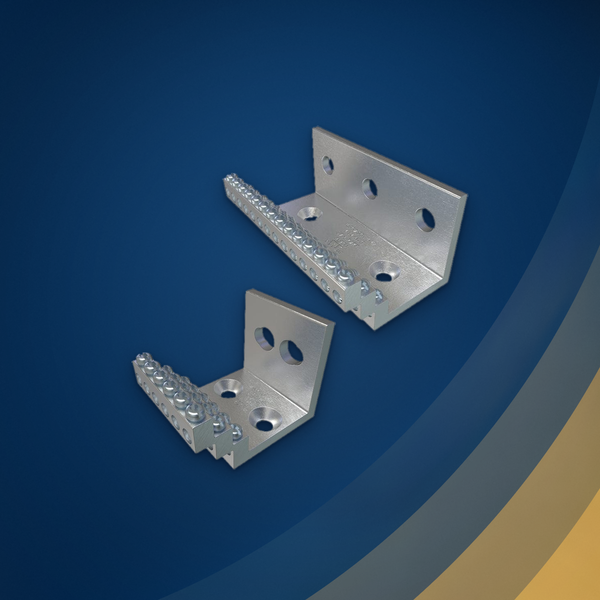

Solar Grounding: Combiner Bars 18–42 Strings, Bonding Clips

Dual-rated aluminum combiner bars from 18 to 42 strings with a 4-14 AWG main and per-string terminals, plus frame bonding clips and screw lugs for panel-to-rail grounding. NEC 690.43 equipment grounding and 690.47 electrode requirements are covered by the same hardware used on the grounding and bonding wall: irreversible compression, ground rods, and clamps. Solar and EV installer supply guide · All solar →

10 products

Clear all

Conversions Tech Cable Insulated Terminal Copper Screw Lugs Solar Panel Earthing Clamps Solar Grounding Clips

Solar Panel Grounding Clips and Lugs | Frame Bonding Screw Lugs, WEEB-Style, Each | DS-SOL-GCLIP

$1.43

Conversions Technology Aluminum Solar Combiner | Dual Rated | Main Conductor Range 4-14 | 18 Strings

Aluminum Solar Combiner Bar, 39 Strings | Dual-Rated AL9CU, Main 4-14 AWG | 880-18039

$27.31

Aluminum Solar Combiner Bar, 24 Strings | Dual-Rated AL9CU, Main 4-14 AWG | 880-18024

$16.80

Aluminum Solar Combiner Bar, 42 Strings | Dual-Rated AL9CU, Main 4-14 AWG | 880-18042

$29.51

Aluminum Solar Combiner Bar, 18 Strings | Dual-Rated AL9CU, Main 4-14 AWG | 880-18018

$13.05

Aluminum Solar Combiner Bar, 33 Strings | Dual-Rated AL9CU, Main 4-14 AWG | 880-18033

$23.17

Aluminum Solar Combiner Bar, 30 Strings | Dual-Rated AL9CU, Main 4-14 AWG | 880-18030

$21.26

Aluminum Solar Combiner Bar, 27 Strings | Dual-Rated AL9CU, Main 4-14 AWG | 880-18027

$19.03

Aluminum Solar Combiner Bar, 36 Strings | Dual-Rated AL9CU, Main 4-14 AWG | 880-18036

$25.15

Aluminum Solar Combiner Bar, 21 Strings | Dual-Rated AL9CU, Main 4-14 AWG | 880-18021

$14.84

Solar Grounding & Combiner Bars | AL9CU, WEEB-Style Clips
