PV Wire & MC4 Jumper Cables | Stock 3 ft, Custom 5–100 ft, 10 AWG UL 4703

MC4 jumpers in the length the run actually needs.

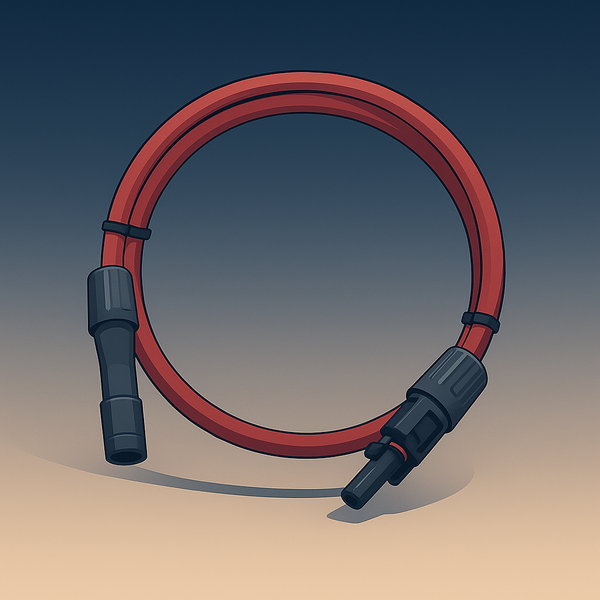

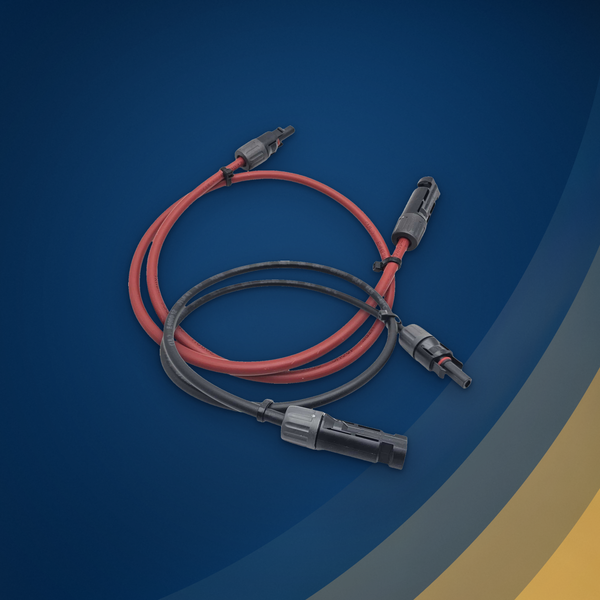

Stock 3 ft MC4 male-to-female jumpers in red and black, made-to-length MC4 extensions from 5 to 100 ft, single-ended MC4-to-bare-wire leads for charge controllers and disconnects, and PV1-F cable by the meter for field terminations. All on 10 AWG tinned copper UL 4703 PV wire, XLPE, 1500 V DC, 30 A, sunlight and direct-burial rated. Custom lengths are crimped and pull-tested in our US facility and ship the same day on orders before 2 PM PT. Build a custom solar jumper · MC4 connectors and branch adapters · All solar →

Sizing the run

10 AWG carries a 30 A string with under 2 percent drop to about 60 ft one-way at 48 V nominal; past that, or on 12 V RV systems over 25 ft, step to 8 AWG (available on request). Order one red and one black per string, and add 10 percent to the measured path for drip loops and combiner entry. Voltage drop calculator · PV wire gauge guide · Why not to mix MC4 brands (NEC 690.33)
