6 AWG PV Wire Lead with Compression Lugs, Custom 1–50 ft | Lug Both Ends, 1/4, 5/16 or 3/8 in Stud, UL 4703, Red or Black | 4906-CUSTOM
Shipping calculated at checkout
SKU: 4906-L001-R-14
In stock

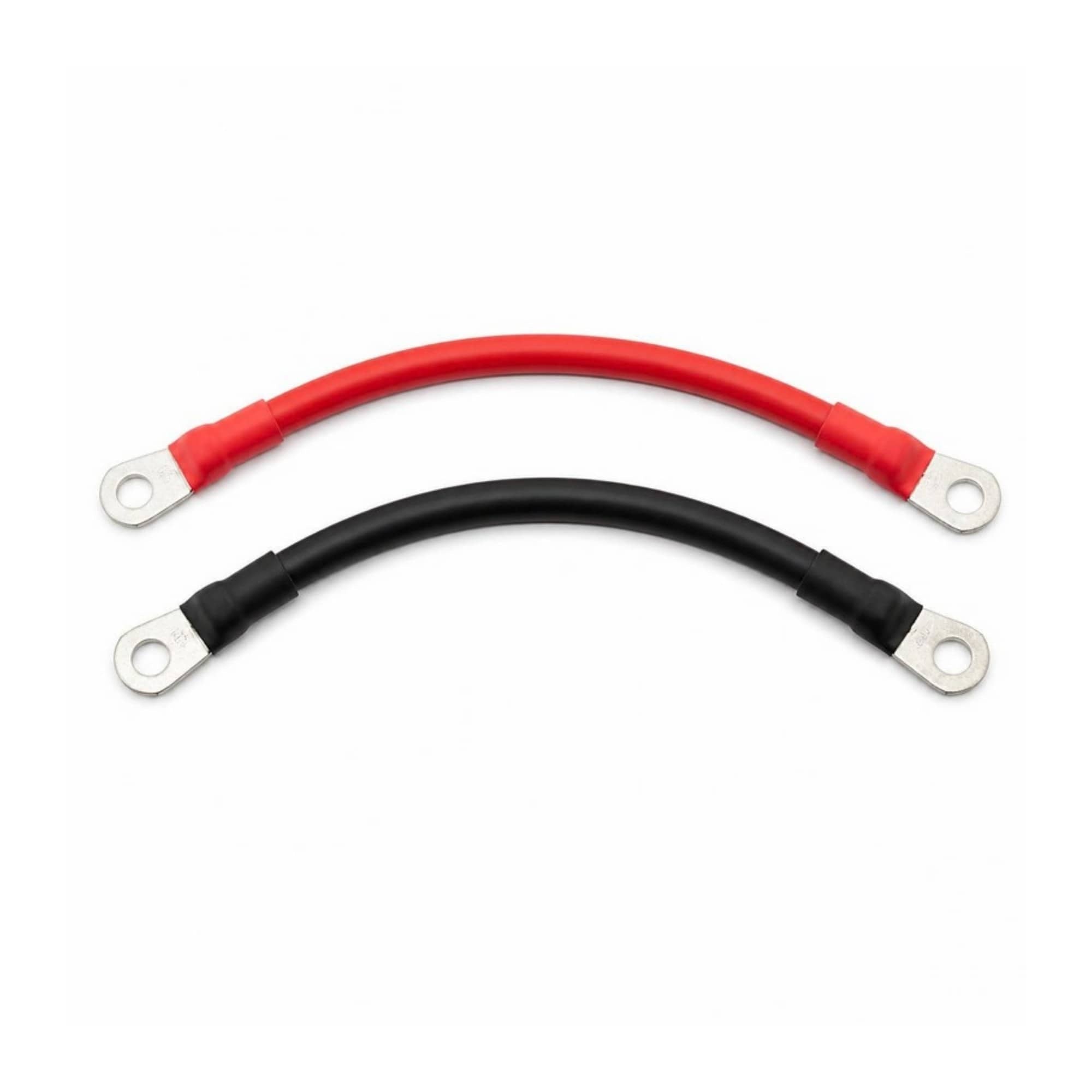

6 AWG PV wire lead with compression lugs, cut to length. Made-to-length power leads on 6 AWG copper UL 4703 PV wire, terminated both ends with Conversions Tech tin-plated copper compression lugs and heat shrink. Built for higher-current DC runs: combiner outputs, inverter DC inputs, battery bank interconnects, busbar jumpers and grounding, where a factory crimp beats a field-crimped lug. Every lead is cut, crimped with a die-indexed hydraulic tool and pull-tested, then cut and assembled to order in Oxnard, CA, with same-day shipping on orders placed before 2 PM PT.
Specifications
| Spec | Value |
|---|---|
| Conductor | 6 AWG stranded copper |
| Cable listing | UL 4703 PV wire, USE-2, RHH/RHW-2, 2000 V, XLPE insulation, sunlight resistant |
| Conductor resistance | 0.491 Ω per 1,000 ft (NEC Ch. 9 Table 8, uncoated stranded) |
| Terminations | One-hole standard barrel tin-plated copper compression lugs, 6 AWG, both ends (CT 210-98004 / 98005 series) |
| Crimp | Die index 24 (blue), hydraulic crimped, pull-tested |
| Stud size | 1/4 in, 5/16 in or 3/8 in, same both ends |
| Finish | Heat shrink over each lug barrel, red or black to match jacket |
| Lengths | 1, 2, 3, 5, 10, 15, 25, 50 ft; other lengths cut to the inch on request |
| Colors | Red or black |
| Part numbers | 4906-L{length}-{R/B}-{stud}, e.g. 4906-L001-R-14 = 1 ft, red, 1/4 in stud |
Custom builds and volume: different stud size on each end, two-hole or long-barrel lugs, lug on one end and bare wire on the other, any length cut to the inch, labeled or kitted sets, and PO/net terms on approved trade accounts. Send a cut list to 307-206-0534 or through the trade application.
Related: 8 AWG custom leads · 10 AWG MC4 extension cables · lug applications guide. Conversions Tech stocks 2,100+ products with same-day shipping.
