8 AWG PV Wire Lead with Compression Lugs, Custom 1–50 ft | Lug Both Ends, 1/4, 5/16 or 3/8 in Stud, UL 4703, Red or Black | 4908-CUSTOM

Sale price $9.95

Shipping calculated at checkout

🛡 Trade Pricing Program Contractors, wholesalers & distributors save 15–30% Apply — 60 seconds Sign In

SKU: 4908-L001-R-14

Length
Color: Red
Stud

In stock

Shop with confidence

  • Same-day shipping on in-stock items · Ships from Oxnard, CA
  • UL / CSA listed products
  • Net 30-60 terms available
  • Engineering desk support
  • Ach Direct Debit
  • American Express
  • Diners Club
  • Discover
  • Mastercard
  • PayPal
  • USDC
  • Visa

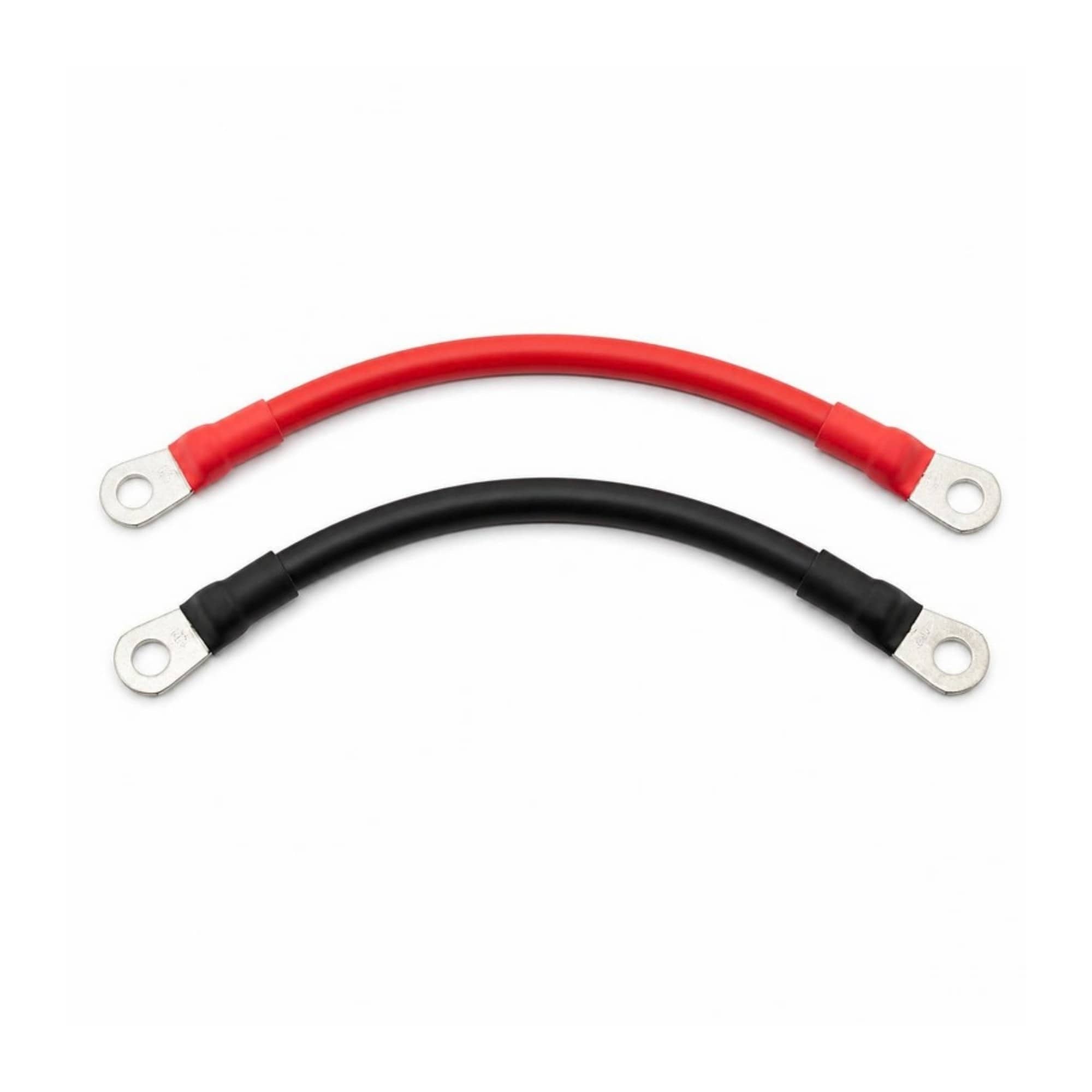

8 AWG PV wire lead with compression lugs, cut to length. Made-to-length power leads on 8 AWG copper UL 4703 PV wire, terminated both ends with Conversions Tech tin-plated copper compression lugs and heat shrink. Built for combiner-to-inverter DC runs, charge controller and battery bank connections, busbar jumpers and equipment grounding, where a factory crimp beats a field-crimped lug. Every lead is cut, crimped with a die-indexed hydraulic tool and pull-tested, then cut and assembled to order in Oxnard, CA, with same-day shipping on orders placed before 2 PM PT.

Specifications

Spec Value
Conductor 8 AWG stranded copper
Cable listing UL 4703 PV wire, USE-2, RHH/RHW-2, 2000 V, XLPE insulation, sunlight resistant
Conductor resistance 0.778 Ω per 1,000 ft (NEC Ch. 9 Table 8, uncoated stranded)
Terminations One-hole standard barrel tin-plated copper compression lugs, 8 AWG, both ends (CT 210-98002 series)
Crimp Die index 21 (red), hydraulic crimped, pull-tested
Stud size 1/4 in, 5/16 in or 3/8 in, same both ends
Finish Heat shrink over each lug barrel, red or black to match jacket
Lengths 1, 2, 3, 5, 10, 15, 25, 50 ft; other lengths cut to the inch on request
Colors Red or black
Part numbers 4908-L{length}-{R/B}-{stud}, e.g. 4908-L001-R-14 = 1 ft, red, 1/4 in stud

Custom builds and volume: different stud size on each end, two-hole or long-barrel lugs, lug on one end and MC4 or bare wire on the other, any length cut to the inch, labeled or kitted sets, and PO/net terms on approved trade accounts. Send a cut list to 307-206-0534 or through the trade application.
