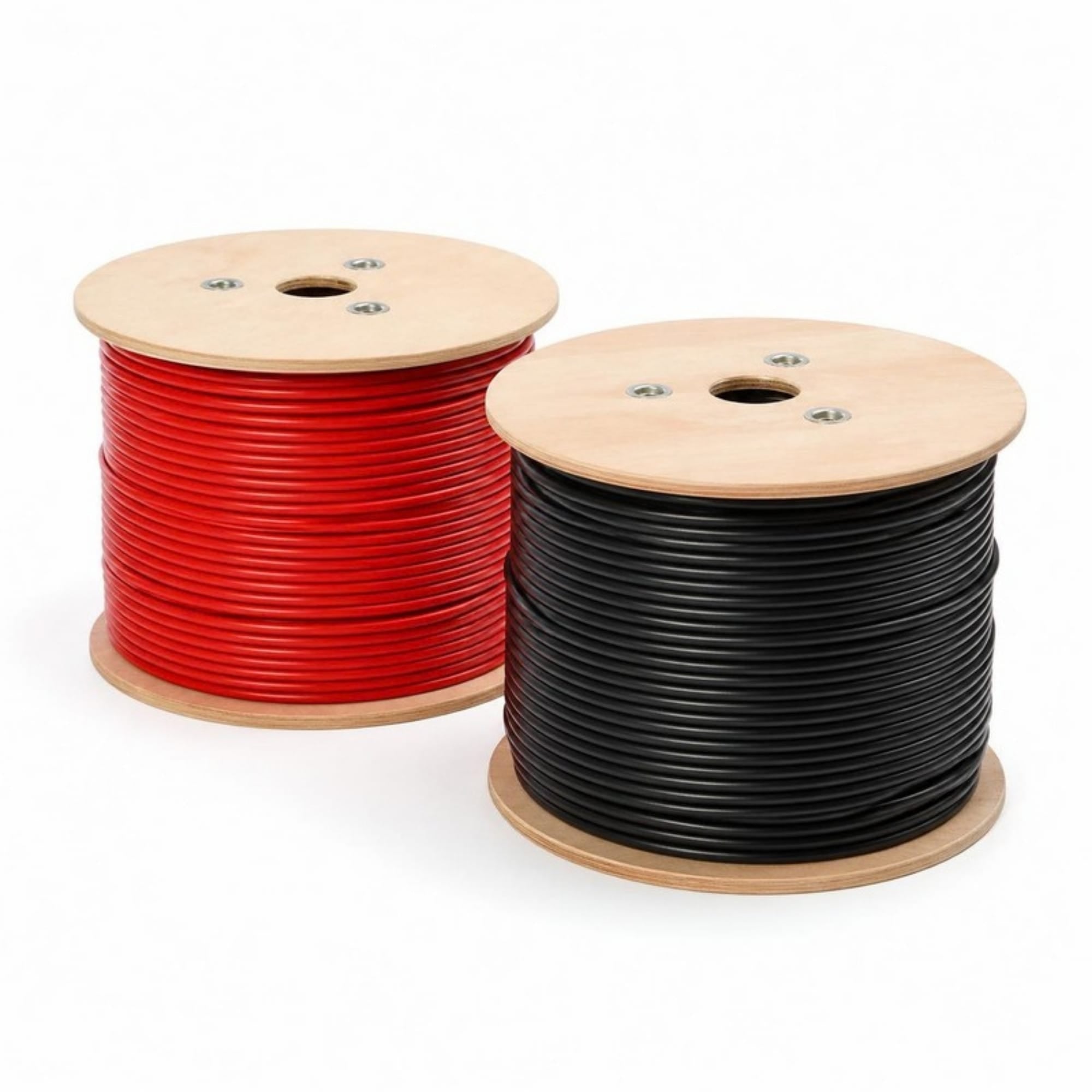

8 AWG PV Wire Spool, 500 ft or 1000 ft | UL 4703, 2000V, Tinned Copper, Red or Black
Shipping calculated at checkout
SKU: PVW-08-0500-R
In stock
Open here
8 AWG PV wire on 500 ft and 1000 ft spools, UL 4703 listed, rated 2000 V, with tinned copper conductor. Single conductor photovoltaic wire for long home runs where voltage drop matters, combiner outputs and higher current DC circuits. Sold in red and black so you can keep polarity straight from the module to the combiner.
Specifications
| Listing | UL 4703 PV Wire, VW-1 flame test |
|---|---|
| Conductor | 8 AWG tinned annealed copper, Class 5 fine stranded |
| Insulation | Cross linked polyolefin (XLPO), sunlight resistant |
| Voltage rating | 2000 V (also suitable for 1000 V and 1500 V DC systems) |
| Temperature | 90 °C wet or dry, rated to −40 °C |
| Installation | Direct burial, exposed outdoor, conduit and cable tray where permitted by NEC 690.31 |
| Nominal OD | 8.1 mm (0.319 in) |
| Cable weight | About 84.7 lb per 1000 ft (126 kg/km) |
| Ampacity | 55 A, NEC Table 310.16 90 °C copper column, before correction and adjustment |
| Put up | 500 ft or 1000 ft on a wood reel |
| Colors | Red (positive), black (negative) |
Where it fits
Use 8 AWG for long home runs where voltage drop matters, combiner outputs and higher current DC circuits. Size every circuit to NEC 690.8 for the module Isc, then check voltage drop on long runs. Not sure which gauge you need? Read the PV wire size guide for 12, 10, 8 and 6 AWG. Also stocked as 10 AWG PV wire spools. Need it lugged? See factory lugged 8 AWG PV leads.
Rather skip the field crimping?
We build the same wire into custom MC4 jumpers, PV home runs and lugged leads cut to your string layout, with your choice of Conversions Tech MC4 or Stäubli MC4 connectors. See how to spec custom jumpers for a solar farm and the solar farm electrical hardware guide.
Project and reel quantities
Pricing for multiple reels, cut lengths and longer put ups is available on request. Email CS@conversionstech.com or call (307) 206-0534. Approved trade accounts get project pricing and net terms.
Lead time: typically 2 to 3 weeks from order. Call for current stock.
