EMT Coupling
EMT and rigid couplings, 1/2" through 3" — EMT set-screw (zinc die-cast; cross RACO 2022–2028, Bridgeport 240–245-DC), EMT compression (steel; RACO 2922–2928), rigid threaded couplings (steel, NPT), rigid threadless compression couplings (RTC series, UL), and EMT-to-flex combination couplings. UL 514B. Same-day shipping by 2PM ET.
Buy by raceway first. EMT and rigid have different outside diameters at the same trade size, so EMT couplings will not fit rigid and rigid couplings will not seal on EMT. Rigid threaded couplings need threaded pipe; rigid threadless compression couplings join unthreaded rigid or IMC where you can't thread or turn the pipe (NEC 344.42(B)). For EMT: set-screw indoors, compression in concrete or exposed, raintight compression in wet locations (358.42). Full explanation: Rigid vs EMT Couplings.
Cross-reference
| Family | CT series | RACO | Bridgeport |
|---|---|---|---|

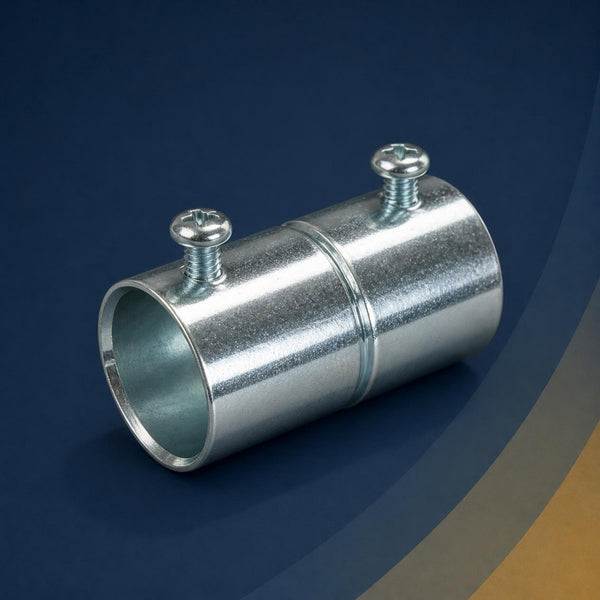

| EMT set-screw coupling, die-cast | 3109 | 2022, 2023, 2024, 2025, 2026, 2028 | 240-DC, 241-DC, 242-DC, 243-DC, 244-DC, 245-DC |

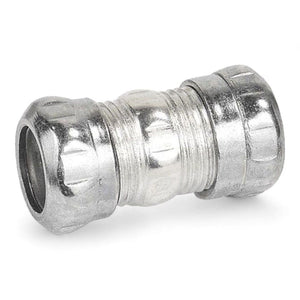

| EMT compression coupling, steel | 3105 | 2922, 2923, 2924, 2925, 2926, 2928 | 260-S class |

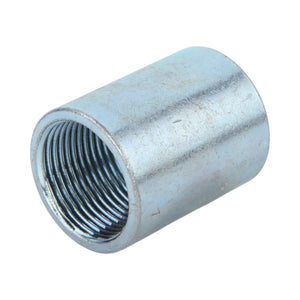

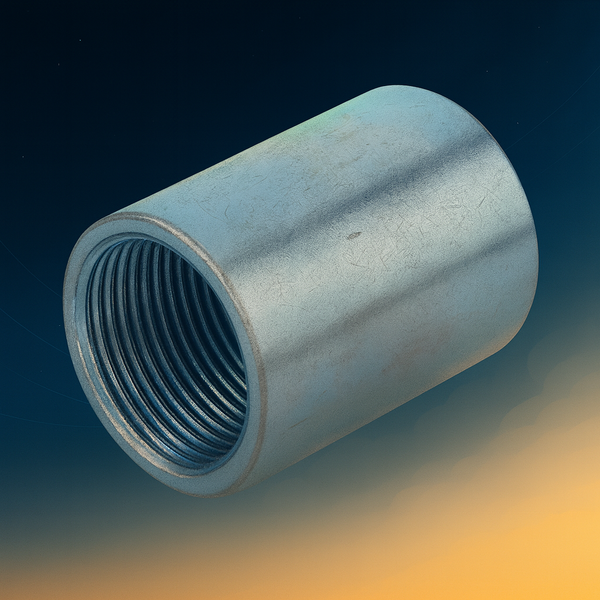

| Rigid threaded coupling, steel | 0324–0331 | 1122–1132 class | — |

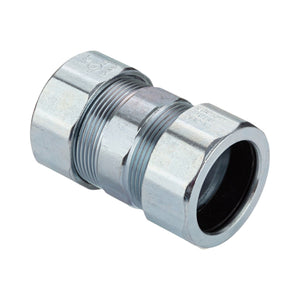

| Rigid threadless compression coupling | RTC-50 … RTC-200 | 1802–1808 class | — |

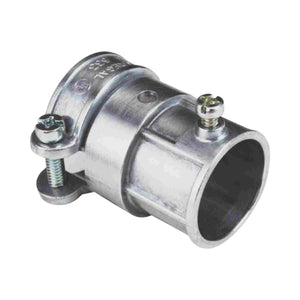

| EMT-to-flex combination coupling | ESC-075 / ESC-100 | — | 282-DC class |
Exact numbers are on each product page; "class" entries are family-level pending verification. Contractor & distributor pricing →
