1-1/4 in. EMT Set-Screw Coupling, Die-Cast Zinc | UL 514B | 3109-0114
Shipping calculated at checkout
SKU: 3109-0114
100 in stock
Open here
Goes with
CT 3109-0114 — 1-1/4" emt set-screw coupling, zinc die-cast. For EMT trade size 1-1/4 (OD 1.510"). UL 514B; concrete-tight; dry and damp locations.
| Part No. | 3109-0114 |
|---|---|
| Trade size | 1-1/4 in — fits OD 1.510 in |
| Raceway | EMT |
| Material / finish | Zinc die-cast |
| Listing | UL 514B; concrete-tight; dry and damp locations |
| Package | Sold each; box quantities priced through the trade desk |
Cross-Reference: 3109-0114
| Brand | Part Number | Notes |
|---|---|---|
| RACO | 2625 | Same trade size and fitting type |
| Bridgeport | 243-DC | Same trade size and fitting type |
| Conversions Tech | 3109-0114 | Stocked; same-day shipping on in-stock items |
Crosses match trade size, fitting type and listing class. Verify fit against the manufacturer data sheet for your application. Trademarks belong to their owners. Look up any competitor number on the cross-reference hub.
Where it's used

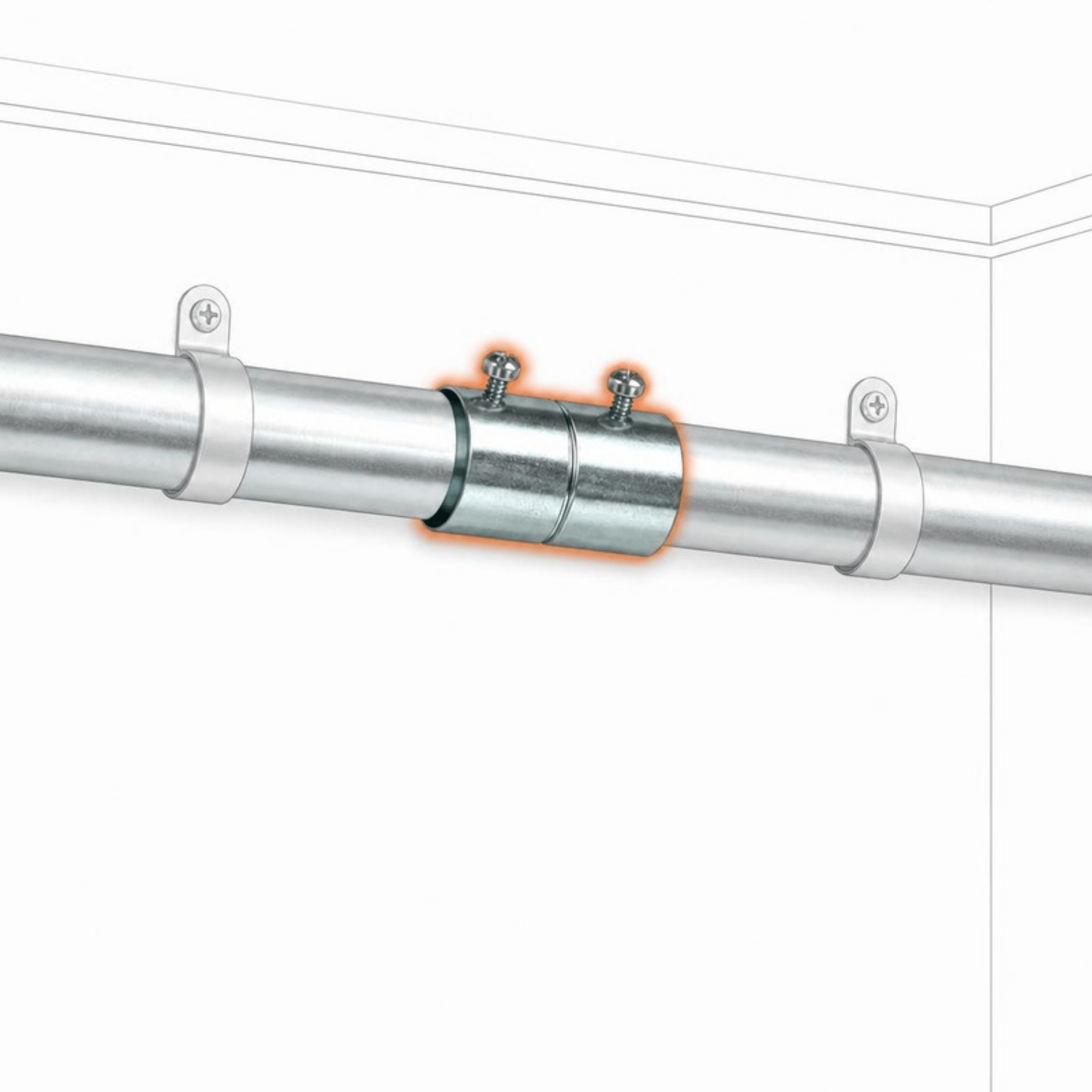

- Joining EMT lengths on indoor runs
- Above-ceiling and in-wall branch circuits
- Concrete pours where marked concrete-tight
How to install
Tubes bottomed at the center stop, set screws tightened until they bite. Made-up-tight couplings are part of the equipment grounding path (NEC 250.118). Guide: Rigid vs EMT Couplings.
Complete the run — 1-1/4 in.
Connector · Locknut · Bushing · Grounding bushing · One-hole strap · Hanger
