EMT Locknuts, Bushings & Grounding Bushings

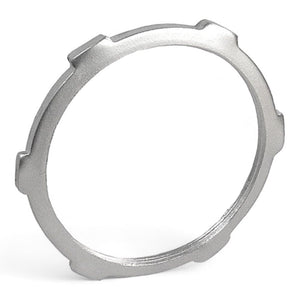

Locknuts, conduit bushings, and insulated grounding bushings, 1/2" through 2" — zinc-plated steel locknuts (cross RACO 1002–1008, Bridgeport 101-S–106-S), steel conduit bushings, and zinc die-cast insulated grounding bushings with 150°C throat and lay-in lug (cross Bridgeport 381–386-DC, Arlington 450–455, O-Z/Gedney IBC-L, Appleton GIB-L). UL 514B. Same-day shipping on in-stock items.
What each does: the locknut holds the connector or nipple to the enclosure — its teeth must bite bare metal, wrench-tight. The bushing threads on inside and rounds the raceway edge to protect conductors; NEC 300.4(G) requires an insulating bushing or fitting for 4 AWG and larger. The grounding bushing adds a lay-in lug so the raceway can be bonded with a jumper where a locknut alone is not accepted: every metal raceway at service equipment (250.92(B)) and raceways in concentric or eccentric knockouts on circuits over 250 V to ground (250.97). Code detail: Grounding Accessories and the NEC.
Cross-reference
| Size | Locknut (CT 3111) | RACO | Bridgeport | Grounding bushing (CT 3114) | Bridgeport / Arlington |
|---|---|---|---|---|---|
| 1/2" | 3111-0012 | 1002 | 101-S | 3114-0012 | 381-DC / 450 |
| 3/4" | 3111-0034 | 1003 | 102-S | 3114-0034 | 382-DC / 451 |
| 1" | 3111-0001 | 1004 | 103-S | 3114-0001 | 383-DC / 452 |
| 1-1/4" | 3111-0114 | 1005 | 104-S | 3114-0114 | 384-DC / 453 |
| 1-1/2" | 3111-0112 | 1006 | 105-S | 3114-0112 | 385-DC / 454 |
| 2" | 3111-0002 | 1008 | 106-S | 3114-0002 | 386-DC / 455 |
