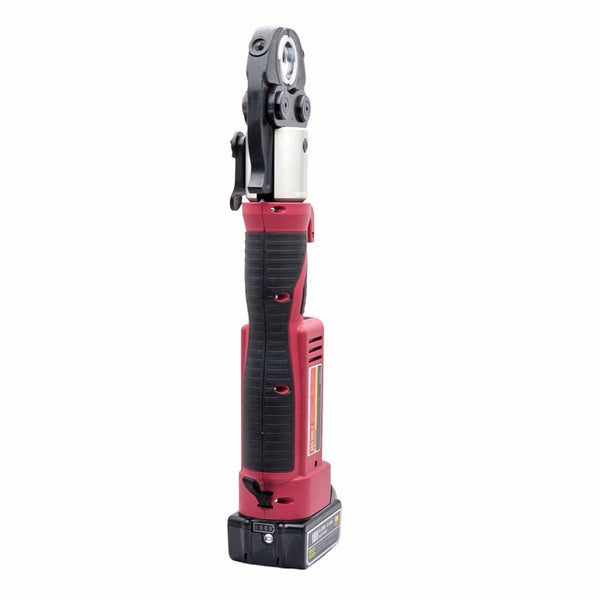

Hydraulic Crimping Tools | 12-Ton Manual, 12-Ton Battery, Battery Crimper and Cutter, 8 AWG to 750 kcmil, Dies and Kits
12-ton crimpers that use the same dies as the tool you already own, at a third of the price.
Three hydraulic crimpers for compression lugs from 8 AWG to 750 kcmil. All three use industry-standard U-dies with the same die index and color code as Burndy, Thomas and Betts, Panduit and Greenlee, so the crimp on a Conversions Tech lug is the listed crimp, and any 12-ton U-die you already have fits. Each ships complete: dies, case, and two 18 V batteries with a charger on the powered tools. One-year warranty, parts stocked in the US, same-day shipping.
| ProCrimp12T | PRO6000 | PowerProFlex12T | |
|---|---|---|---|
| Drive | Manual hydraulic, two-stage pump | 18 V battery | 18 V battery |
| Force | 12 ton | 12 ton crimp, cuts to 1-1/8 in | 12 ton |
| Range | 8 AWG to 750 kcmil Al, 500 kcmil Cu | 6 AWG to 750 kcmil | 8 AWG to 750 kcmil (400 mm2) |
| Head | 360 degree rotating, opens for in-line work | Interchangeable crimp and cutter heads | 360 degree rotating |
| Cycle | About 15 pumps at 4/0 | 4 to 6 seconds | 4 to 6 seconds, 150 crimps per charge at 4/0 |
| Included | 9 U-dies, steel case | Dies, two batteries, charger, case | Dies, two batteries, charger, case |
| For | Service crews, panel shops, truck stock | Solar, battery and EV installers who cut and crimp on every job | Feeder and industrial crews crimping all day |
| Price | $449 | $849 | $1,795 |
| Comparable branded tool | $1,200 to $1,800 | $2,400 and up | $3,800 to $5,500 |
Dies: individual U-dies and full kits, index 5 through 125. Which die for which lug: compression lug die chart. Crews: contractor pricing and a free die kit with a crimper on any first lug order over $500 through the trade program.
