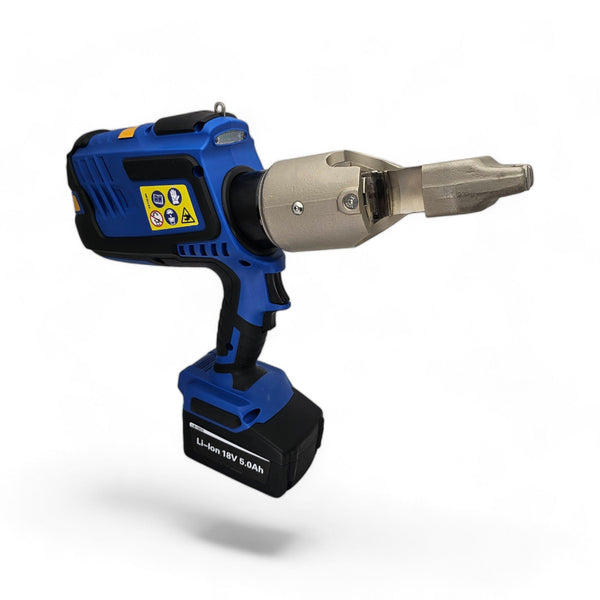

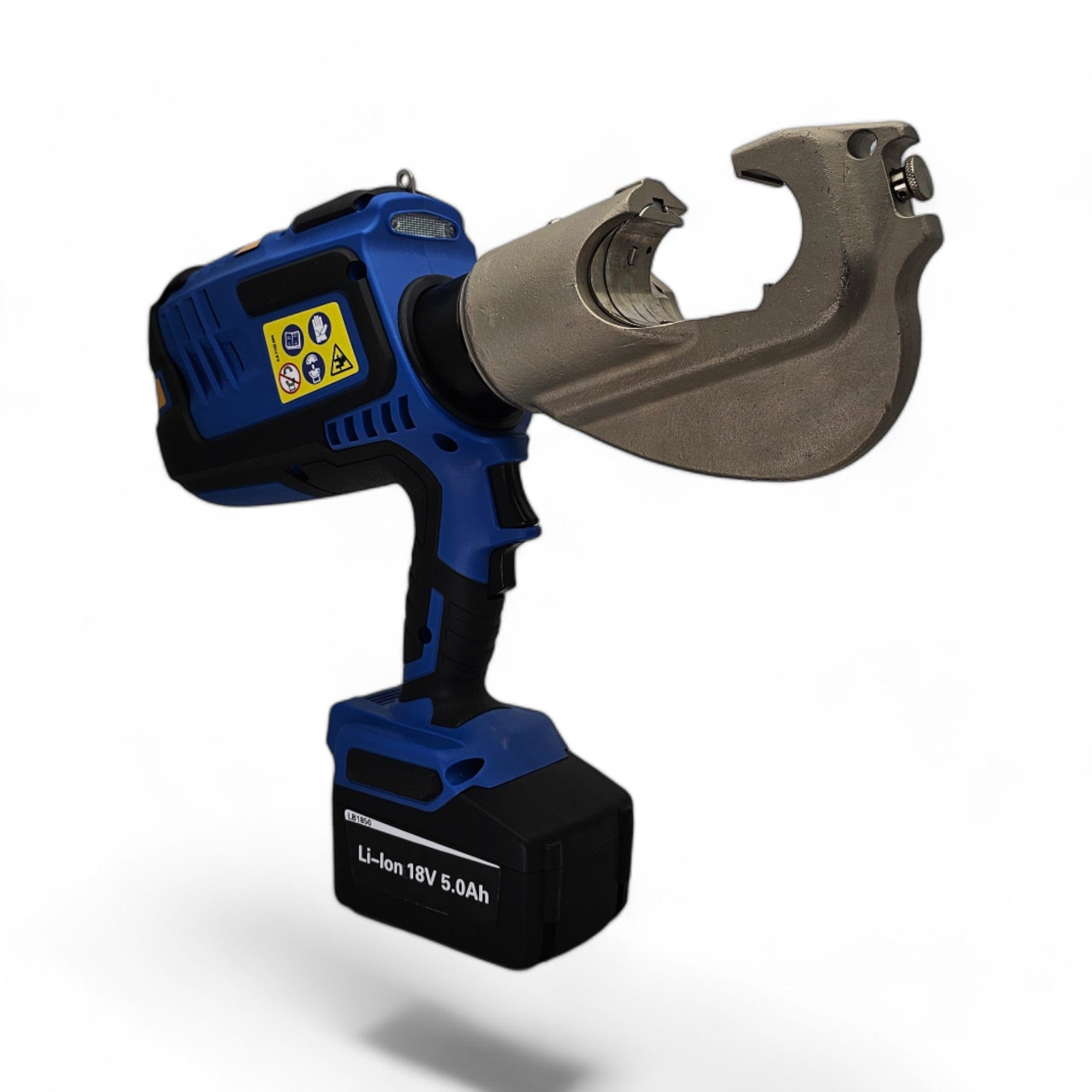

This high-capacity 12-ton hydraulic crimper is specifically engineered for high-strength and precision crimping in challenging environments. Ideal for use in electrical utilities, industrial settings, and telecommunications, it delivers top-tier connectivity and performance.

Technical Specifications

• Crimping Force: 12 tons (130 kN), ensuring secure and durable connections.
• Crimp Head: 360° rotating head for flexible access in any workspace.
• Battery: 5Ah, 18V lithium-ion battery provides extended usage and 500% more work output compared to traditional models.
• System Pressure: 70 MPa for efficient crimping performance.
• Dimensions: Length: 385 mm, Width: 94 mm, Height: 325 mm.
• Crimping Range: Suitable for Cu/Al cable terminals and splicing sleeves up to 400mm².
• Weight: 7.6 kg including battery, designed for easy handling.

Use Cases

• Electrical Utility: Ensures reliable connections for power distribution and transmission.
• Industrial Applications: Perfect for maintaining strong crimps on assembly lines and maintenance tasks.
• Telecommunications: Provides essential support for building robust communication infrastructures.

Key Features

• High Crimping Power: Built to withstand tough environments and ensure long-lasting crimps.
• Versatile Use: Effectively crimps tension sleeves, taps, terminals, and splices.
• Ergonomic Design: Optimized handle and balance to minimize fatigue during extended use.
• Advanced Battery Technology: Enhances operational longevity and reduces downtime.

Important Disclaimer

Note: Dies are not included with your purchase. Conversions Tech provides a full range of dies, from 8 gauge to 1000 MCM.

To purchase individual dies or die kits, please visit www.conversionstechnology.com, or you can reach out to our support team for assistance:

• Phone: Contact the 8005962037
• Email: sales@Conversions Tech.com
