Starlink Gen3 Pass-Through Wall Socket, RJ45 Cat6 Female to Female | IP68 Bulkhead, Weatherproof Cap, 1-1/2 in Cutout, RV, Marine and Off-Grid | CT-SK0110

A sealed bulkhead pass-through for the Starlink Standard (Gen3) waterproof cable. Cut a 1-1/2 in hole in the RV wall, boat bulkhead, van panel or cabin siding, mount the socket, plug the dish cable into the outside and a Cat6 patch cable into the inside, and the run to the router is finished with no cable through a window seal or door gasket. IP68 sealed with a tethered weatherproof cap for when the dish is stowed.

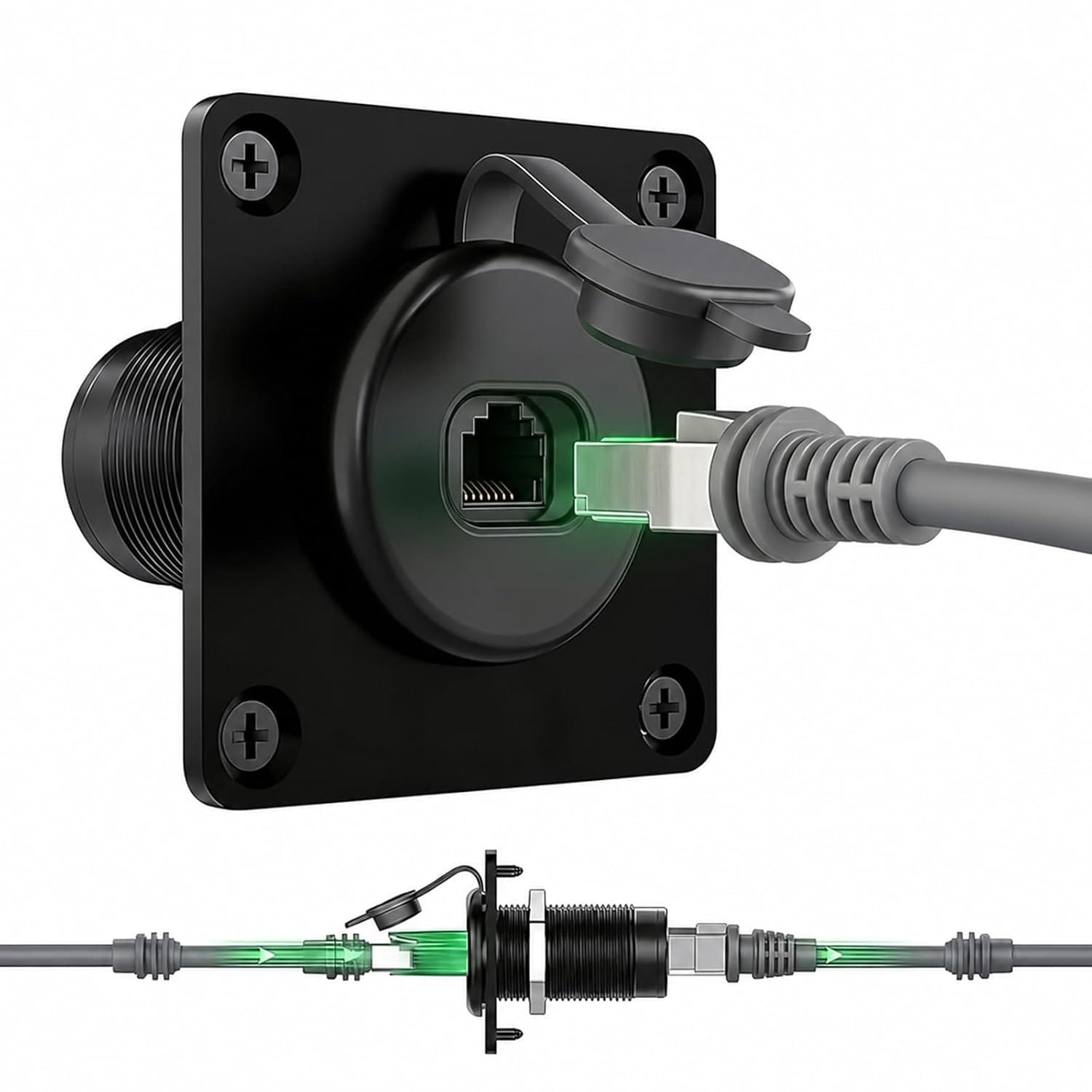

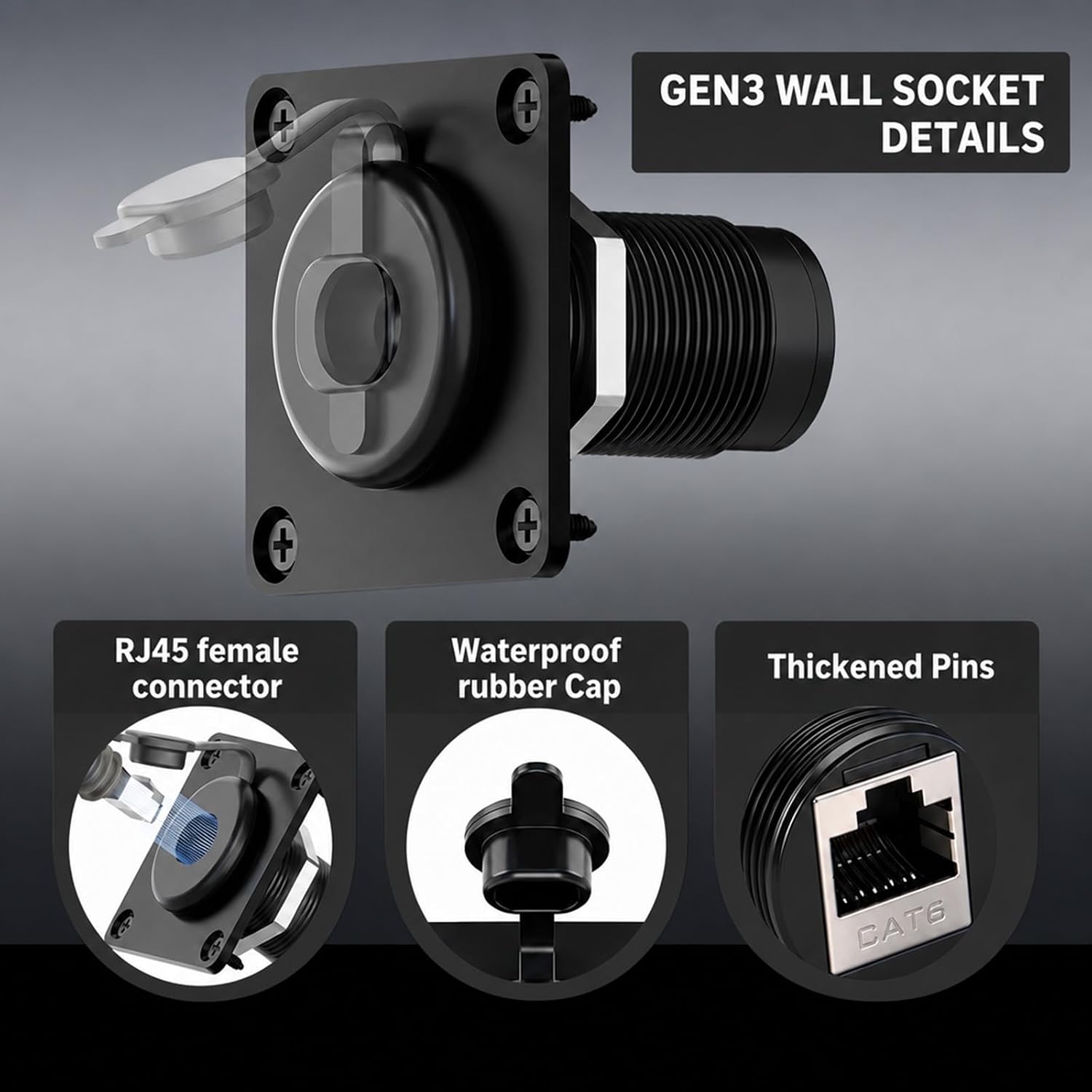

• RJ45 Cat6 female to female bulkhead coupler, gigabit rated, thickened contacts for the Gen3 cable's heavier plug

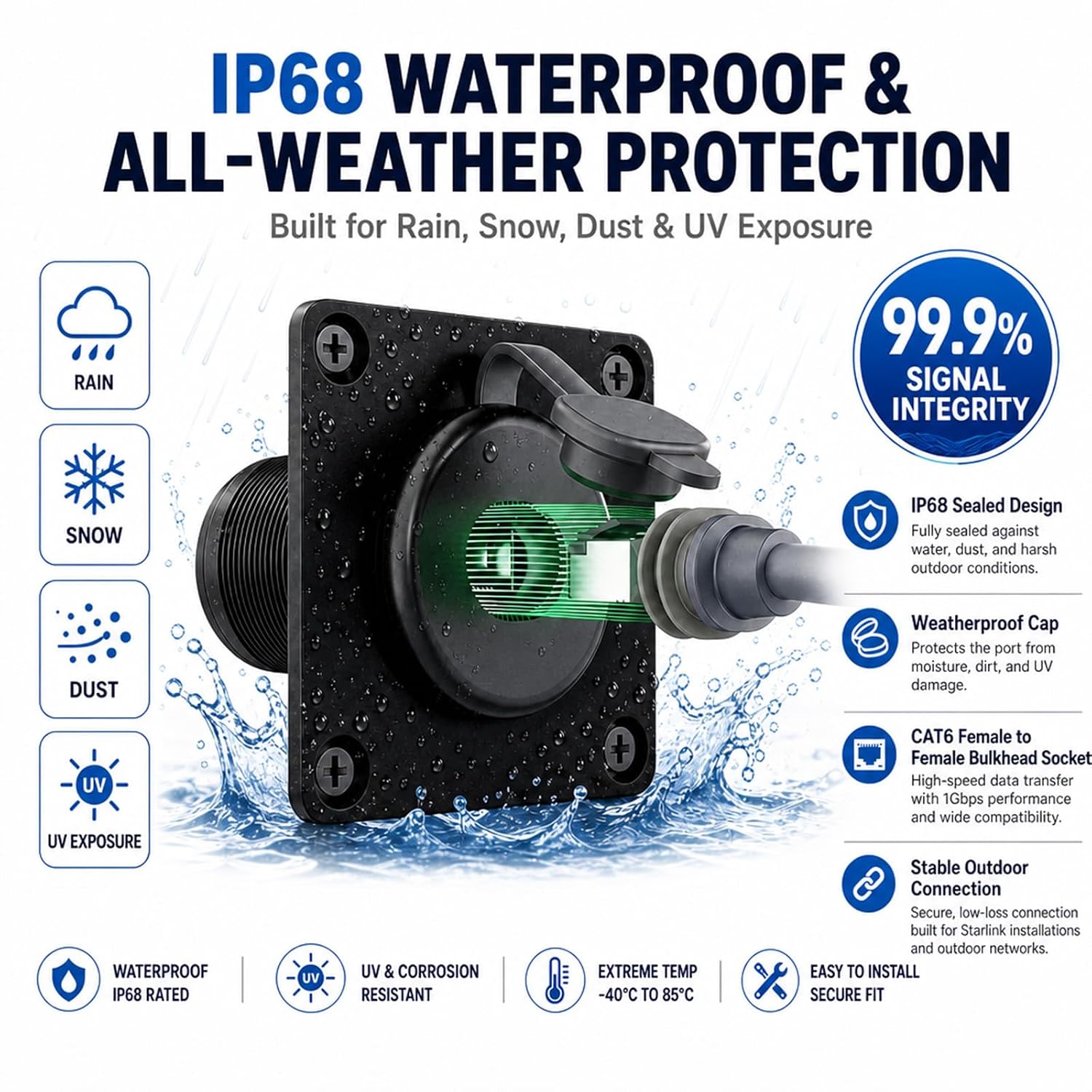

• IP68 sealed body and gasket; UV and corrosion resistant; -40 to 85 C

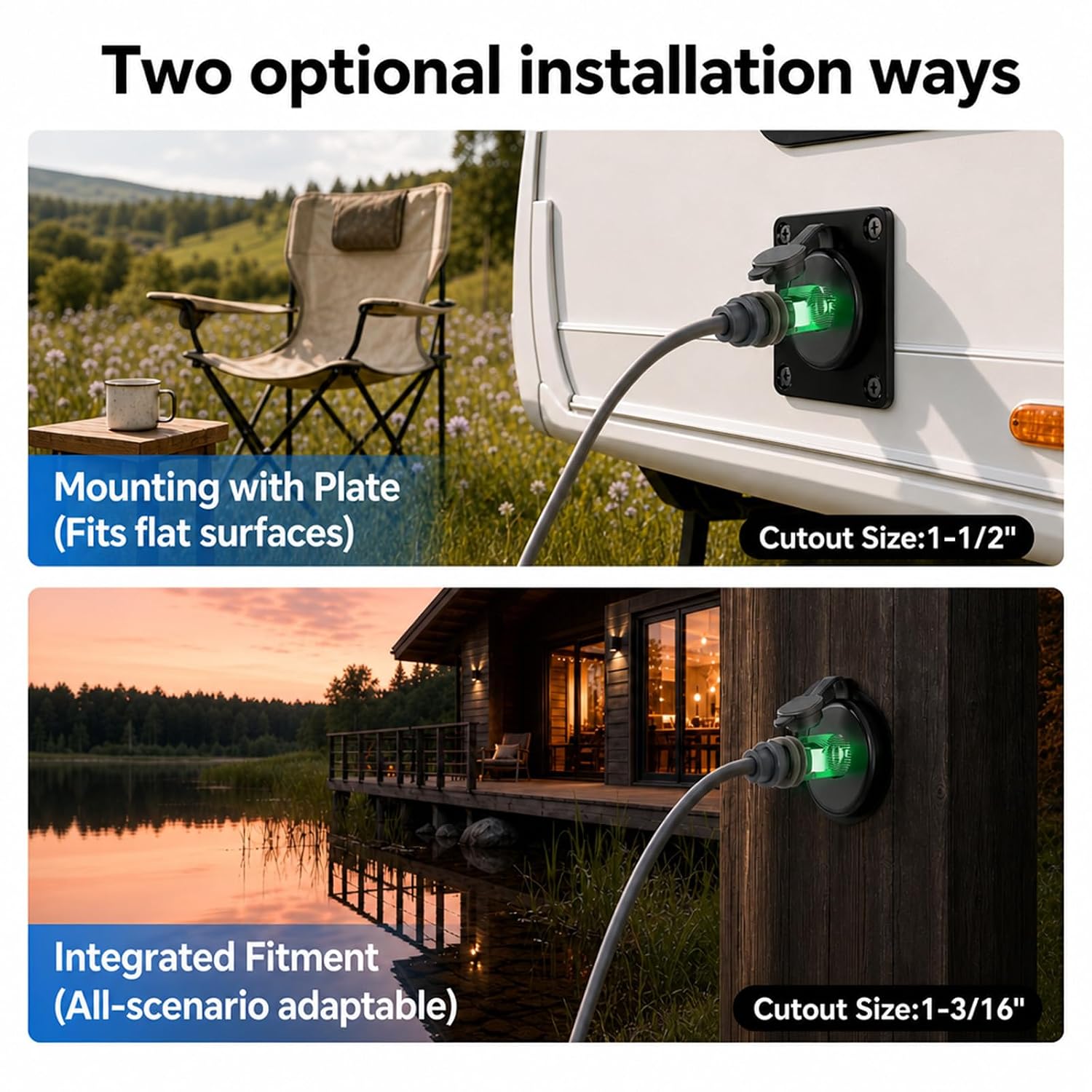

• Two install methods: square mounting plate on flat surfaces (1-1/2 in cutout) or integrated threaded body through a 1-3/16 in hole with the rear locknut

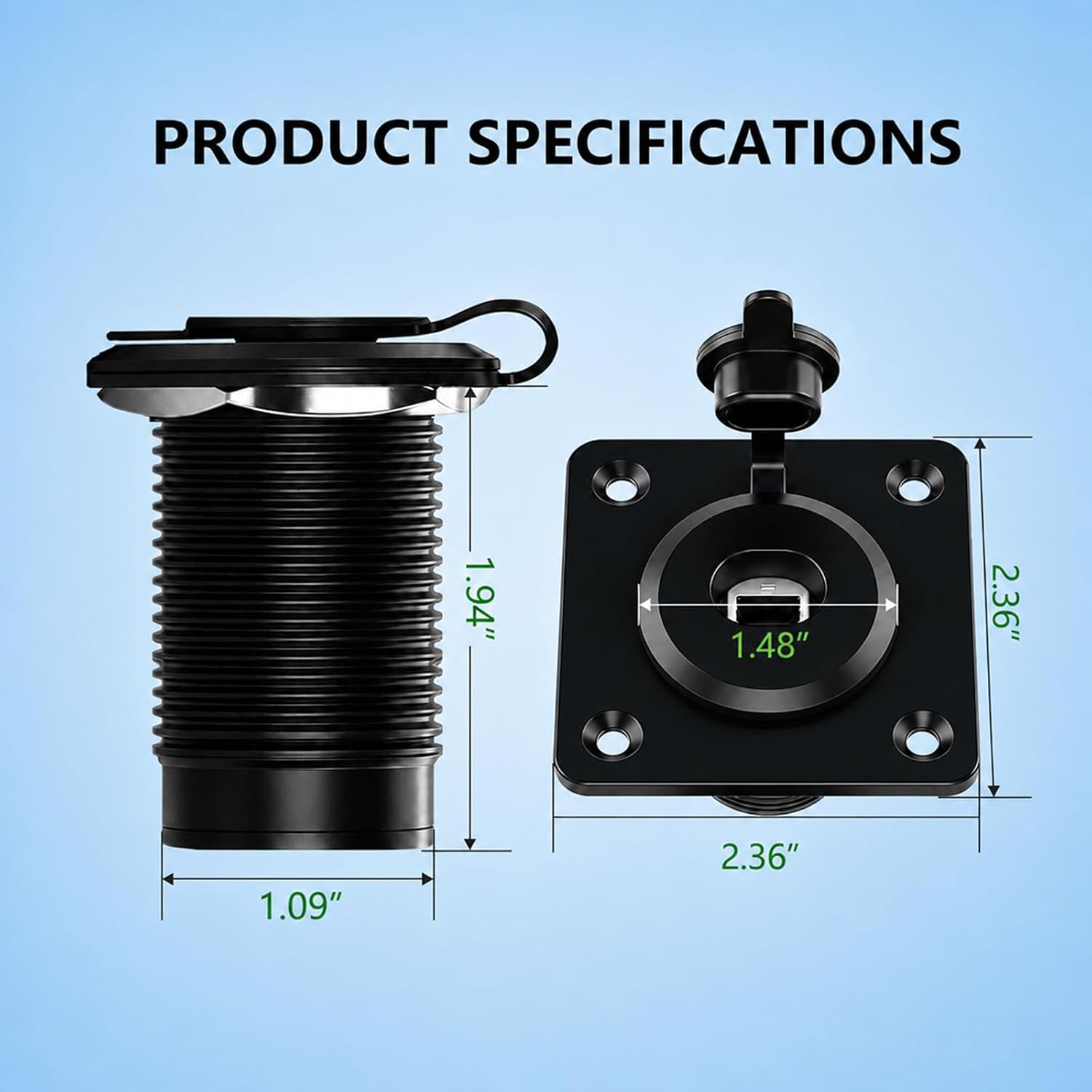

• Plate 2.36 x 2.36 in; body 1.09 in diameter x 1.94 in long; four stainless mounting screws and gasket included
• Fits Starlink Standard Gen3 (kickstand) cable. Not for the original actuated Standard, Performance Gen2 or Performance Gen3 cables, which use a different connector

Typical install

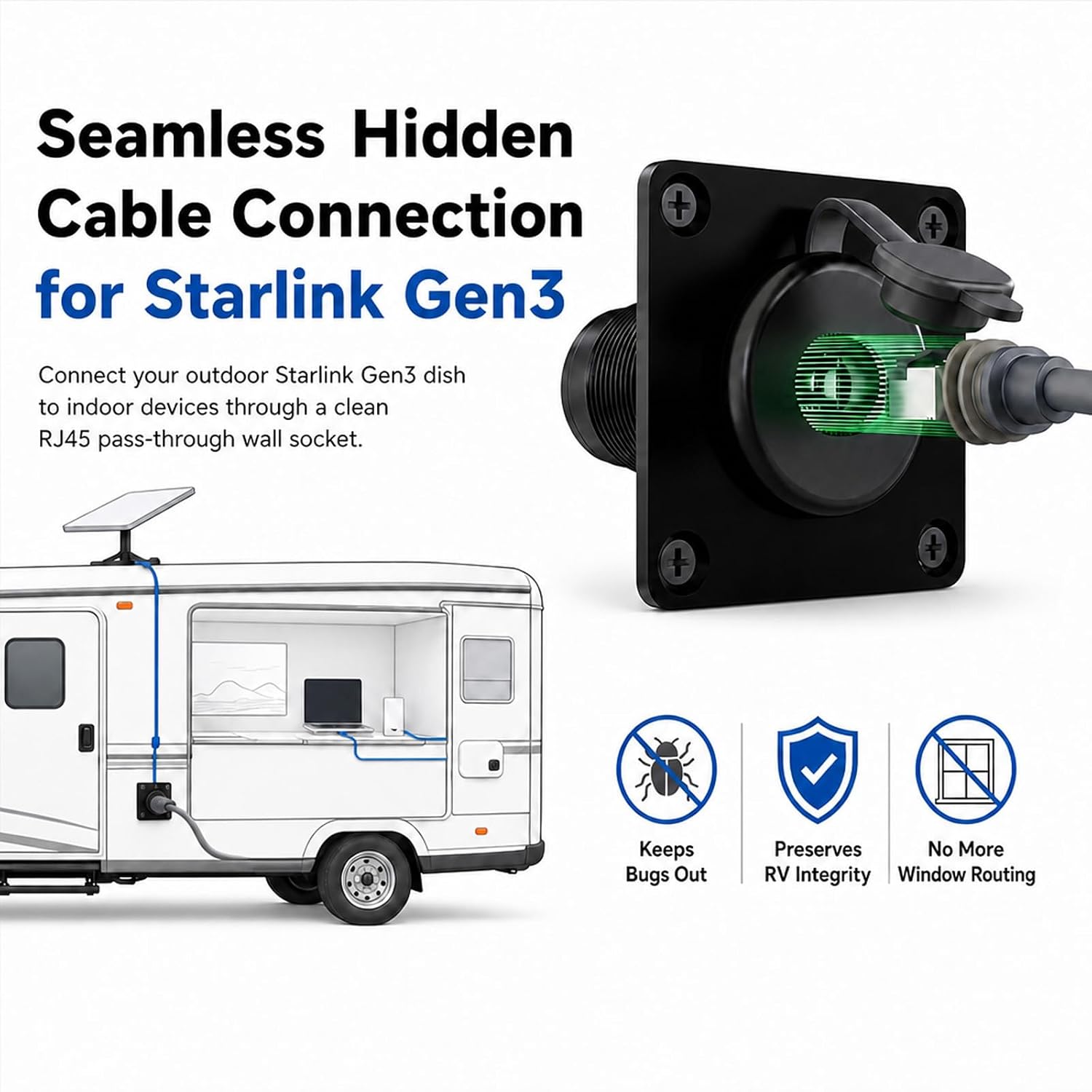

Mount outside at the dish side, run the Gen3 cable to the socket, and connect a Cat6 patch cable from the inside jack to the Starlink router. On vehicles, pair with the 12 V to 48 V power kit so the router runs from the house battery. Bond the mounting plate to the chassis on metal-body vehicles per ABYC E-11 or the OEM ground scheme.

Starlink is a trademark of SpaceX. Conversions Tech is an independent distributor of compatible accessories and is not affiliated with SpaceX.
