PV Home Run Cable, 10 AWG Bare Copper | MC4 to Stripped End, US-Made UL 4703 Cable, 25–250 ft | 4904-HR
Shipping calculated at checkout
SKU: 4904-HR-025-R-M
In stock
Open here

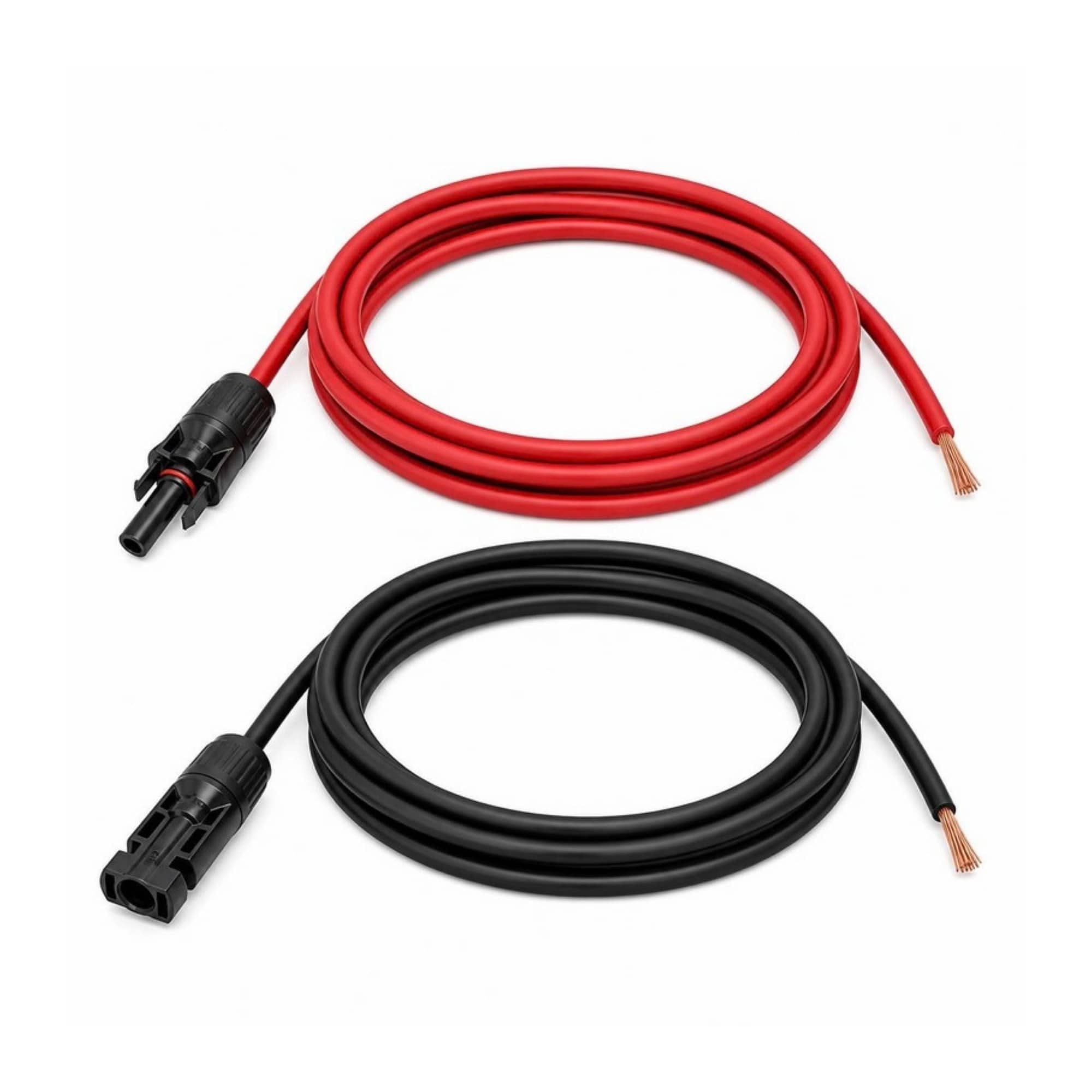

Made-to-length PV home run cables on US-made 10 AWG PV wire with a 100% bare copper conductor, assembled in the USA: an MC4 connector on the array end and a clean, stripped end for the combiner, disconnect, rapid shutdown box or inverter terminal. Pick male or female MC4 to mate with the string end, and red or black for polarity. Every cable is cut, crimped and pull-tested to order in the USA, with same-day shipping on orders placed before 2 PM PT.
Stäubli MC4 available. Home runs ship with Conversions Tech MC4 as standard. For Stäubli MC4 (original MC4) on the array end, to match Stäubli-fitted modules or a project spec, send your cut list to CS@conversionstech.com or call (307) 206-0534 for a quote, typically $3.50 more per cable.
Which connector do I need?
Order the opposite gender of the connector on the end of your string: a male MC4 home run mates with a female string lead, and a female home run mates with a male string lead. Connector gender by polarity varies by module manufacturer, so check the module data sheet or the leads on site, then order one red and one black per string. MC4-style connectors from different makers are not automatically intermateable; see the connector compatibility guide.
Specifications
| Item | Value |
|---|---|
| Conductor | 10 AWG (6 mm²) stranded, 100% bare copper |
| Cable origin | Manufactured in the USA |
| Assembly | Assembled in the USA |
| Cable listing | UL 4703 PV wire, USE-2, RHH/RHW-2, 2000 V, XLPE insulation, sunlight resistant |
| Array end | Conversions Tech MC4 (Stäubli MC4 on request), IP67, 1500 V DC, 30 A, hydraulic crimped and pull-tested |
| Equipment end | Stripped and ready to terminate; ring lug or ferrule on request |
| Conductor resistance | 1.24 Ω per 1,000 ft (NEC Ch. 9 Table 8) |
| Colors | Red (positive), Black (negative) |
RHH/RHW-2 listing means the same cable can continue through conduit into the building to the inverter without a splice to THHN.
Sizing
Voltage drop on a 10 AWG home run is about (2 × one-way ft × amps × 1.24) ÷ 1,000. A 200 ft run at 12 A drops about 6 V, roughly 1.5% on a 400 V string. See the PV wire size guide before going longer.
Custom builds and volume
- Any length, cut to the foot, and labeled by string number for commercial arrays
- Ring lug, ferrule or fused MC4 on request
- PO and net terms on approved trade accounts
Send a cut list to the engineering desk at 307-206-0534 or through the trade application.
Related: MC4 to MC4 jumpers · factory vs field-crimped MC4 · combiners and disconnects · 10 AWG PV wire spools
