DC Power Distribution for 12 V, 24 V and 48 V Systems: Busbars, Fuse Blocks, and the ABYC E-11 Rules
Sep 01, 2026
Low-voltage DC systems — boats, RVs, vans, off-grid solar, telecom and battery cabinets — fail at the distribution hardware far more often than at the battery or the inverter. Undersized busbars heat up, unfused branches burn, the wrong fuse family cannot clear a lithium short. This guide covers how to choose busbars, fuse blocks, and terminal strips for 12 V, 24 V, and 48 V systems, with the ABYC E-11 rules that most inspectors and insurers reference even off the water. Products: Busbars & Power Distribution.

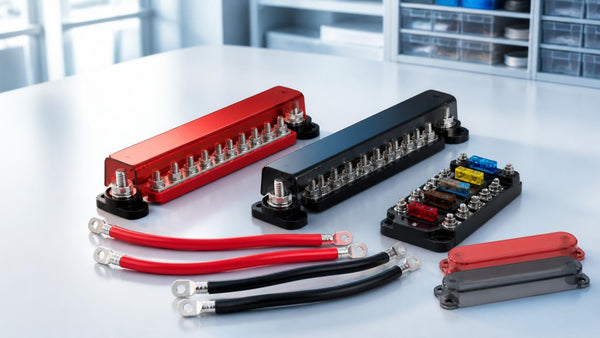

1. Busbars: rating, studs, and terminals per stud
A busbar's continuous rating (e.g., 600 A DC / 545 A AC) is the total current the bar can carry with all terminals landed; it is not per stud. Tin-plated copper bus on a UL 94 V-0 base is the standard construction. Match the stud to the lug: 3/8"-16 for 4/0–500 kcmil battery and inverter cable; 5/16" (M8) for 2–4/0; 1/4"-20 (M6) for 8–2 AWG; #8-32/#10-32 screw terminals for 16–10 AWG branch wiring.
- ABYC E-11.10.4: no more than four conductors per terminal stud. Raised-bus designs let two lugs land inverted and two upright so four fit cleanly.
- Torque: typical values are 140 in-lb on 3/8"-16 studs, 50–60 in-lb on 5/16", 25–35 in-lb on 1/4", and 15 in-lb on #8 screws. Use nylon-insert or serrated flange nuts; never stack washers between lug faces.
- Voltage: most marine-grade bars are rated 48 V DC / 300 V AC. Confirm the rating before using a "12 V" bar on a 48 V bank.
- Insulation: ABYC and NEC 110.27 both require positive bus terminals to be protected from accidental contact — use a cover or boot.
2. Fuse blocks: the seven-inch rule and picking a fuse family
ABYC E-11.10.1.1.1: every ungrounded conductor from a battery must have overcurrent protection within 7 inches (178 mm) of the battery terminal — 72 inches if the conductor is sheathed and 40 inches if it is in an enclosure — which is why terminal-mounted MRBF fuses exist. Each branch circuit off a distribution bus then needs its own fuse sized to the wire, not the load.
| Fuse family | Range | Voltage | Interrupt (AIC) | Where it fits |
|---|---|---|---|---|
| ATO / ATC blade | 1–40 A | 32 V DC | 1,000 A | Branch circuits, lighting, electronics, pumps |
| Mini ANL (AFS) | 30–200 A | 32 V DC | 2,500 A | Car audio amplifiers, small inverters |
| MIDI / AMI | 30–200 A | 32 V DC | 2,000 A | Charger and DC-DC outputs, windlass, thruster feeds |
| MEGA / AMG / ANM | 40–500 A | 32 V DC | 2,000 A | Alternator and main feeds on lead-acid banks |
| ANL | 35–750 A | 32 V DC | 2,700 A (6,000 A at 12 V) | Inverter feeds on lead-acid banks |
| MRBF (terminal fuse) | 30–300 A | 58 V DC | 10,000 A at 14 V / 2,000 A at 58 V | Battery-terminal protection, 12–48 V, most lithium banks |
| Class T | 110–400 A | 125 V DC | 20,000 A | Large lithium banks and inverter mains where AIC governs |
Two rules that decide the family: (1) the fuse's voltage rating must equal or exceed the system — 32 V fuses are not acceptable on 48 V banks; MRBF (58 V) or Class T (125 V) are; (2) the interrupt rating must exceed the battery's short-circuit current. A single 100 Ah LiFePO4 can deliver 2,000–4,000 A into a bolted fault; paralleled lithium banks exceed the AIC of ATO, MIDI, MEGA, and ANL fuses and require MRBF or Class T at the battery.
3. Terminal strips: barrier blocks for control wiring
Barrier terminal strips carry the low-current side: switch legs, sensors, lighting home runs, panel meters. Rating is per pole (typically 20–30 A, 250–300 V) with 22–12 AWG conductors under SEMS or binding-head screws. Use ring or spade terminals, not bare wire, under binding screws; add jumper bars to gang commons; fit the marked torque (typically 7–9 in-lb on #6-32 SEMS). Bussmann TB-series and Cinch/Kulka 140-series are the spec-sheet standards these cross to.
4. Sizing walk-through: a 12 V / 3000 W inverter, 400 Ah LiFePO4
- Main feed: 3000 W / 12 V / 0.85 efficiency ≈ 295 A continuous → 4/0 AWG cable, 400 A Class T or a 300 A MRBF at the battery post (inverter manual governs).
- Busbars: 600 A PowerBar-class positive and negative bars with 3/8"-16 studs; land inverter, charger, and DC-DC on separate studs, four terminals per stud maximum.
- Branch circuits: from a fused distribution post, a 12-circuit ATO/ATC block with negative bus for lights, pumps, electronics; each fuse sized to the wire per ABYC E-11 Table VI.
- Shunt: battery monitor shunt in the negative lead between the battery and the negative bus — nothing else lands on the battery-side negative.
- Covers: insulated covers on every positive bar and fuse block.
5. Cross-reference notes
Our PowerBar-class 600 A busbar crosses to Blue Sea Systems 2104 (four 3/8"-16 studs, 600 A DC / 545 A AC, 48 V DC / 300 V AC); blade fuse blocks cross to the Blue Sea ST Blade family (5025 six-circuit, 5026 twelve-circuit, 5035 six independent) and Bussmann 15600-series; the dual MRBF terminal block crosses to Blue Sea 5191; barrier terminal strips cross to Bussmann TB100/TB200. Each product page in the collection lists its crosses and torque values.
