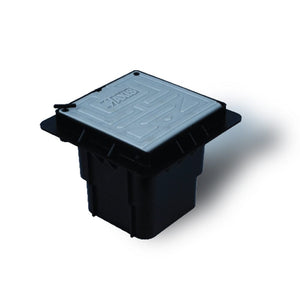

Light Weight Plastic Earth Pit - EPP2424
Shipping calculated at checkout
Out of stock
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here

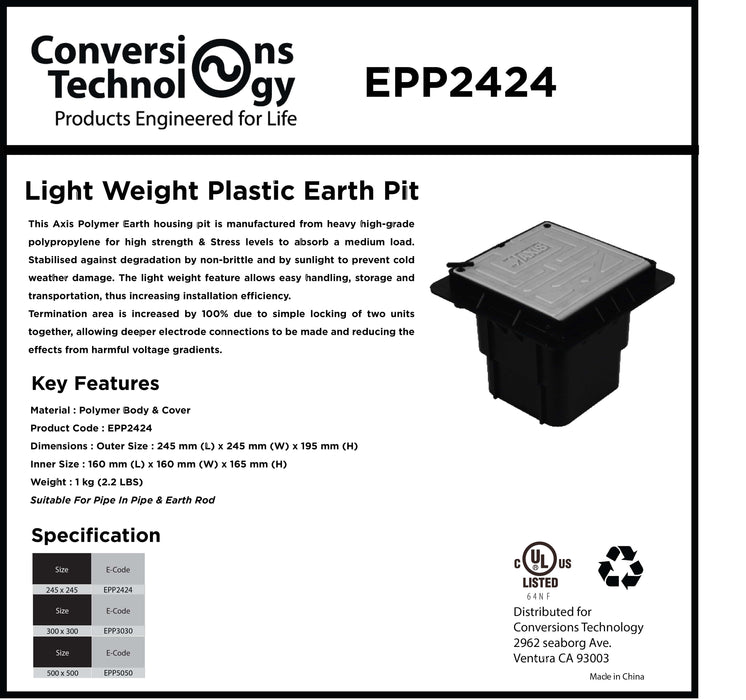

The Polymer Earth Housing Pit is constructed from high-grade polypropylene, ensuring exceptional strength and durability. This material is carefully chosen to withstand medium loads while being resistant to degradation from sunlight and non-brittle to avoid damage in cold weather. Its lightweight design significantly eases handling, storage, and transportation, thereby enhancing installation efficiency. Notably, this housing pit offers an innovative feature: the ability to double the termination area. By simply locking two units together, it allows for deeper electrode connections and effectively reduces harmful voltage gradients.
Specifications
- Material: Polymer body and cover
- Product Code: EPP2424
-
Dimensions:
- Outer Size: 245 mm (L) x 245 mm (W) x 195 mm (H)
- Inner Size: 160 mm (L) x 160 mm (W) x 165 mm (H)
- Weight: 1 kg (2.2 lbs)
Use Cases
- Electrical Installations: Ideal for safely housing grounding connections in residential, commercial, and industrial settings.
- Telecommunications: Useful in protecting grounding systems of telecommunication towers and equipment.
- Renewable Energy Systems: Applicable for grounding connections in solar panel installations and wind farms.

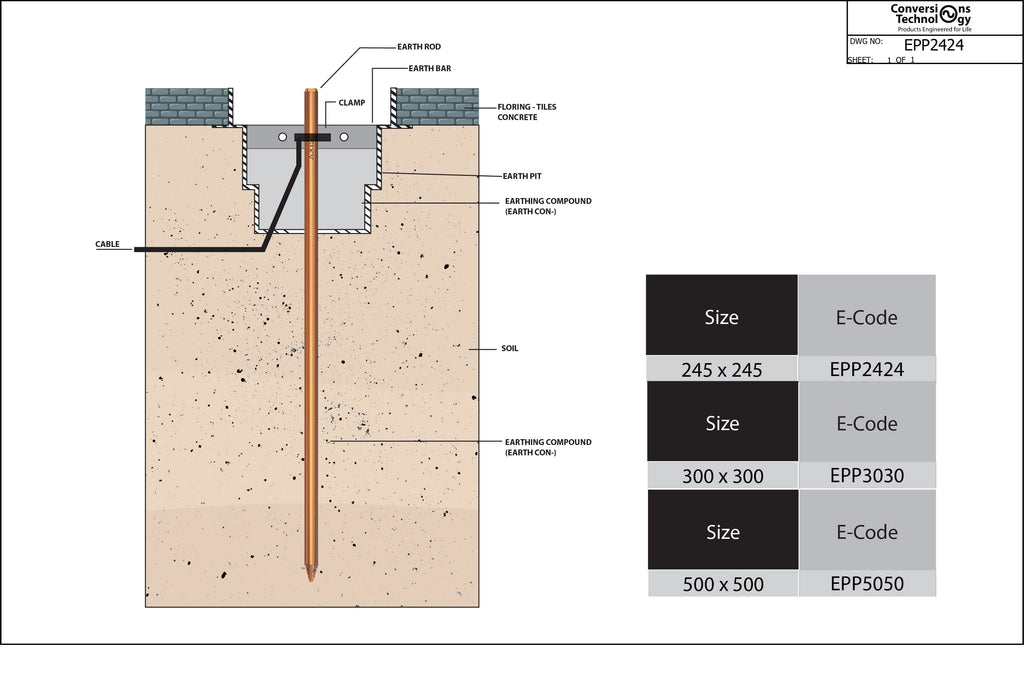

Installation Instructions
- Site Preparation: Identify a suitable location for the housing pit that aligns with the grounding system's requirements.
- Excavation: Dig a hole in the ground that accommodates the outer dimensions of the housing pit.
- Placement: Carefully place the Polymer Earth Housing Pit into the excavated area, ensuring it is level with the ground surface.
- Connection: Install the grounding electrode or system inside the pit, making sure the connections are secure and well-protected.
- Unit Locking (if needed): If deeper electrode connections are required, lock two units together by aligning and securing them at the designed locking points.
- Final Adjustments: Ensure all connections are secure and cover the pit with the provided polymer lid.
- Backfilling: Fill in the surrounding area and compact the soil around the pit for stability.
