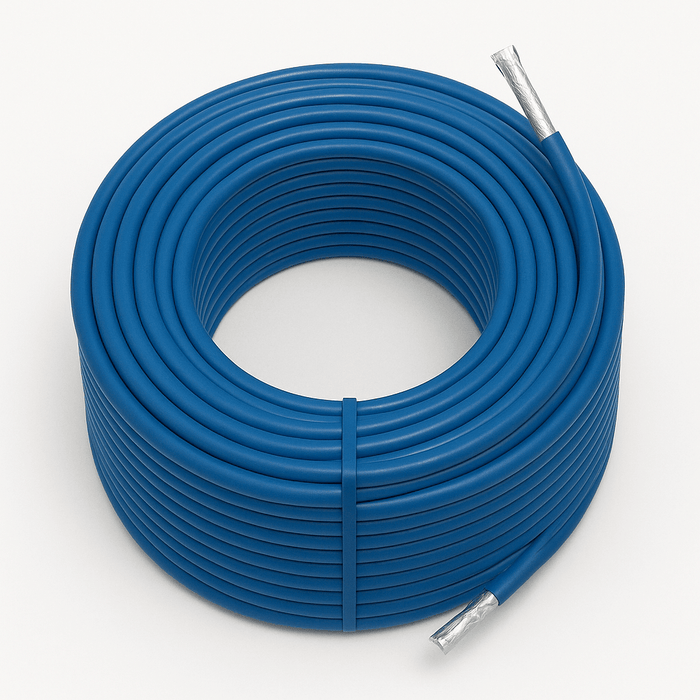

Sigma Wire & Cable Bulk Cat7 Category 7 Cat7 Cable LSZH Jacket Blue

Category 7 Cat7 Cable LSZH Jacket Blue

by Sigma Wire & Cable

Availability:
144 in stock, ready to be shipped
Save 65% Save 65%
$280.00
$280.00 - $280.00
$280.00
$99.00
$99.00 - $99.00
$99.00
Request Distributor or Volume Pricing
SKU 9700-5250



Cat7 S/FTP Ethernet Cable – 250 ft Bulk Roll

Key Performance Advantages

  • True 1000 MHz Bandwidth: 4× Cat6, engineered for 10 GbE, 25 Gb back-bone links, UHD video & PoE++.
  • S/FTP Quad Shield: Individual foil + overall braid eliminates EMI/RFI—perfect for data centers and broadcast suites.
  • 23 AWG Solid Bare Copper: 99.99 % oxygen-free conductors deliver low-latency, error-free transmission.
  • Universal Termination: Works with GG-45®, TERA®, and legacy RJ-45 hardware—no rip-and-replace required.
  • Low-Smoke Zero-Halogen (LSZH): Halogen-free jacket reduces toxic fumes, meets global fire-safety codes.
  • Installer-Ready 250 ft Pull Roll: Tangle-free payoff for horizontal runs, patch panels, or consolidation points.

Technical Specifications

Parameter Value
Category / Type Cat7 S/FTP (Shielded Foiled Twisted Pair)
Bandwidth 1 GHz (1000 MHz) certified
Data Rate Support 10GBASE-T to 100 m; backward-compatible with 5G/2.5G/1G
Conductors 23 AWG solid bare copper (4 pairs)
Shielding Al-Mylar foil per pair + 85 % tinned-copper braid
Impedance 100 Ω ± 10 Ω
Outer Jacket LSZH (Blue), RoHS & REACH compliant
Outer Diameter 7.9 mm ± 0.2 mm
Operating Temp. -20 °C ~ +60 °C
Length 250 ft / 76.2 m

Ready to Upgrade?

Boost network throughput and suppress interference with Conversions Technology Cat7 today.
