Aluminum Two Barrel Connectors One-Hole Mount 14 AWG - 2/0 AWG - 1/4"
Shipping calculated at checkout
SKU: 210-99013
950 in stock
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here

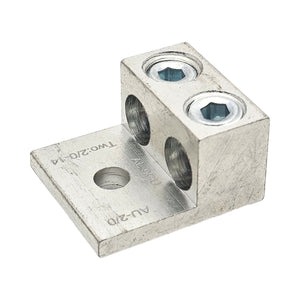

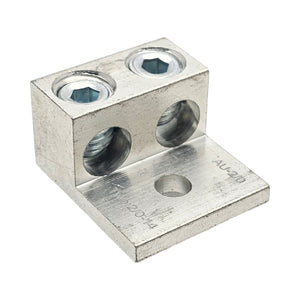

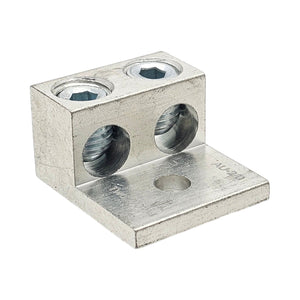

Aluminum Two-Barrel Mechanical Connector — One-Hole 1/4″, 14–2/0 AWG (CU/AL)
Conversions Tech’s award-winning mechanical connector (SKU 210-99013) is a compact, two-barrel, one-hole lug engineered for fast, code-compliant terminations and taps. The tin-plated 6061-T6 aluminum body with chamfered wire entries streamlines insertion and delivers stable, low-resistance contacts across the full 14–2/0 AWG range for CU/AL conductors. Rated to 90 °C and up to 35 kV, it’s built for reliability in panels, PV BOS, and industrial gear.
Need other formats? Explore our full Mechanical Connectors, or pair with Split Bolt Connectors for in-line splices and Grounding hardware for bonding.
Key Features
- Two-barrel, one-hole design (1/4″): Cleanly terminates parallels/taps using a single hardware stack — ideal when space is tight.
- Wide conductor window: Listed for 14–2/0 AWG, copper or aluminum conductors for maximum jobsite flexibility.
- Tin-plated 6061-T6 aluminum: Corrosion-resistant plating helps maintain low contact resistance in damp or outdoor enclosures.
- Chamfered wire entries: Easier insertion, less strand splay, improved mechanical retention.
- Thermal & electrical performance: 90 °C operating temperature; up to 35 kV class applications when used as listed.
- UL Listed: Meets rigorous pullout, thermal-rise, and corrosion criteria; supports CU/AL where indicated on the label.
- Panel-friendly geometry: Compact overall length ≈ 1-15/32″, pad ≈ 27/32″ × 1-1/4″ × 3/16″, height ≈ 1-1/32″ for dense gear.
Where it Excels
- Parallels & taps in service equipment, switchboards, and PDU/RPP panels.
- Solar PV / ESS BOS: Compact terminations at combiners, disconnects, and inverters; pair with listed grounding lugs for bonding.
- Industrial & OEM control cabinets where rework-friendly mechanical lugs cut tool time.
Technical Specifications
| Parameter | Spec |
|---|---|
| SKU | 210-99013 |
| Body Material / Finish | 6061-T6 aluminum, electro-tin plated |
| Conductor Compatibility | CU/AL, 14 AWG – 2/0 AWG |
| Barrels | Two (dual-barrel) |
| Mounting / Hole | One-hole pad, 1/4″ |
| Wire Entry | Chamfered |
| Overall Length | ≈ 1-15/32″ |
| Pad Size | ≈ 27/32″ × 1-1/4″ × 3/16″ |
| Height | ≈ 1-1/32″ |
| Temperature Rating | 90 °C |
| Electrical Class | Up to 35 kV (as listed/used) |
| Compliance / Listing | UL Listed; suitable for CU/AL where marked |
Installation Notes & Best Practices
- Verify listing & range: Confirm CU/AL, 14–2/0 AWG, and 1/4″ hardware fit before landing.
- Prep conductors: Strip clean; for AL, lightly brush and apply oxide inhibitor inside the barrel.
- Seat fully: Insert to back of barrel; ensure strands are not flared.
- Torque set screws to spec: Use a calibrated driver; document torque for QA/AHJ.
- Environmental checks: In wet/coastal installs, ensure proper enclosure rating and corrosion control.
Frequently Asked Questions
- Is this connector rated for both copper and aluminum?
- Yes — it’s listed for CU/AL conductors in the range of 14–2/0 AWG.
- What’s the mounting hole size?
- It’s a one-hole pad with a 1/4″ mounting hole for standard hardware stacks.
- What environments is it suitable for?
- The tin-plated aluminum body and 90 °C rating support typical indoor/outdoor enclosures when installed per listing and code. Use inhibitor with AL.
- Can I use it for taps or parallels?
- Yes — the dual-barrel layout is ideal for taps/parallels when permitted by code and the equipment label.
- What standards apply?
- See UL listing on the product and follow NEC (e.g., Article 250 for bonding/grounding; 230.46 for service line-side connections if applicable).
Looking for alternatives? Browse Mechanical Connectors or in-line Split Bolts. Need help crossing a competitor’s SKU? Contact us.
