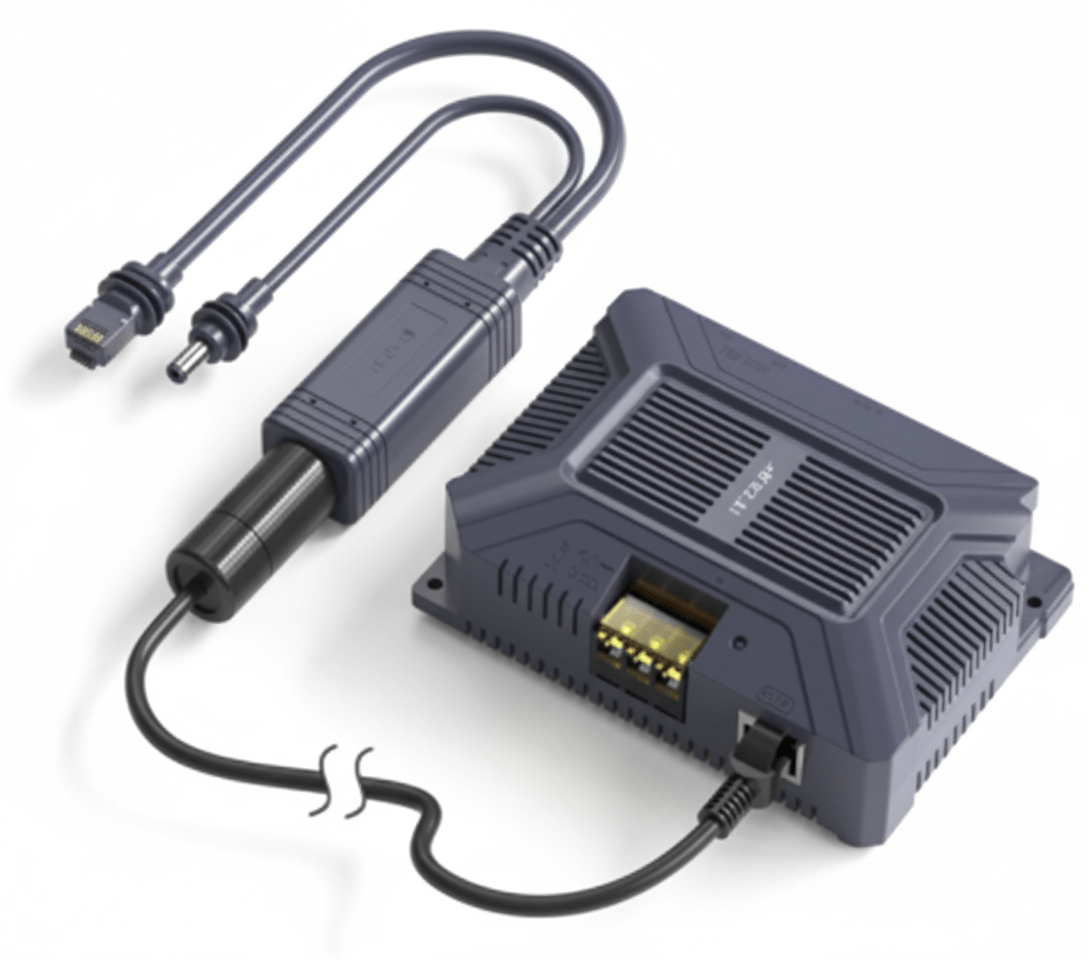

5-in-1 Starlink® Mini 150W Step-Up GigE PoE Injector with Splitter
The Conversions Tech 5-in-1 Step-Up Gigabit PoE Injector with Splitter is an all-in-one power + data hub engineered specifically for Starlink® Mini. It accepts a 12 V DC source (11–16 V window), boosts to a regulated 48 V, and injects power onto a Gigabit Ethernet line while preserving full 10/100/1000 Mb/s throughput. At the device end, the integrated splitter delivers the correct DC rail and data simultaneously—eliminating multiple boxes, adapters, and messy wiring. With up to 150 W of output power, robust protections, and a sealed, outdoor-ready build, this module is purpose-built for mobile, marine, and off-grid deployments where reliability is non-negotiable.
Key Capabilities (5-in-1)
- DC Step-Up Converter: Boosts 11–16 V input to regulated 48 V for high-demand loads.
- PoE Injector: Combines 48 V power + data on one Ethernet for a single sealed cable run.
- PoE Splitter: Separates power/data at the dish end for correct Starlink Mini power rail.
- Gigabit Pass-Through: Native 10/100/1000 Mb/s with low insertion loss—no bandwidth bottlenecks.
- Integrated Protections: OCP/OVP/OTP/SCP & reverse-polarity safeguards for field reliability.
Technical Advantages
- 150 W output headroom (48 V @ up to ~3.1 A) for stable operation under dynamic loads.
- High-efficiency boost topology reduces thermal rise and extends runtime on limited DC sources.
- Outdoor-ready enclosure with sealed cable glands and passive conduction cooling.
- Single-cable philosophy: minimize penetrations and points of failure across RV/van/boat roofs.
- Clean install: DC in from battery/house system → one LAN cable out carrying both 48 V and data.
Technical Specifications
| Input Voltage | 11–16 V DC (nominal 12 V systems) |
| Output Voltage | 48 V DC (regulated) |
| Max Output Power | Up to 150 W continuous |
| Output Current | Up to ~3.1 A @ 48 V |
| Data Rates | 10/100/1000 Mb/s (IEEE 802.3ab) |
| PoE Standards | 802.3af / 802.3at / 802.3bt-class power delivery |
| Connectors | DC input (ring/spade compatible), RJ45 LAN IN/OUT |
| Protections | OCP, OVP, OTP, SCP, reverse polarity (auto recovery where applicable) |
| Cooling | Passive conduction (no fan) |
| Environment | Outdoor / automotive / marine / off-grid |
| Compatibility | Optimized for Starlink® Mini |
Applications
- RV & Vanlife: Single sealed cable run from cabin to roof for Starlink Mini.
- Marine: Rugged power/data delivery in salt-mist and vibration-prone environments.
- Off-Grid Solar: 12 V banks → 48 V bus for satellite internet + networking gear.
- Industrial/IoT: Remote enclosures needing 48 V PoE and true GigE throughput.
- Public Safety/Events: Rapid-deploy field connectivity with minimal components.
FAQs
Does this directly power Starlink® Mini?
What input source do I need?
Is it compatible with 802.3af/at/bt devices?
How many boxes does this replace?
Is the enclosure weatherproof?
Any wiring tips?
