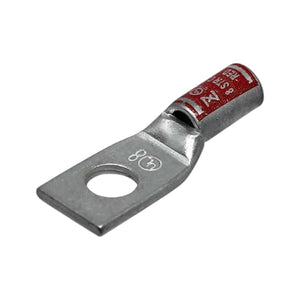

Copper Short Barrel One Hole Compression Lugs 8 AWG 1/4-inch bolt size
Shipping calculated at checkout
SKU: 210-98002
600 in stock
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here
The Copper Short Barrel One Hole Compression Lug by Conversions Tech is a premium connector designed for 8 AWG conductors. It features a 1/4-inch bolt size, standard barrel, sight window, and a durable tin-plated finish for superior conductivity and corrosion resistance. Color-coded red for easy identification, this lug ensures secure, efficient electrical connections and is UL certified, guaranteeing safety and high performance in a wide range of electrical applications.
Key Features
- Premium Copper Construction: Provides superior conductivity and reliable electrical connections for 8 AWG conductors.
- 1/4-Inch Bolt Size: Features a 1/4-inch bolt size for secure attachment to terminals or busbars, ensuring stable connections.
- Standard Barrel and Sight Window: The standard barrel design ensures efficient crimping, while the sight window allows for easy inspection to confirm proper conductor insertion.
- Tin-Plated Finish: Offers excellent corrosion resistance and enhances the conductivity of the lug, ensuring long-lasting performance.
- Red Color Code: Facilitates easy identification, streamlining the installation process and improving organization.
- UL Certified: Guarantees safety and high performance, meeting industry standards for a wide range of electrical applications.
- Secure and Efficient Connection: Ideal for use in various electrical systems, ensuring reliable, high-performance electrical connections in demanding environments.
Technical Specifications
| Wire Size | 8 AWG |
| Stud Size | 1/4" Stud |
| Color | Red |
| Overall Length (L) | 34.3mm (1.40") |
| Barrel Length (L1) | 18.4mm (0.73") |
| Barrel Diameter (D) | 11.2mm (0.44") |
| Barrel Inner Diameter (D1) | 7.1mm (0.28") |
| Barrel Outer Diameter (D2) | 4.8mm (0.19") |
| Flange Length (B) | 12.7mm (0.50") |
| Flange Width (E) | 7.1mm (0.28") |
| Thickness (F) | 1.9mm (0.08") |
| Material | Tin Plated Copper |
| Temperature Rating | 90°C |
| Max Electrical Rating | 35 KV |
| Max Electrical Current | 50A |
| UL Approved | Yes |
| CE Certified | Yes |
| RoHS Compliant | Yes |
