Copper Short Barrel One Hole Compression Lugs 4 AWG 1/4-inch Bolt Size
Shipping calculated at checkout
SKU: 210-98008
Only 5 in stock
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here

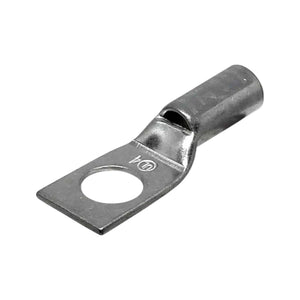

The Conversions Tech 4 AWG Copper Compression Lug is engineered for maximum efficiency and reliability in electrical connections. This lug features a single hole, a 1/4-inch bolt size, and a standard barrel with a sight window, ensuring easy and correct installation. The tin-plated finish not only enhances conductivity but also provides excellent corrosion resistance, making it perfect for a variety of settings including industrial machinery and power distribution panels.
Key Features
- Engineered to accommodate 4 AWG copper conductors, ensuring a precise and secure connection.
- Features a tin-plated high strength copper construction for enhanced durability and conductivity.
- Incorporates a sight window for visual confirmation of proper wire insertion, facilitating accurate installations.
- The gray color code provides quick identification, aligning with industry standards for easy integration into existing systems.
| Wire Size | 4 AWG |
|---|---|
| Stud Size | 1/4" Stud |
| Color | Gray |
| Overall Length (L) | 39.8mm (1.57") |
| Neck Length (L1) | 18.4mm (0.72") |
| Outer Diameter (D) | 13.7mm (0.54") |
| Inner Diameter (D1) | 9.1mm (0.36") |
| Hole Diameter (D2) | 7.1mm (0.28") |
| Width (B) | 17.5mm (0.69") |
| Hole Spacing (E) | 7.1mm (0.28") |
| Thickness (F) | 1.9mm (0.07") |
| Material | Tin-Plated Copper |
| Temperature Rating | 90°C |
| Voltage Rating | 35 KV |
| Max Amp Rating | 125A |
| UL Approved | Yes |
| CE Certified | Yes |
| RoHS Compliant | Yes |
