Copper Short Barrel One Hole Compression Lugs 3/0 AWG 1/4-inch Bolt Size
Shipping calculated at checkout
SKU: 210-98024
990 in stock
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here

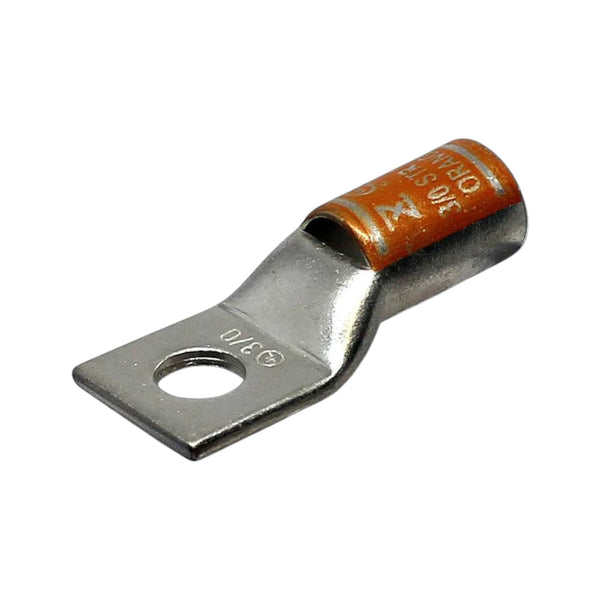

The Conversions Tech Copper Compression Lug is a robust connector designed for 3/0 AWG conductors, featuring a 1-hole configuration with a 1/4-inch bolt size. Equipped with a standard barrel, sight window, and an orange color code for easy identification, this tin-plated lug ensures a secure and efficient electrical connection in various applications. Its durable construction and corrosion resistance make it an ideal choice for long-lasting and reliable electrical terminations.
Key Features
- High-Quality Copper Construction: Made from durable copper for superior electrical conductivity and long-term reliability.
- 3/0 AWG Conductor Size: Designed specifically for 3/0 AWG cables, ideal for high-power electrical systems and reliable connections.
- 1-Hole Configuration: Features a single hole, ensuring a stable and secure connection to terminals for efficient electrical terminations.
- 1/4-Inch Bolt Size: The 1/4-inch bolt hole size ensures compatibility with standard-sized terminals, simplifying installation.
- Standard Barrel Design: The standard barrel provides a strong and secure crimp connection, enhancing the reliability of the electrical connection.
- Sight Window: Equipped with a sight window for visual inspection, ensuring proper wire insertion and correct crimping during installation.
-
Tin-Plated & Orange Color Code: The tin-plated surface offers enhanced corrosion resistance, while the orange color code allows for easy identification, improving efficiency during installations.

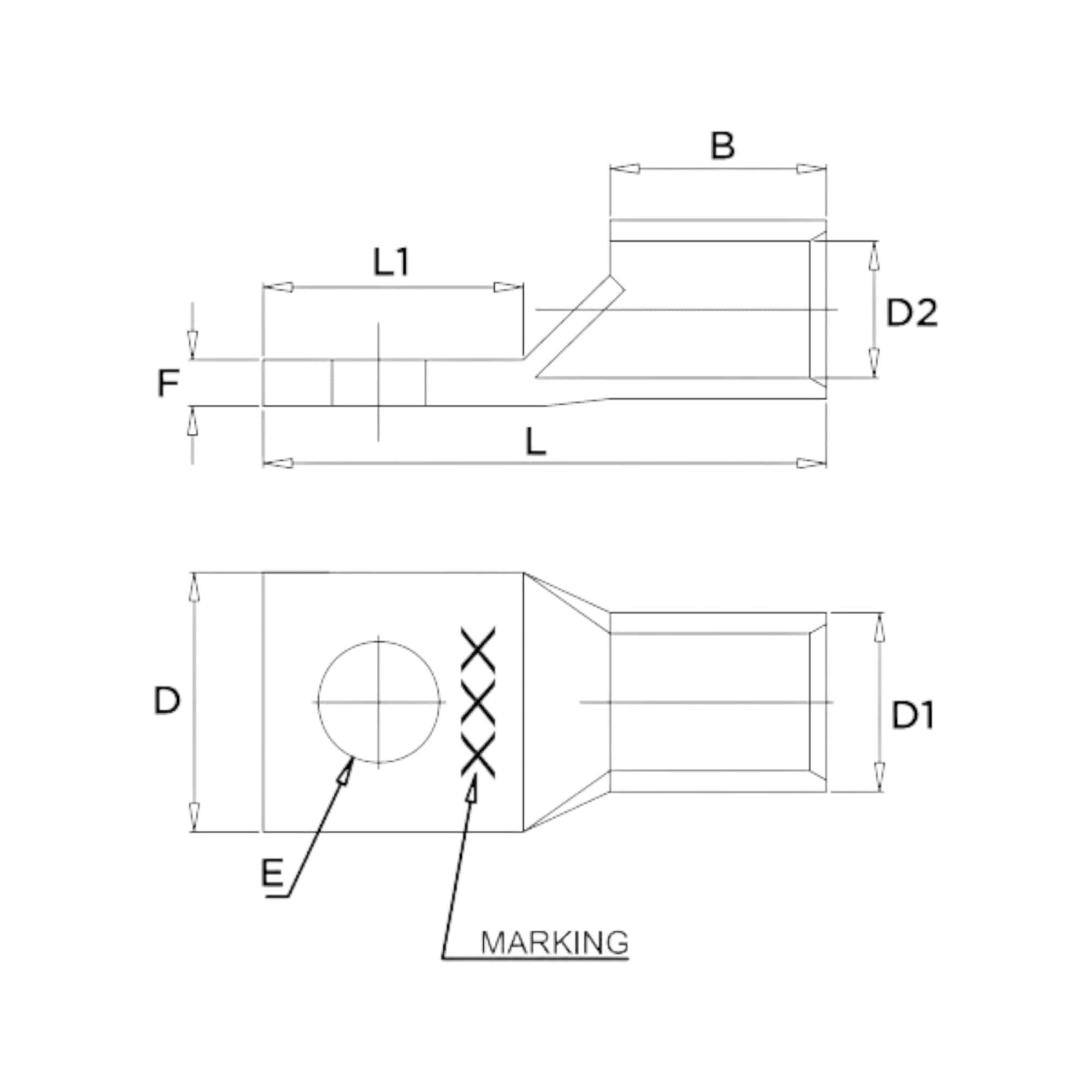

Technical Specifications
| Wire Size | 3/0 AWG |
|---|---|
| Stud Size | 1/4" Stud |
| Color | Orange |
| Overall Length (L) | 51.7mm (2.04") |
| Length 1 (L1) | 18.4mm (0.70") |
| Diameter (D) | 23.0mm (0.90") |
| Diameter 1 (D1) | 15.7mm (0.60") |
| Diameter 2 (D2) | 13.0mm (0.50") |
| Width (B) | 24.4mm (0.96") |
| Width 1 (E) | 7.1mm (0.30") |
| Thickness (F) | 2.7mm (0.10") |
| Material | Tin Plated Copper |
| Temperature Rating | 90°C |
| Voltage Rating | 35 KV |
| Maximum Amp Rating | 310A |
| UL Approved | Yes |
| CE Certified | Yes |
| RoHS Compliant | Yes |
