Copper Short Barrel One Hole Compression Lugs 250 MCM 1/4-inch Bolt Size
Shipping calculated at checkout
SKU: 210-98032
1000 in stock
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here

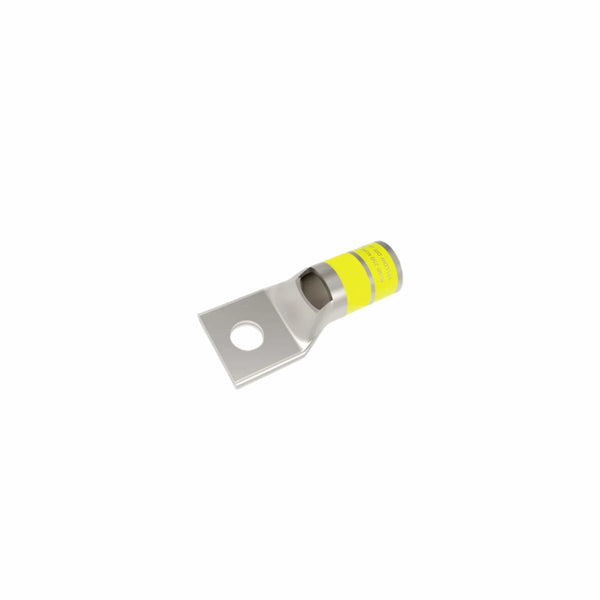

The Conversions Tech Copper Compression Lug is a reliable and high-performance connector designed for 250 MCM conductors. Featuring a 1-hole configuration with a 1/4-inch bolt size, a standard barrel, and a sight window, this lug ensures secure and efficient electrical connections. Its tin-plated construction enhances conductivity and provides corrosion resistance, while the yellow color code facilitates easy identification in various applications. This lug offers a durable, easy-to-use solution for professionals seeking dependable electrical terminations.
Key Features
- High-Quality Copper Construction: Made from premium copper for excellent electrical conductivity and long-lasting reliability.
- 250 MCM Conductor Size: Designed for 250 MCM conductors, making it ideal for medium-power electrical applications.
- 1-Hole Configuration: The single hole allows for a secure connection to terminals, ensuring efficient electrical terminations.
- 1/4-Inch Bolt Size: Features a 1/4-inch bolt hole, offering compatibility with standard-sized terminals for easy installation.
- Standard Barrel Design: The standard barrel ensures a reliable crimp connection, providing secure and efficient electrical connections.
- Sight Window: Equipped with a sight window for visual inspection, allowing for accurate wire insertion and crimping verification.
-
Tin-Plated Finish & Yellow Color Code: The tin-plated construction enhances corrosion resistance, while the yellow color code simplifies identification, making installation easier and reducing errors.
Technical Specifications
| Material | Seamless Electro-Tin Plated Copper |
|---|---|
| Color | Yellow |
| Overall Length | 2.469 inches |
| Barrel Length | 1.063 inches |
| Conductor Material | Copper |
| Voltage Rating | 35 kV |
| Conductor Size | 250 MCM |
| Stud Size | 1/4 inches |
| Die Index | I-62 |
| Pad Size and Hole(s) | 0.875 inches Length x 1.088 inches Width x 0.157 inches Thickness with 1 hole |
| Barrel Type | Standard with Chamfered Entry |
| ID/OD Size | 0.593 inches Inner Diameter x 0.75 inches Outer Diameter |
| Temperature Rating | 90°C |
