Copper Short Barrel One Hole Compression Lugs 600 MCM 5/8-inch Bolt Size
Shipping calculated at checkout
SKU: 210-98042
Only 14 in stock
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here

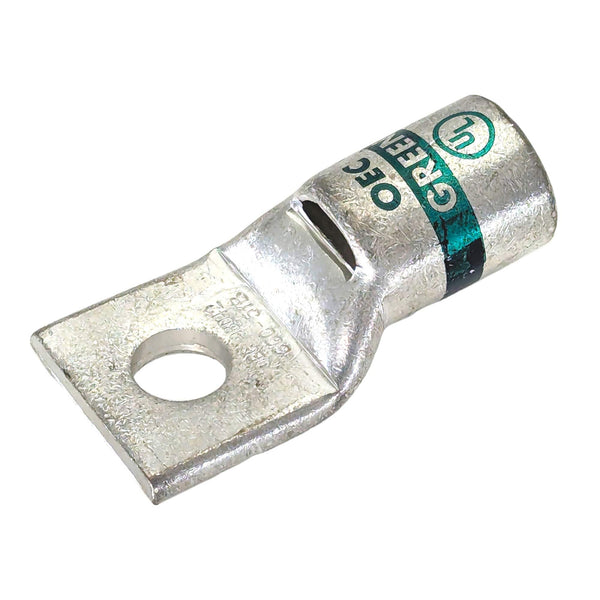

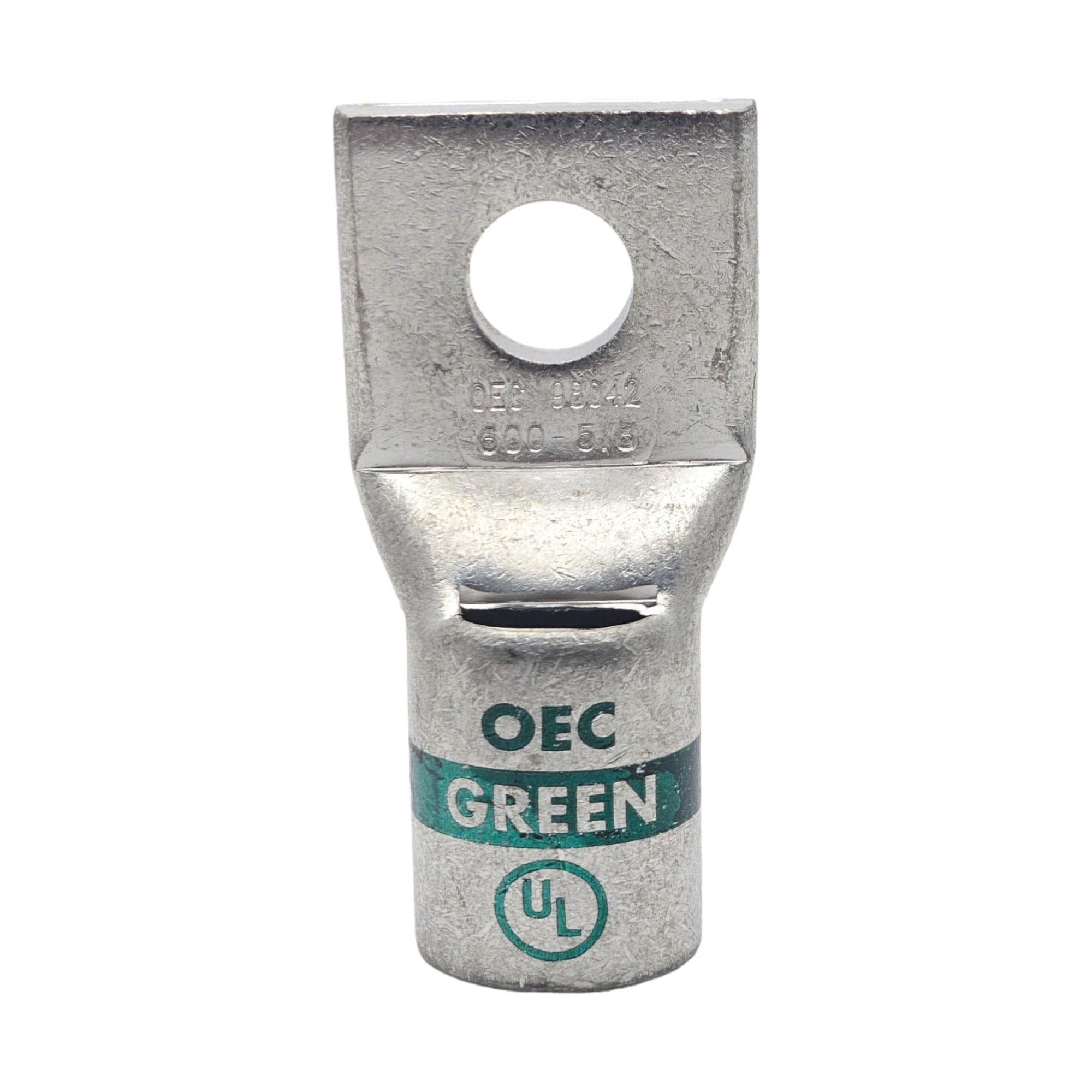

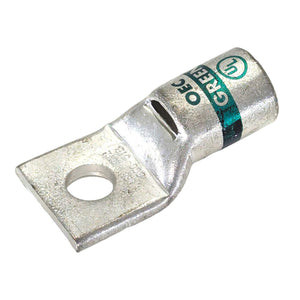

The Conversions Tech 1-Hole Lug is a robust copper compression lug designed for efficient electrical connections. Featuring a conductor size of 600 MCM, a single hole, a 5/8-inch bolt size, and a standard barrel, this lug ensures secure and reliable performance. The tin-plated construction provides enhanced durability and corrosion resistance, while the sight window allows for easy visual inspection during installation. The distinctive green color code simplifies easy identification, making this lug an ideal choice for professionals seeking a high-quality, dependable solution for their electrical systems.
Key Features
- Robust Copper Construction: Made from high-quality copper for excellent electrical conductivity and long-lasting performance.
- 600 MCM Conductor Size: Designed for 600 MCM conductors, suitable for medium to heavy-duty electrical systems and high-current applications.
- 5/8-Inch Bolt Size: Features a 5/8-inch bolt hole, providing a secure and stable connection to terminals.
- Standard Barrel Design: The standard barrel ensures a reliable and strong crimp connection, contributing to overall performance and durability.
- Sight Window: Equipped with a sight window for visual inspection, allowing for accurate wire insertion and proper crimping.
- Tin Plating: Coated with tin plating to offer enhanced corrosion resistance and increase the lug's lifespan, ensuring reliable performance in various environments.
-
Green Color Code: The distinctive green color code facilitates easy identification during installations, improving efficiency and reducing installation errors.

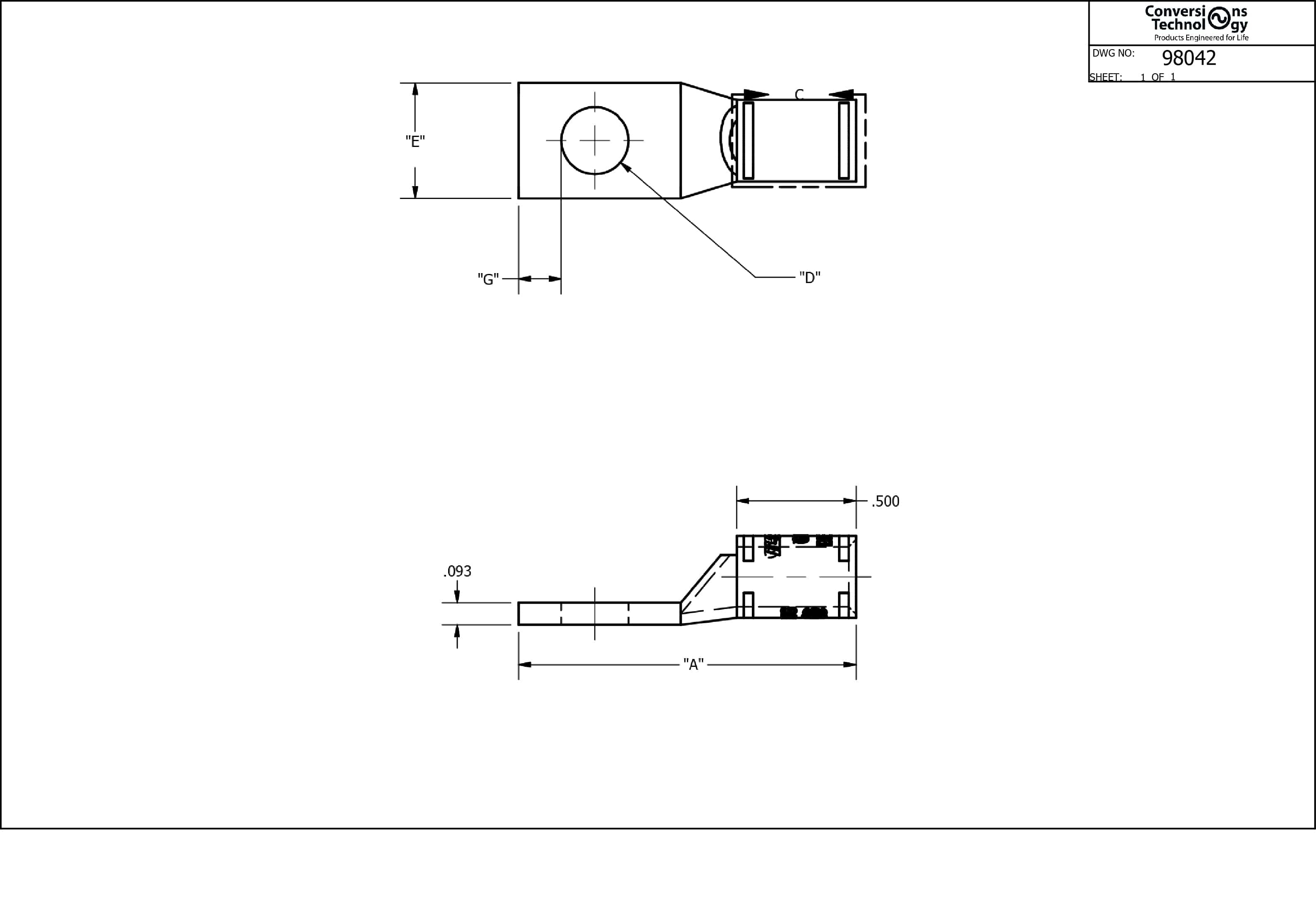

Technical Specifications
| Material | Seamless Electro-Tin Plated Copper |
|---|---|
| Color | Green |
| Overall Length | 3.621 inches |
| Barrel Length | 1.375 inches |
| Conductor Material | Copper |
| Voltage Rating | 35 kV |
| Conductor Size | 600 MCM |
| Stud Size | 5/8 inch |
| Die Index | I-94 |
| Pad Size | 1.437 inches L x 1.712 inches W x 0.267 inches Thk |
| Pad Holes | 1 |
| Barrel Type | Standard |
| ID x OD | 0.92 inch ID x 1.187 inch OD |
| Barrel Entry | Chamfered |
| Temperature Rating | 90°C |
