Copper Long Barrel One Hole Compression Lug 300 MCM 1/2-inch Bolt Size
Shipping calculated at checkout
SKU: 210-98075
934 in stock
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here

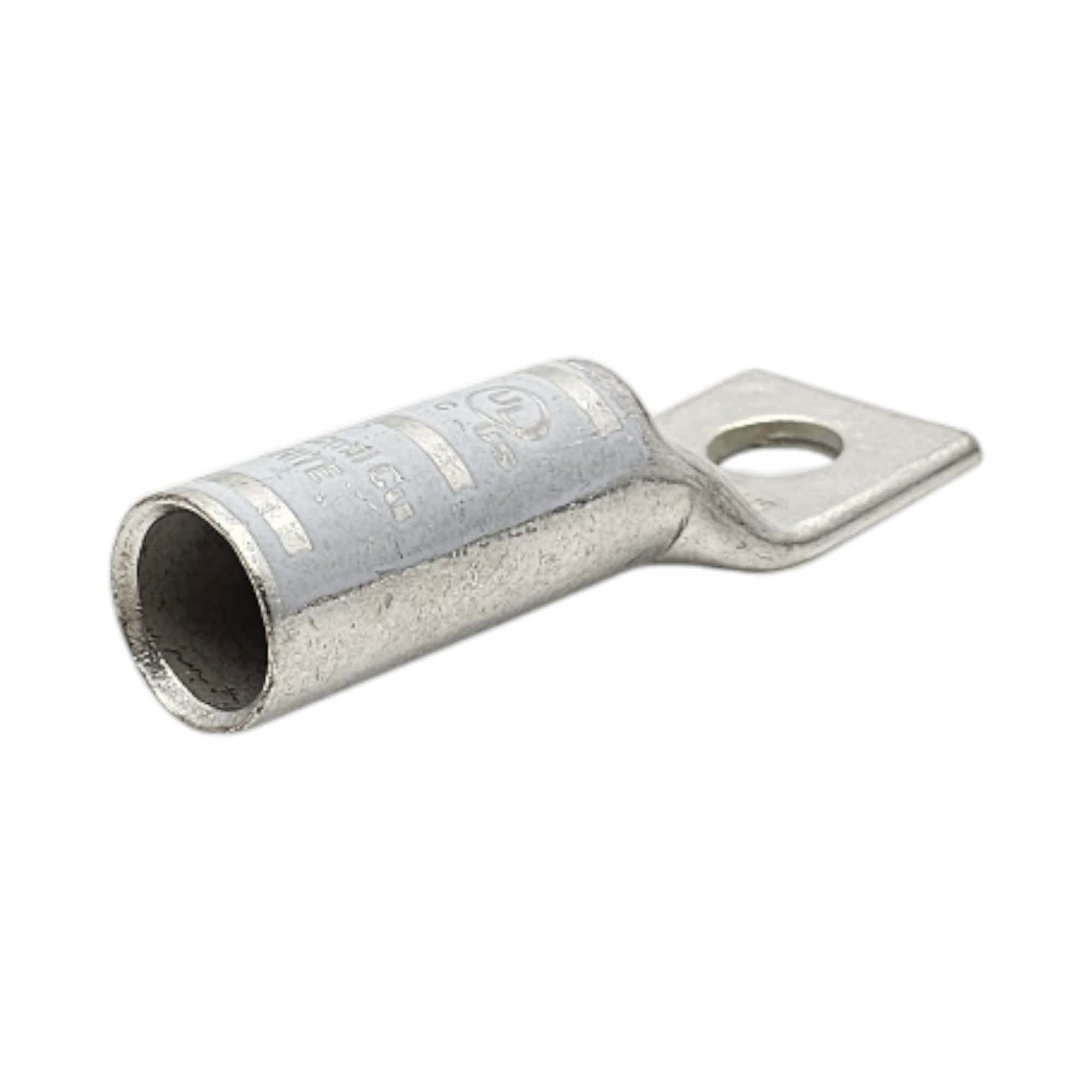

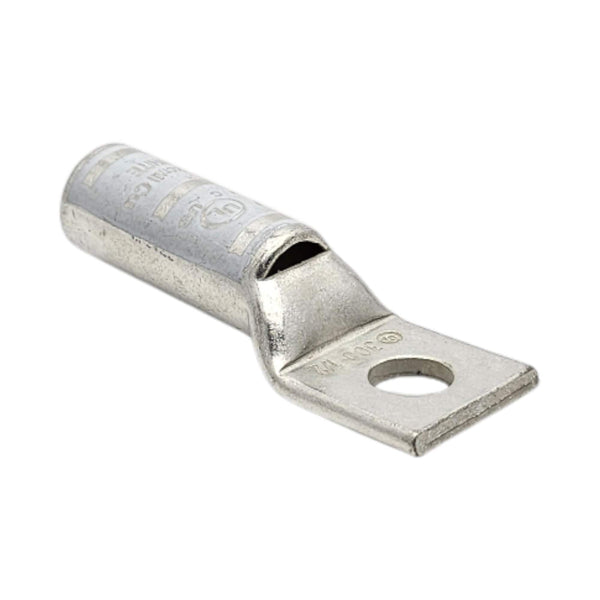

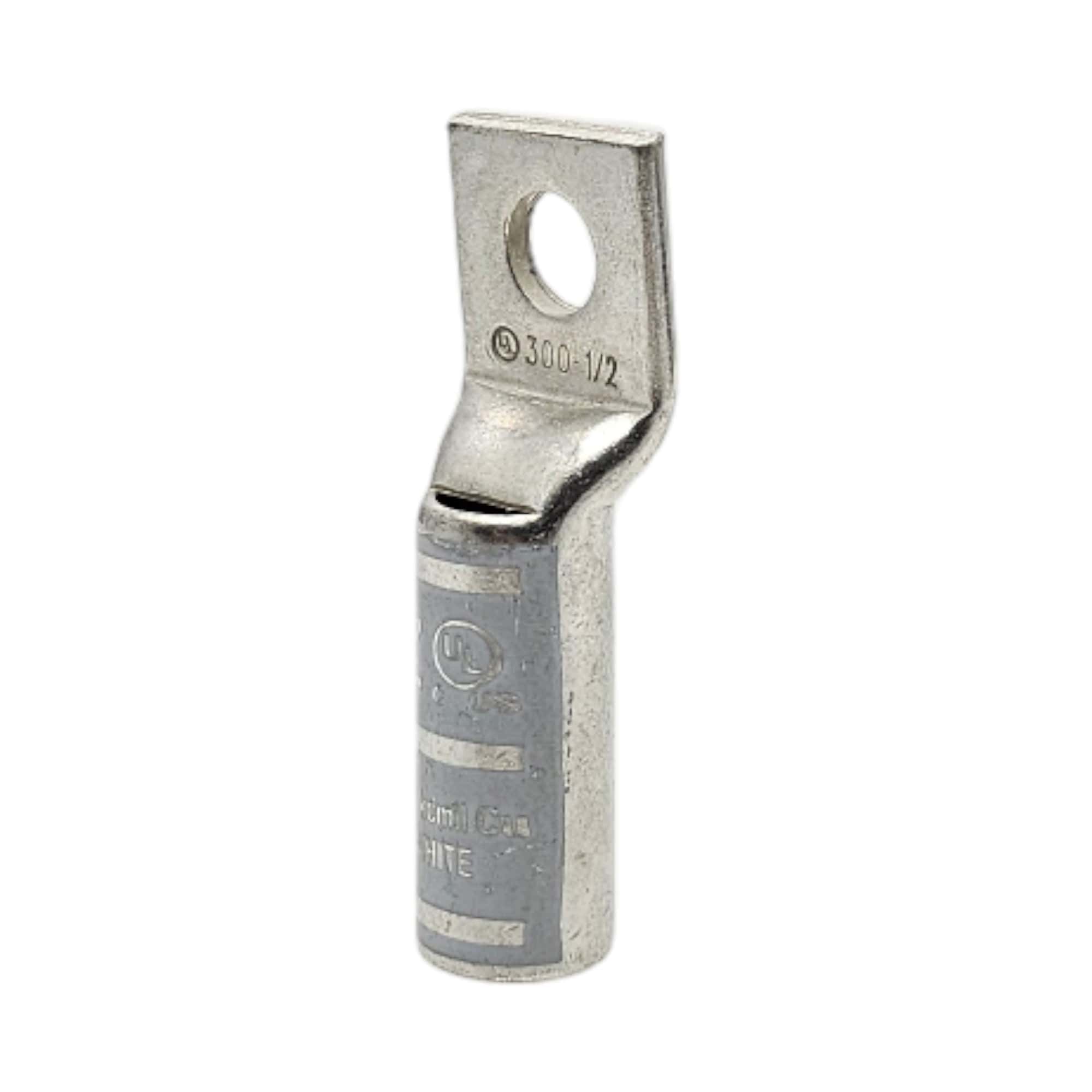

The Conversions Tech Copper Compression Lug is expertly designed to provide reliable electrical connections for high-performance systems. Accommodating a conductor size of 300 MCM, this lug features a 1-hole design with a 1/2-inch bolt size for secure, stable connections. Its long barrel construction improves conductivity and ensures consistent performance, while the durable tin-plated finish offers superior corrosion resistance. The white color code enables easy identification, making it an ideal choice for a wide range of electrical applications, from industrial to commercial settings.
Key Features
- High-Quality Copper Construction: Provides excellent conductivity and ensures long-lasting, reliable electrical connections for 300 MCM conductors.
- 1-Hole Design: Features a single hole with a 1/2-inch bolt size, ensuring secure and stable attachment to terminals or busbars.
- Long Barrel Construction: The extended barrel improves conductivity, ensuring a secure, efficient connection with consistent performance.
- Tin-Plated Finish: Offers superior corrosion resistance, enhancing the durability and performance of the connection in demanding environments.
- White Color Code: Simplifies identification and helps organize electrical systems for quick and easy installation.
- Reliable Performance: Built for high-performance electrical systems, this compression lug is ideal for both industrial and commercial applications that require secure and efficient connections.
Technical Specifications
| Material | Seamless Electro-Tin Plated Copper |
| Color | White |
| Overall Length | 3.837 Inches |
| Barrel Length | 2 Inches |
| Conductor Material | Copper |
| Voltage Rating | 35 kV |
| Conductor Size | 300 MCM |
| Stud Size | 1/2 Inch |
| Die Index | I-66 |
| Pad Size | 1.25 Inch L x 1.189 Inch W x 0.152 Inch Thickness |
| Pad Holes | 1 |
| Barrel Type | Long Barrel |
| ID x OD | 0.66 Inch x 0.812 Inch |
| Barrel Entry | Chamfered |
| Temperature Rating | 90°C |
