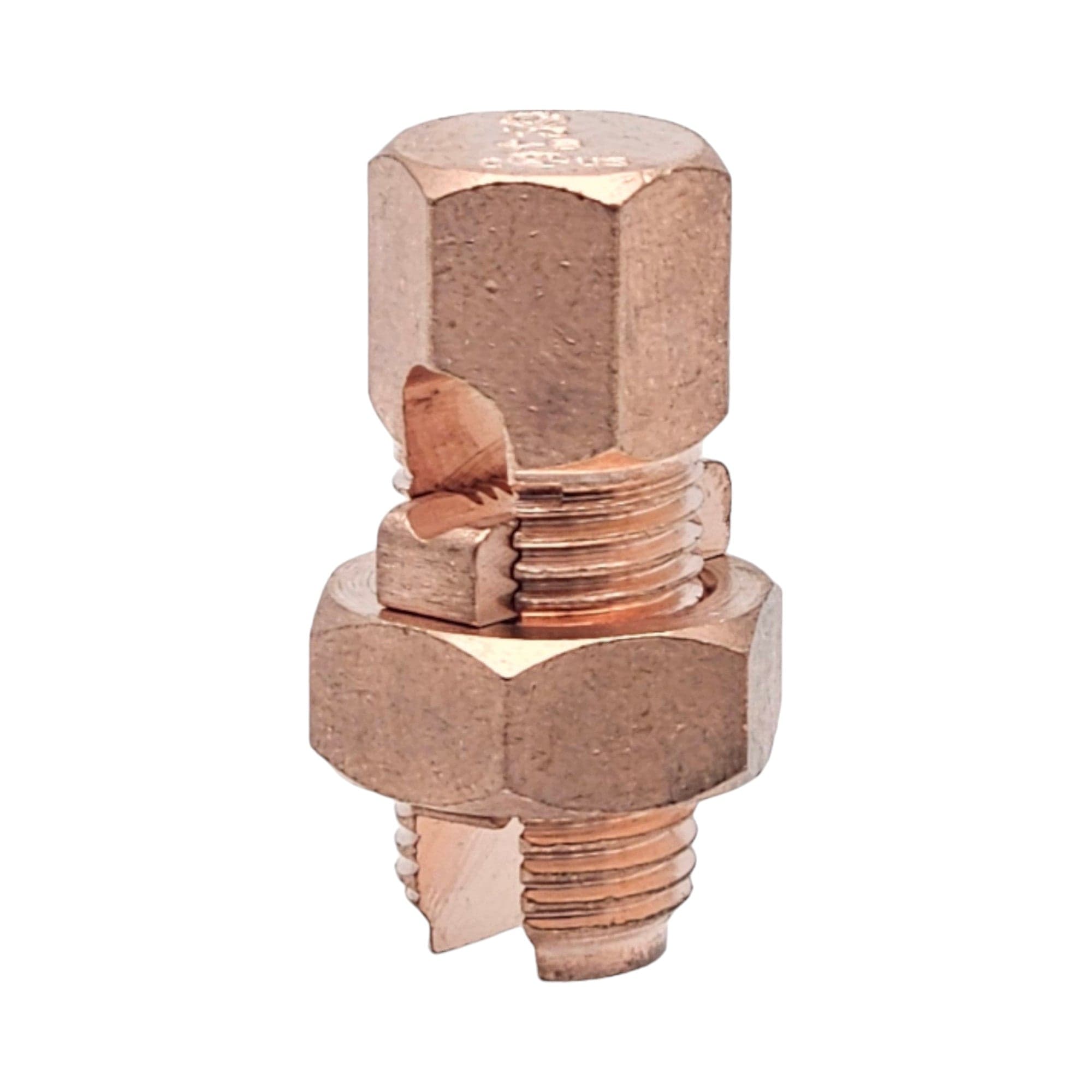

Split Bolt Connector 8 Awg (Max) - 12 Awg (Max)
Shipping calculated at checkout
SKU: 610-00812
Out of stock
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here
Brass Split Bolt Connector - Technical Overview
The Split Bolt Connector is a high-performance electrical component engineered for secure conductor splicing and termination. Constructed from high-conductivity brass, it ensures superior electrical performance, mechanical durability, and corrosion resistance. Designed for 8 Awg (Max) - 12 Awg (Max) conductors, this connector is widely used in industrial, commercial, and power distribution applications.
Technical Specifications
- Material: High-Strength Brass (CuZn Alloy)
- Conductor Compatibility: 8 Awg (Max) - 12 Awg (Max)
- Surface Treatment: Tin-plated or Nickel-plated for corrosion resistance
- Operating Temperature: Up to 90°C (194°F)
- Voltage Rating: Suitable for standard low- and medium-voltage electrical systems
- Mechanical Strength: High tensile strength for sustained clamping force
- Industry Compliance: UL Listed, ANSI C119.4, NEC Compliant
Applications
- Secure splicing and termination of large-gauge conductors in power distribution networks
- Electrical system modifications and expansions in commercial and industrial infrastructure
- High-load electrical circuits in utility, transportation, and renewable energy sectors
- Corrosion-resistant connection solutions for outdoor and high-humidity environments
- Effective grounding and bonding in electrical and telecommunication systems
Key Features
- Precision-engineered brass construction for excellent conductivity and mechanical strength
- Robust clamping mechanism ensures a stable electrical connection with high-pressure contact
- Corrosion-resistant plating (tin or nickel) enhances longevity in harsh conditions
- Easy installation with a tool-friendly design for quick and secure tightening
- Versatile use across industrial, manufacturing, and electrical distribution applications
- Industry-certified compliance ensures safe and reliable performance
This Brass Split Bolt Connector delivers a high-integrity electrical connection with outstanding durability, making it an essential component for demanding electrical installations.
