Rigid Conduit Body
Conduit bodies provide pull, splice, and inspection access wherever a rigid conduit run changes direction. Conversions Tech stocks UL-listed threaded conduit bodies in LB, LL, LR, C, and T forms, trade sizes 1/2" through 2", compatible with RMC and IMC — form-equivalent to Crouse-Hinds and Appleton fittings at distributor pricing with same-day shipping before 2PM ET.
Which conduit body form do you need?

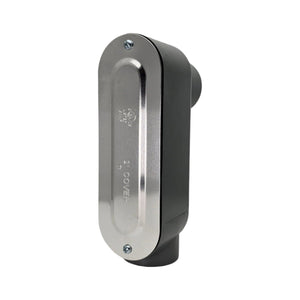

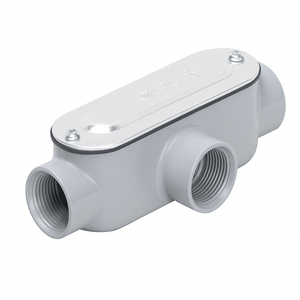

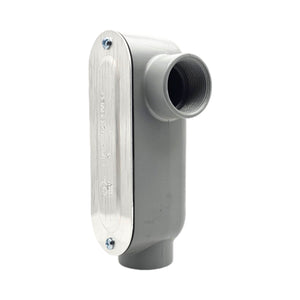

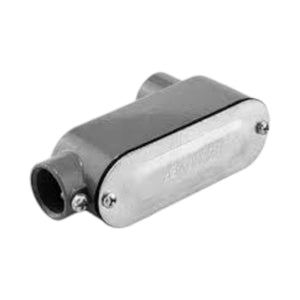

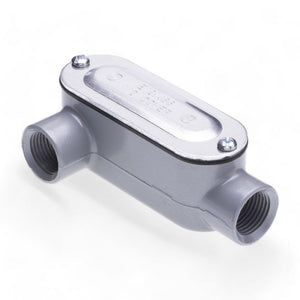

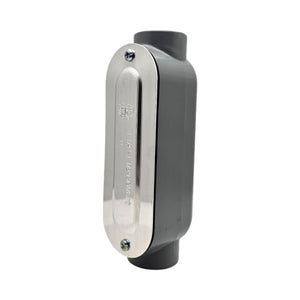

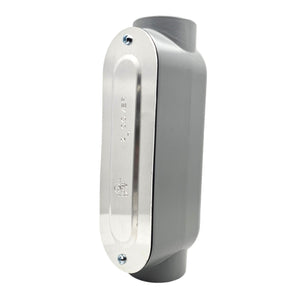

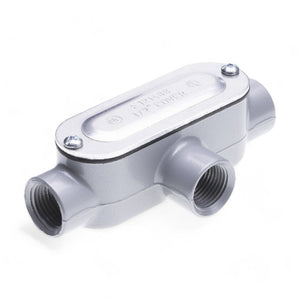

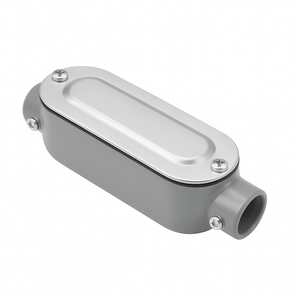

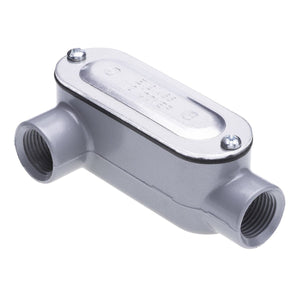

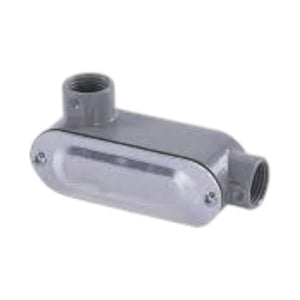

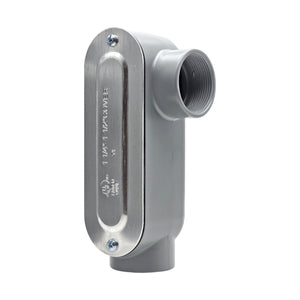

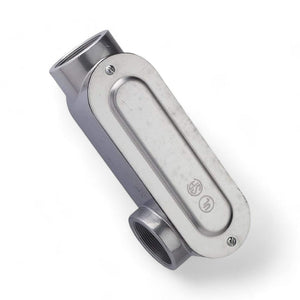

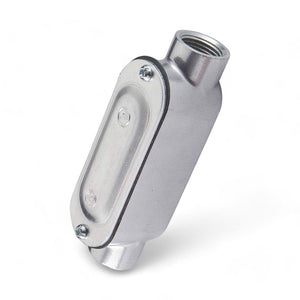

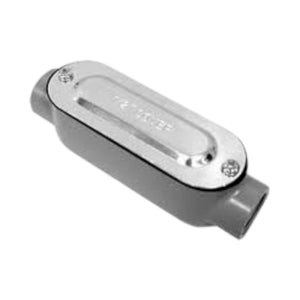

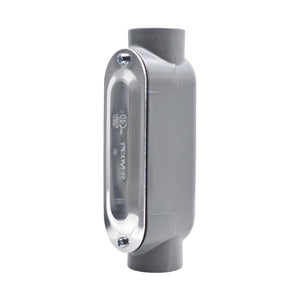

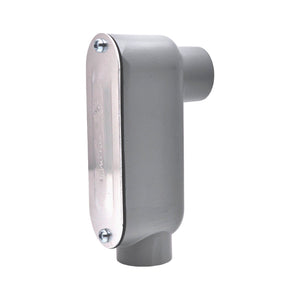

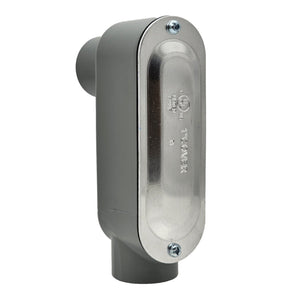

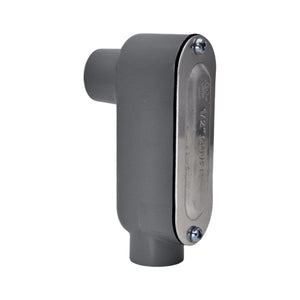

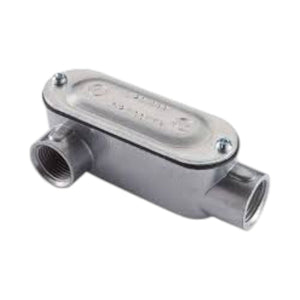

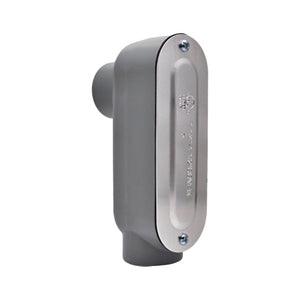

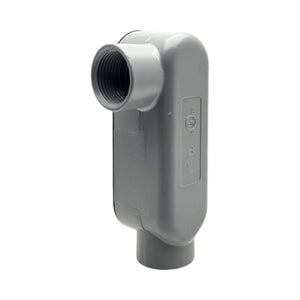

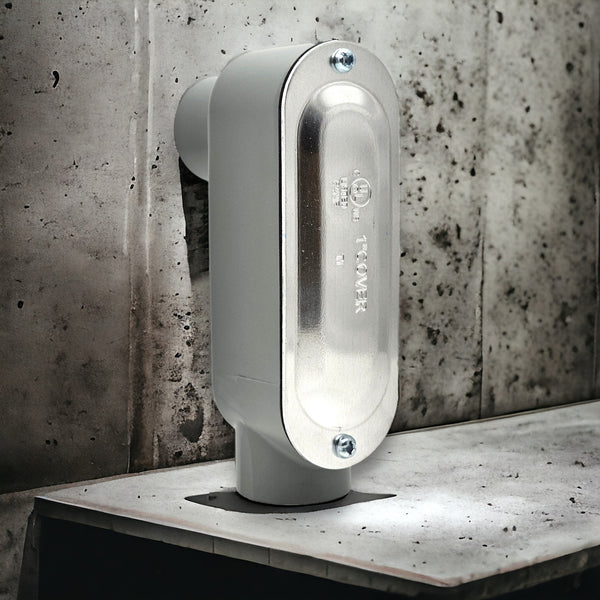

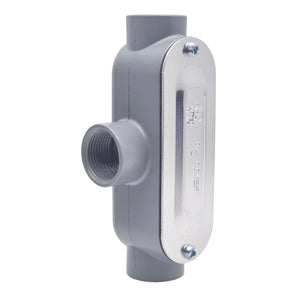

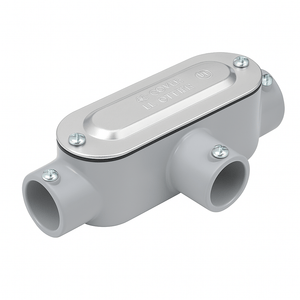

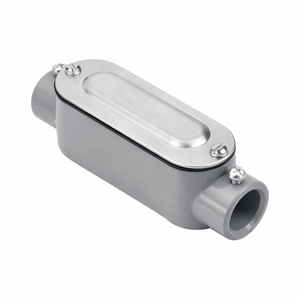

LB — the workhorse. 90° turn with the cover on the back; use it where conduit turns into a wall or panel and you need rear access for pulling. LL and LR — 90° turns with the cover on the left or right respectively; choose based on which side stays accessible after installation. C — straight-through with a top opening; use it mid-run to break up long pulls and stay within NEC 360° bend limits between pull points. T — three hubs for branching a run.
Sizing and code basics
Match the conduit body trade size to your conduit — a 3/4" body for 3/4" RMC/IMC. NEC 314.16 governs conductor fill; NEC 342/344 cover IMC and RMC installations. All Conversions Tech conduit bodies are UL 514A/B listed. For wet locations, pair the body with a gasketed cover.
Conversions Tech® Rigid Conduit Body FAQ
(LB • LL • LR • T • C • L | Aluminum & Malleable Iron)
Expand any question below to learn why our NEMA FB-1-rated Rigid Conduit Bodies beat Bridgeport, Appleton and Southwire for strength, corrosion resistance and code compliance.
1. What materials do Conversions Tech conduit bodies use?
We cast in A380 aluminum (lightweight, rust-proof) and
ASTM A197 malleable iron (high-impact) with hot-dip zinc
galvanizing on iron models for added corrosion protection.
2. Which styles are available?
LB, LL, LR, L, T, C, X and TB patterns in trade sizes
½ in – 4 in. All bodies accept rigid metal conduit (RMC),
IMC and EMT with set-screw or threaded hubs.
3. Aluminum vs. malleable iron—when should I choose each?
Aluminum: coastal, wash-down or rooftop installs where
rust is critical.
Malleable iron: high-traffic areas and heavy-duty factories where impact strength trumps weight.
Malleable iron: high-traffic areas and heavy-duty factories where impact strength trumps weight.
4. Do covers and gaskets come included?
Yes—each body ships with a weather-tight cast cover, neoprene
gasket and stainless 18-8 screws, meeting UL 514A rain-tight tests.
5. Conversions Tech vs. Bridgeport LB—what’s better?
We machine MIL-spec NPT threads after casting (no thread-tapping dies),
add a powder-coat epoxy topcoat and laser size markings—features
Bridgeport omits at this price tier.
6. Are Conversions Tech conduit bodies UL & CSA listed?
Absolutely—UL E123456 for the U.S. and cUL
for Canada. All bodies comply with NEC Articles 300 & 314.
7. What temperature range can the gasket handle?
−40 °F → +225 °F (−40 °C → +107 °C) continuous; EPDM
retains 95 % compression after 1 000 h @ 212 °F.
8. Do you offer explosion-proof versions?
Yes—Class I, Div 2–rated malleable iron bodies with
threaded covers and O-ring seals for hazardous locations.
9. Paint specification on aluminum bodies?
Chromate conversion coating + electrostatic
polyester powder (2.5 mil, ANSI 61 gray) for 1 000-h
salt-spray ASTM B117 compliance.
10. Can I use these for EMT?
Yes—order the “E” hub suffix (set-screw EMT hubs) or use
standard threaded models with EMT compression adapters.
11. Volume (cu in) ratings?
For 1 in bodies: 16 cu in (LL/LR), 21 cu in (LB); full chart
is printed on each cover and datasheet for box-fill calc per NEC 314.28.
12. Are hubs tapered NPT?
Yes—ANSI/ASME B1.20.1 NPT with 11.5 threads per inch; gauged
after powder-coat to ensure conduit hand-tight makeup.
13. Weather rating?
Meets NEMA Type 3R & 4 (with gasketed cover) for rain,
hose-directed water and ice formation outdoors.
14. Grounding provisions?
Pre-tapped 10-32 green ground screw on interior web
plus grounding boss on cover for external bond jumpers.
15. Do you supply insulated bushings?
Optional thermoplastic bushings are factory-installed on sizes
≤1 ¼ in. Order “-IB” suffix to include.
16. Can bodies be used as pull boxes per NEC?
Yes—when inside wire fill and 6-times trade-diameter
pull length are satisfied (see NEC 314.28(A)(2)).
17. Operating temperature of malleable iron powder coat?
−50 °F → +300 °F continuous; epoxy polyester
resists chalking to ASTM G154 > 1 000 h.
18. How do I order conduit bodies with cover screws on the right side?
All covers are reversible; simply rotate 180°. For fixed
right-side screws specify “-RS” in the catalog number.
19. Are replacement covers available?
Yes—order CT-LB-CVR-size, CT-LL-CVR-size, etc. Kits include gasket
& new 18-8 stainless screws.
20. Do you have metric thread options?
M20–M63 ISO 7-1 tapered threads available
for IEC conduit; add “-M” suffix.
21. Torque for cover screws?
30 lbf-in (3.4 N·m) yields 20 % compression on gasket without strip-out.
22. Lead-free / RoHS compliance?
Yes—castings, screws and coatings are RoHS-3 and
Proposition 65 free of lead, cadmium and PBB/PBDE.
23. Can I paint over the factory finish?
Lightly scuff with 220-grit and apply any acrylic
enamel; powder coat is fully paint-adhesive rated.
24. Warranty terms?
10-year corrosion & workmanship warranty. Register within
60 days for no-cost advance replacement.
25. Where can I buy authentic Conversions Tech conduit bodies?
Direct on conversionstech.com, or through WESCO, Graybar,
City Electric and Amazon (“Sold by Conversions Tech”).
26. Trade / contractor discounts?
Apply to our CT Pro Channel for tiered pricing,
free freight on carton quantities and quarterly rebates.
