3-Port Coax Wall Plate – Black Single-Gang Faceplate
Shipping calculated at checkout
SKU: 500-201
254 in stock
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here

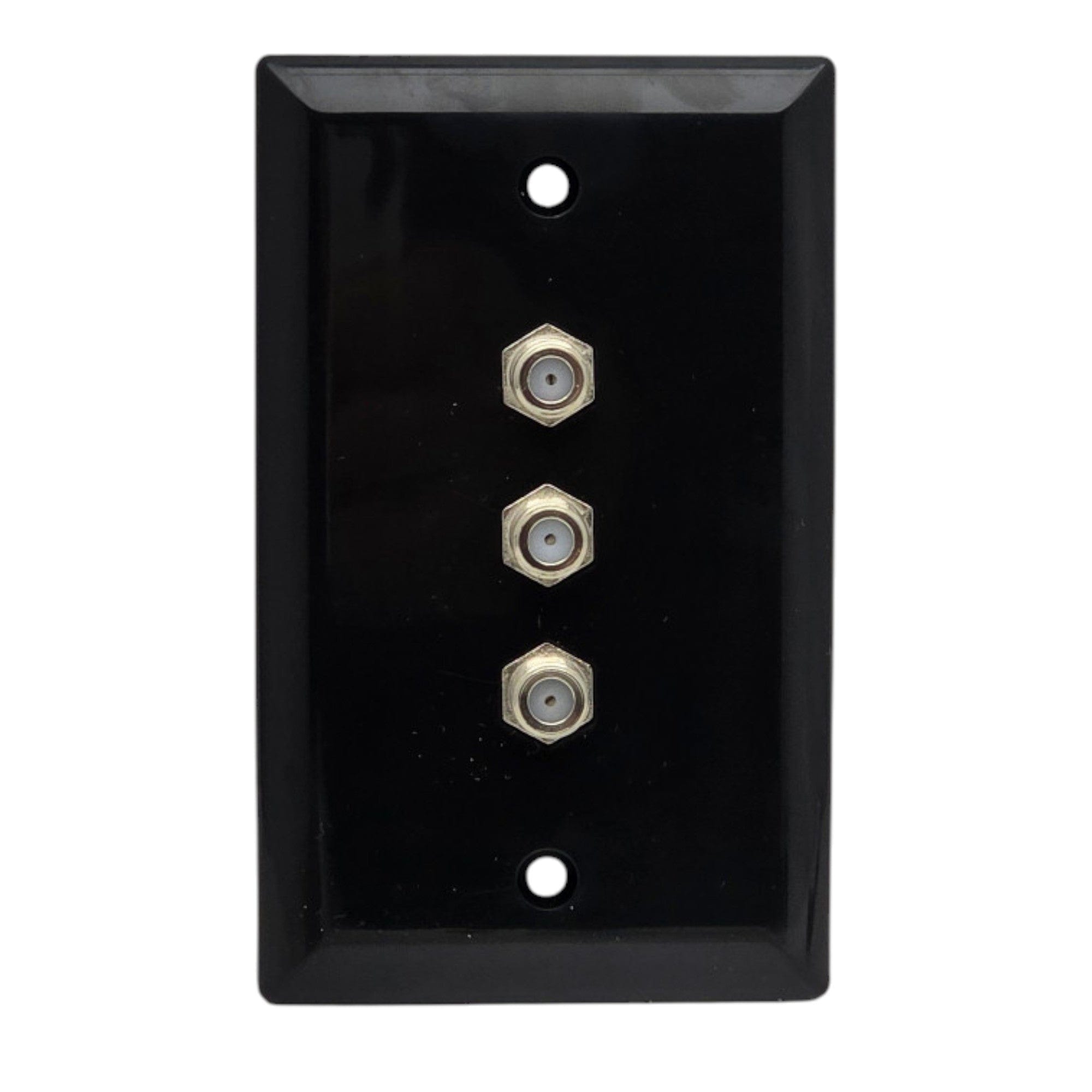

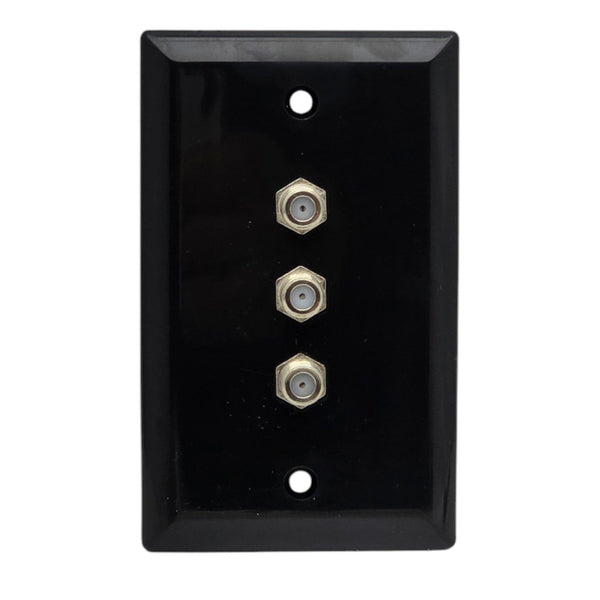

3-Port Coax Wall Plate – Black Single-Gang Faceplate
Upgrade any home theater, RV, or commercial AV install with the Conversions Tech™ 3-Port Coaxial Wall Plate. Engineered for crystal-clear RF and video signals, this single-gang faceplate gives you three independent F-type feed-through connectors in one sleek, low-profile assembly—perfect for satellite, cable TV, over-the-air antennas, or multi-room distribution.
Key Benefits (Why installers pick Conversions Tech)
- Triple F-Type Convenience — route up to three RG-6/RG-59 lines through a single wall opening—no extra drilling, no clutter.
- High-Bandwidth Performance — 75 Ω nickel-plated barrels maintain <0.1 dB insertion loss up to 3 GHz for 4K UHD, MoCA®, and DOCSIS 3.1 services.
- Installer-Friendly Design — pre-loaded feed-throughs snap into place; just terminate the coax and tighten two screws—done in minutes.
- Rugged ABS Housing — glossy black, impact-resistant plate resists cracking and UV fade; blends with modern AV gear.
- Universal Fit — standard single-gang footprint mounts to any US-style junction box or low-voltage mud ring.
- Conversions Tech™ Quality — 100% factory tested for signal integrity; backed by our hassle-free limited lifetime warranty.
Technical Specifications
| Brand | Conversions Tech™ |
| Model | CT-WP-3F-BK |
| Connector Type | 3 × F-type female feed-through |
| Impedance | 75 Ω nominal |
| Frequency Range | 5 MHz – 3 GHz |
| Insertion Loss | < 0.1 dB @ 1 GHz |
| Return Loss | > 18 dB |
| Plate Material | High-impact UL 94V-0 ABS |
| Color / Finish | Gloss Black |
| Dimensions | 4.5 in H × 2.75 in W (standard single-gang) |
| Mounting Screws | Black-oxide #6-32 × 25 mm (included) |
| Certifications | RoHS 2, REACH-SVHC compliant |
| Warranty | Limited Lifetime (Conversions Tech™) |
Ideal Applications
- Home theater TV, DVR, and OTA antenna hookups
- RV or marine AV distribution panels
- Structured wiring closets & rack installations
- Hotel & MDUs needing multi-room RF splits
