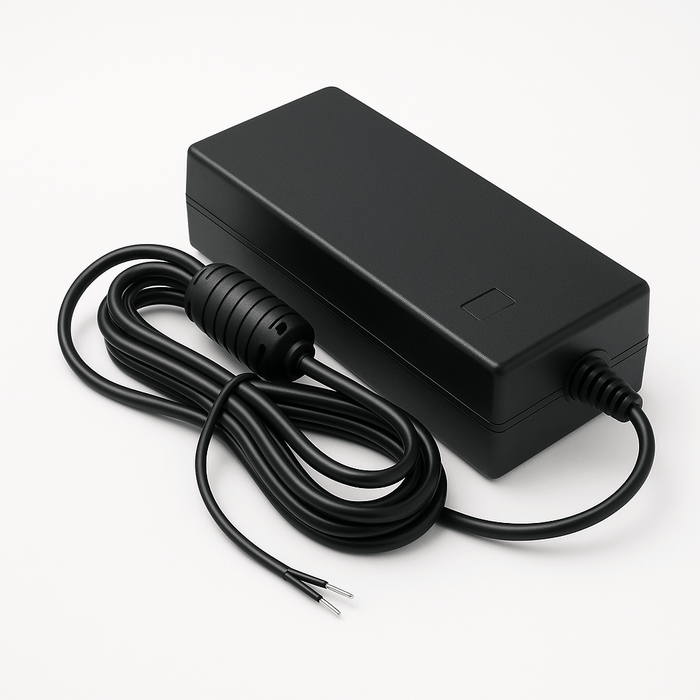

12 Volt 4 amp power supply
Shipping calculated at checkout
SKU: PS12V4000
150 in stock
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here
The PS12V4000 delivers a rock-solid 12-volt rail for embedded controls, LED arrays and telecom subsystems. A high-frequency LLC topology, synchronous rectification and low-ESR polymer caps yield < 50 mVpp ripple while maintaining ≥ 88 % efficiency from any global mains input. Factory-tinned 18 AWG leads drop straight into screw terminals or PCB solder pads—no barrel jacks, no crimp time.
Key Technical Advantages
- Precision Regulation ±1 %/±2 % (line/load) via opto-isolated secondary feedback.
- Class B EMC Headroom — CISPR 32 with 6 dB margin; no extra ferrites.
- 4 kV EFT / 2 kV Surge Immunity per IEC 61000-4-4/5 without external MOVs.
- All-Round Protection: OCP, OVP, OTP, hiccup-mode SCP (auto-recover < 200 ms).
- MTBF > 250 000 h (MIL-HDBK-217F, 25 °C, GB)—105 °C polymer caps & SiC diodes.
- Wide Thermals: –20 °C … +70 °C; derate 2 % / °C beyond 50 °C.
- Pre-Tinned Leads: 18 AWG OFHC Cu, 150 mm, SAC305 tinning (IPC J-STD-002B).
Electrical & Mechanical Specifications
| Input Voltage | 100–240 VAC ± 10 % 47–63 Hz |
|---|---|
| Inrush Current | < 35 A peak @ 230 VAC, cold start |
| Output Voltage / Current | 12 V DC @ 0 – 4 A (factory set 12.03 V) |
| Efficiency (typ.) | ≥ 88 % @ 115 VAC, full load |
| Ripple & Noise | < 50 mVpp (20 MHz BW, 22 µF + 0.1 µF) |
| Hold-up Time | > 20 ms @ 115 VAC, full load |
| Isolation | 3 kVAC PRI-SEC, 1 kVAC PRI-FG |
| Case / Dimensions | V-0 PC, 108 × 46 × 32 mm |
| Weight | 185 g (nominal) |
| Output Leads | Red + / Black –, 18 AWG, 150 mm, tinned |
| Mounting | M3 flanges or DIN-rail clip (optional) |
Compliance & Certifications
- UL / EN / IEC 62368-1 safety approvals
- FCC Part 15 & EN 55032 Class B EMC
- EN 55024 immunity (IEC 61000-4-2/3/4/5/6/8/11)
- RoHS 3 & REACH-SVHC free
Typical Applications
- IIoT gateways & PLC I/O modules
- High-density LED strip or ribbon lighting (24–48 W)
- 12 V servo drives & BLDC motor controllers
- Telecom fan trays & PoE injectors
- Lab/test-bench rigs requiring screw-terminal inputs
