20-Foot RG179 Coaxial Jumper Cable (BNC Male to BNC Female)
Shipping calculated at checkout
SKU: 1777-220
Only 2 in stock
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here

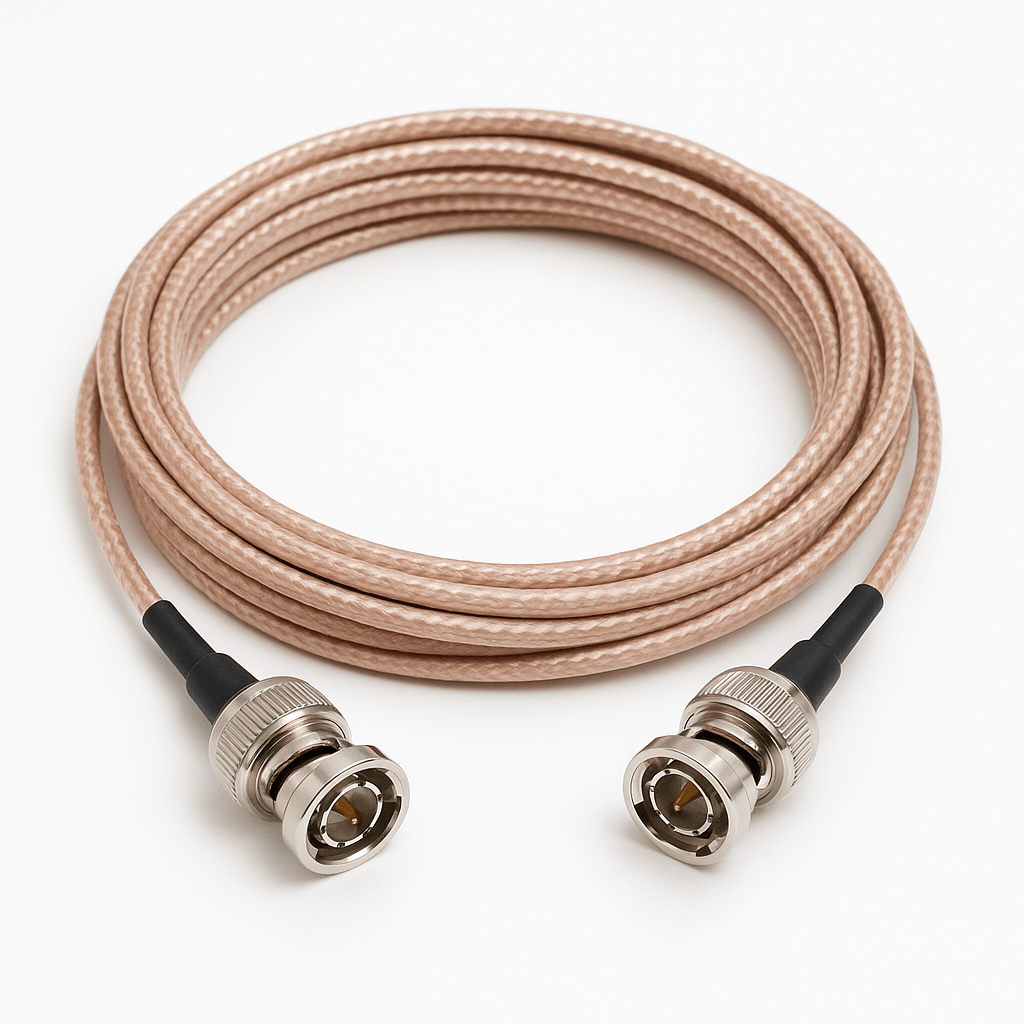

Conversions Tech 20-foot RG179 coaxial jumper cable engineered for applications requiring a 75 Ω characteristic impedance and minimal signal attenuation. This assembly features a BNC male connector on one end and a BNC female connector on the other, supporting stable signal integrity up to moderate RF, video, and test frequencies.
Key Attributes
- Cable Type: RG179 (75 Ω nominal impedance)
- Dielectric: PTFE (polytetrafluoroethylene) for low dielectric loss
- Shielding: Silver- or tin-plated copper braid providing EMI/RFI protection

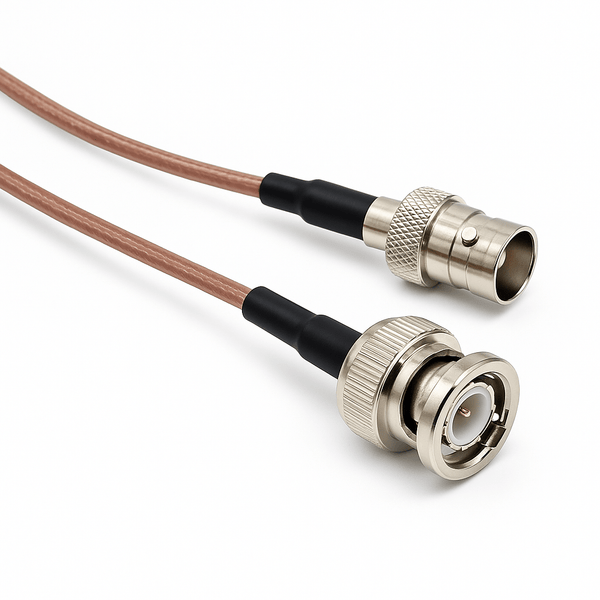

- Connectors: BNC Male (one end) and BNC Female (other end)
- Jacket Material: PTFE or FEP (manufacturer-specific) with high-temperature resistance
- Cable Diameter: Small footprint allows easy routing in constrained spaces
Use Cases
- Laboratory & Testing: Reliable connections for oscilloscopes, spectrum analyzers, signal generators, and other bench equipment.
- Professional A/V: Ideal for analog or SDI video signal transmission in 75 Ω broadcast systems.
- Security & Surveillance: Compact interconnections for CCTV cameras and DVR inputs.
- RF & Microwave Applications: Suitable for low-power antenna feeds and general RF interconnects within specified frequency ranges.
Technical Specifications
| Characteristic Impedance | 75 Ω (nominal) |
|---|---|
| Frequency Range | DC to ~3 GHz (application-dependent) |
| Attenuation (Typical @ 1 GHz) | ~28 dB per 100 m (scaled for 10 ft length) |
| Center Conductor | Silver-plated copper or copper-clad steel |
| Dielectric Material | Solid PTFE |
| Shielding | Silver-/tin-plated copper braid |
| Jacket Material | PTFE or FEP (high-temperature, chemical-resistant) |
| Operating Temperature Range | –55 °C to +200 °C (typical) |
| Connector Contacts | Brass or beryllium copper (silver-/gold-plated, depending on manufacturer) |
| Length | 20 ft (≈6.10 m) |
| Compliance | RoHS-compliant (confirm manufacturer documentation) |
```
