Insulated Tap Connectors 2 port dual-side Entry 4 AWG - 500 MCM
Shipping calculated at checkout
SKU: 610-1002500
Out of stock
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here

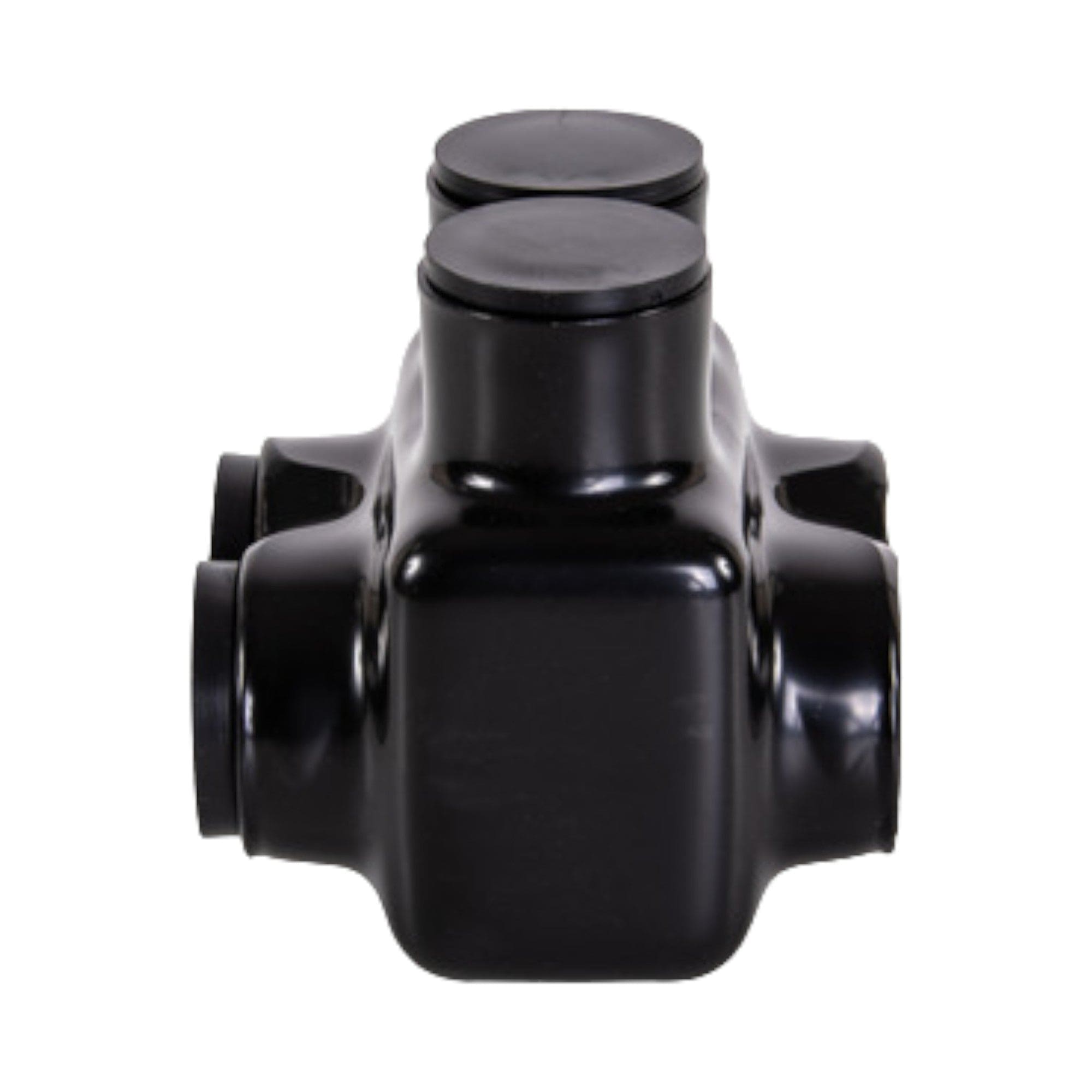

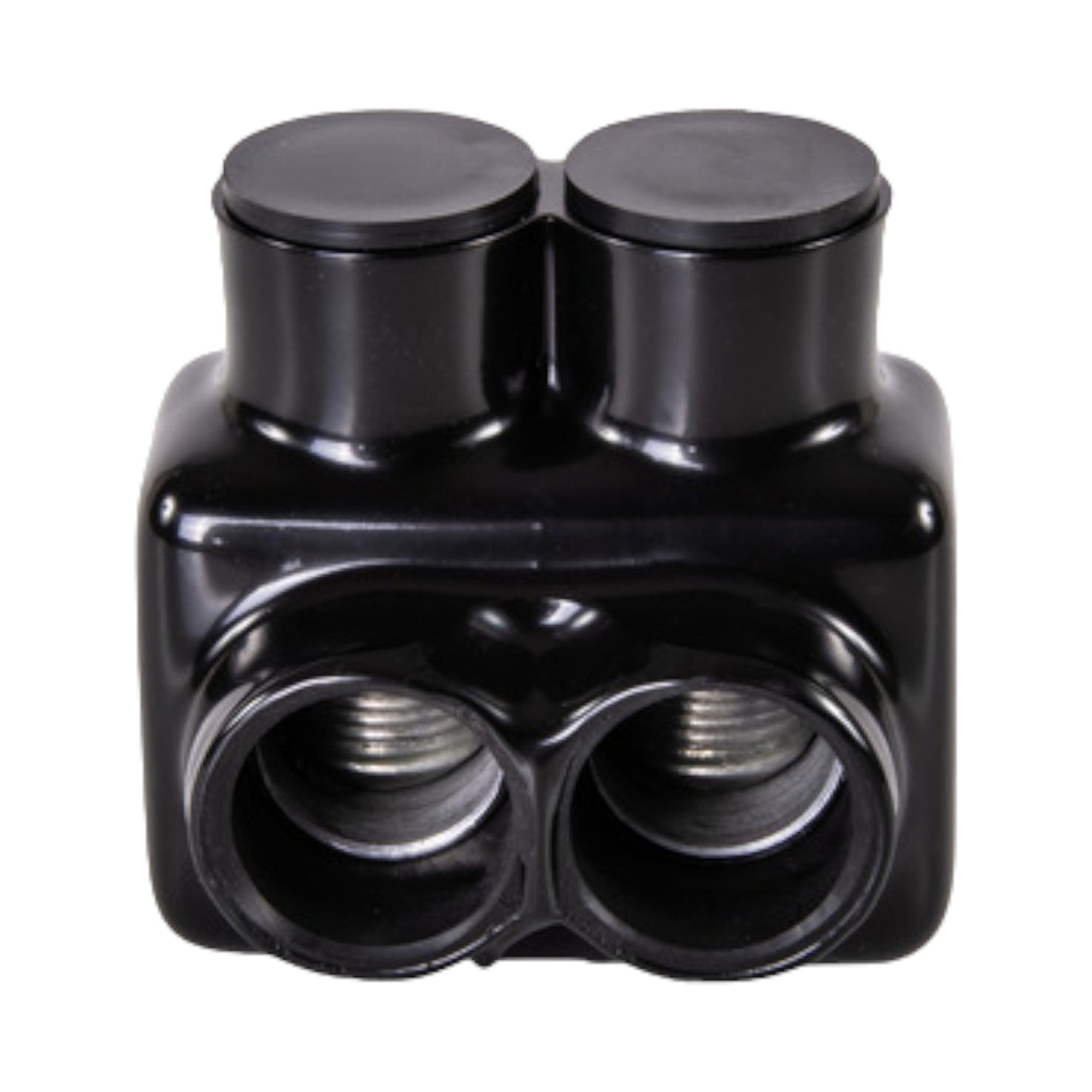

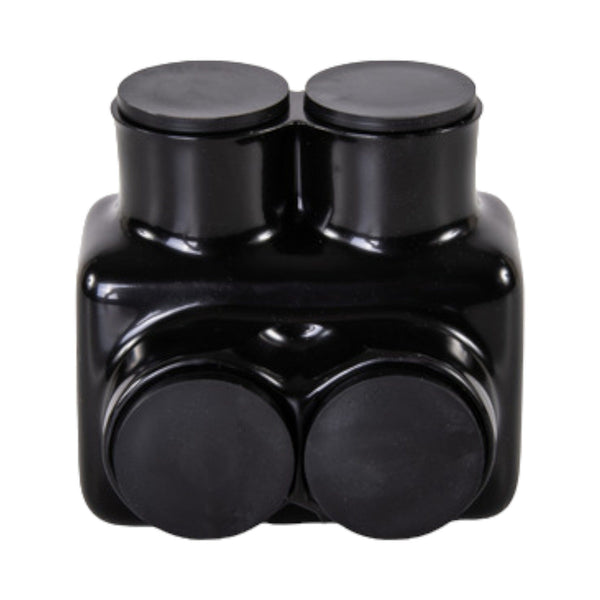

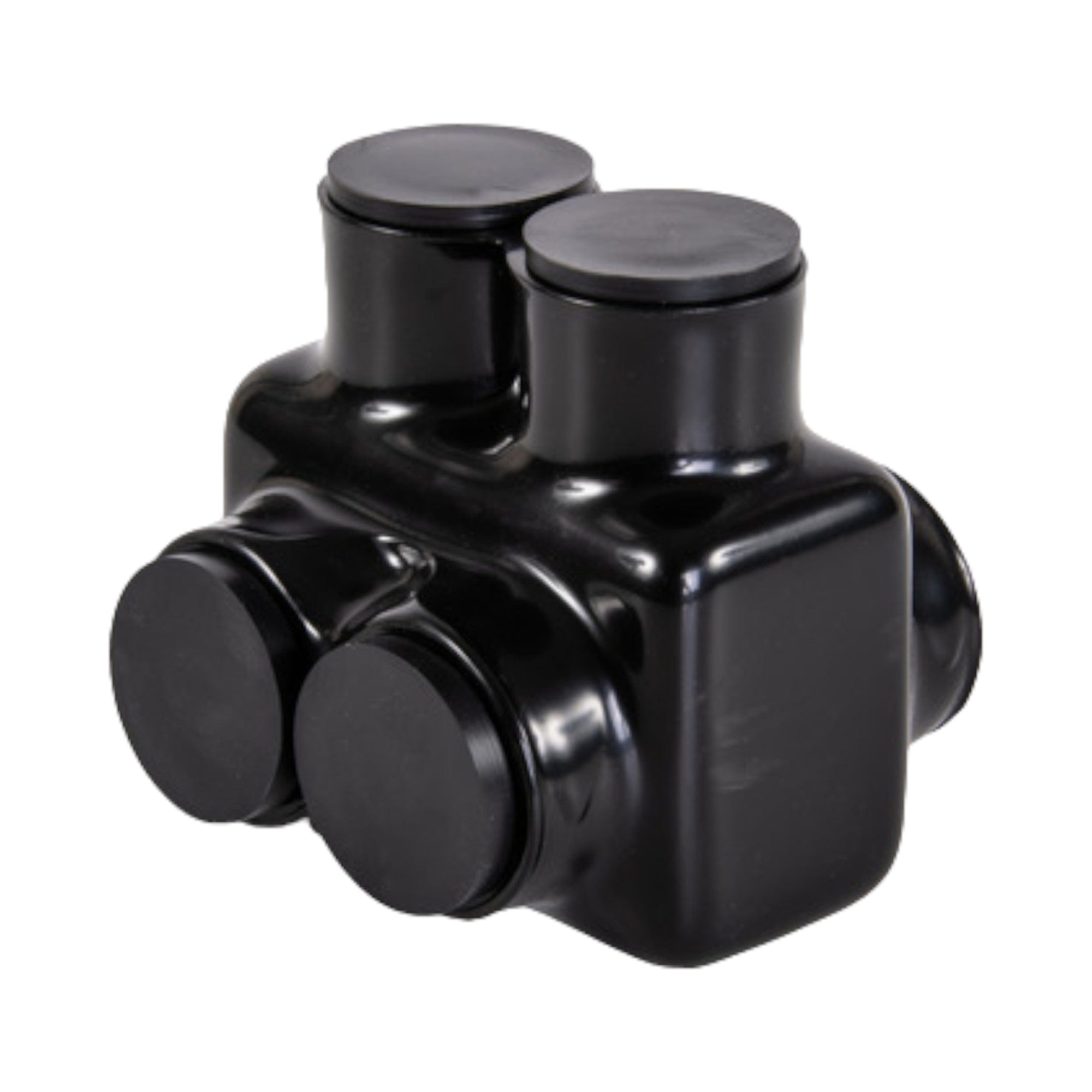

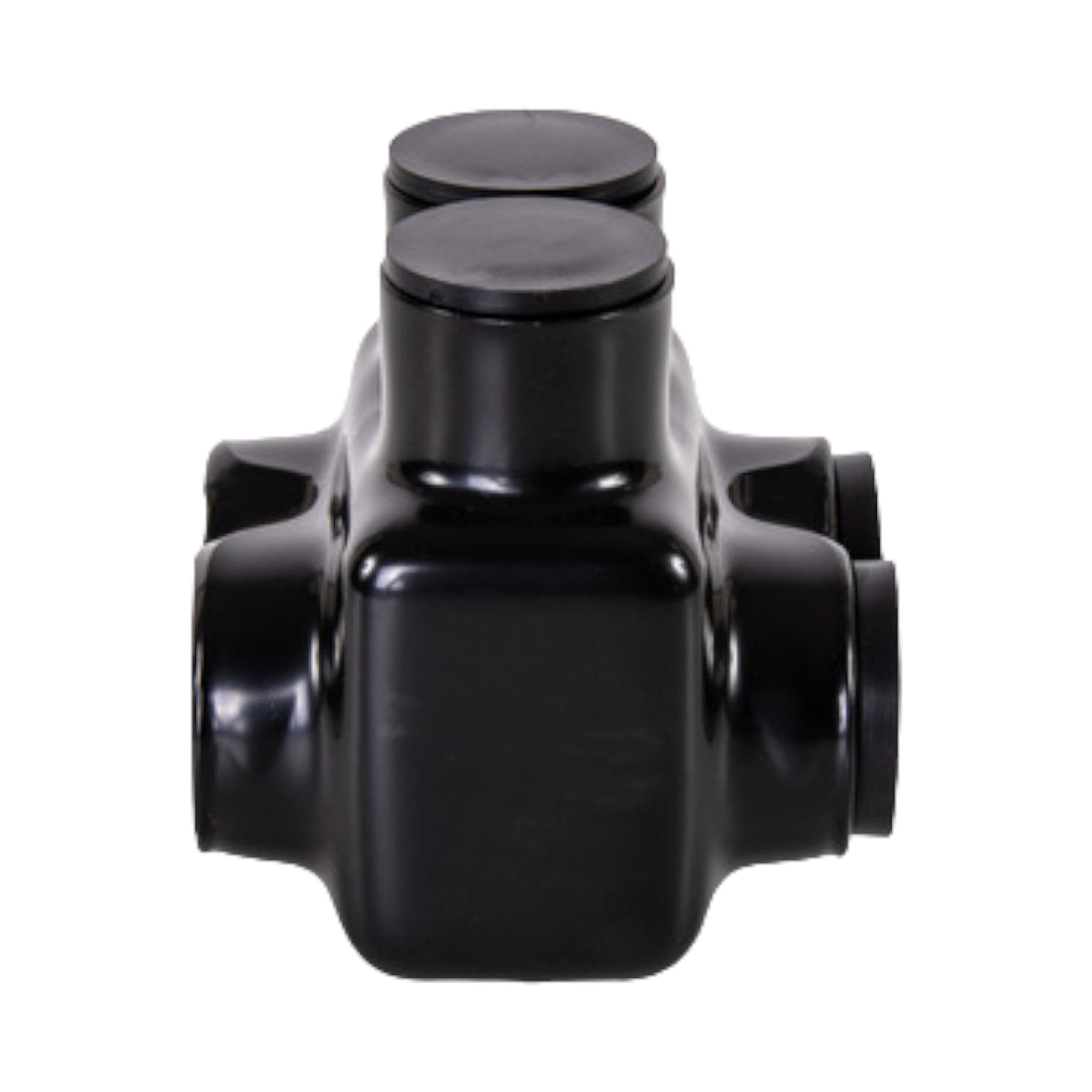

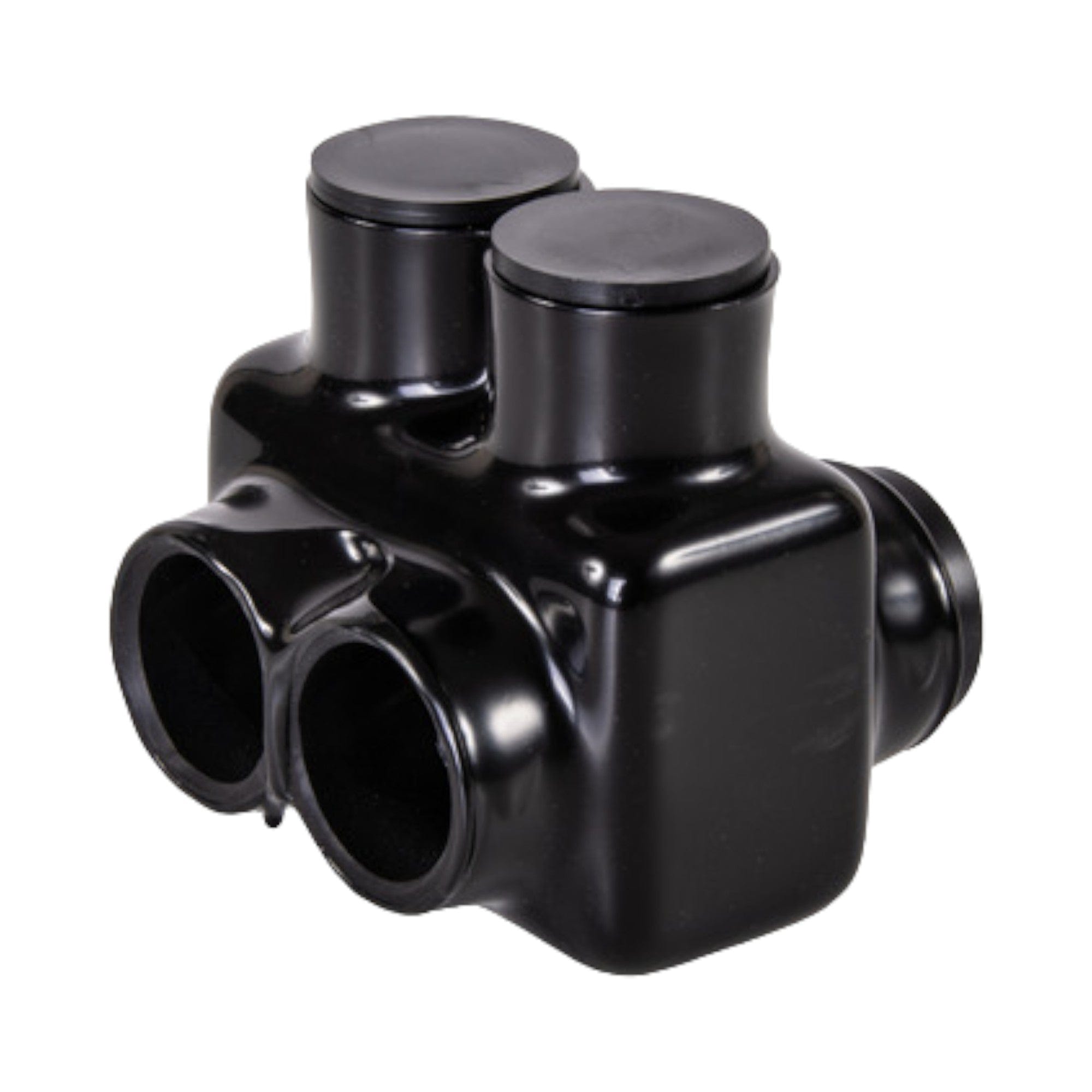

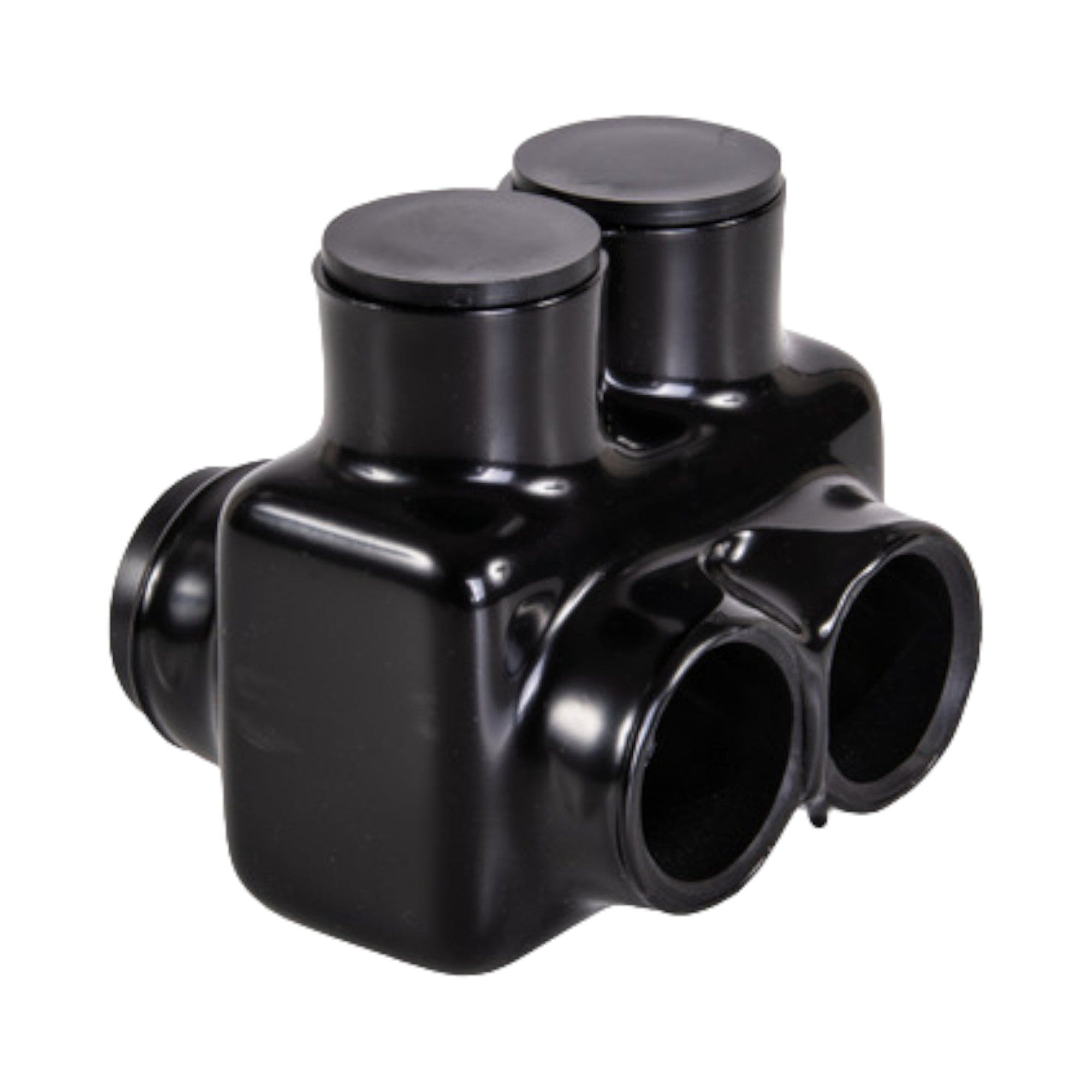

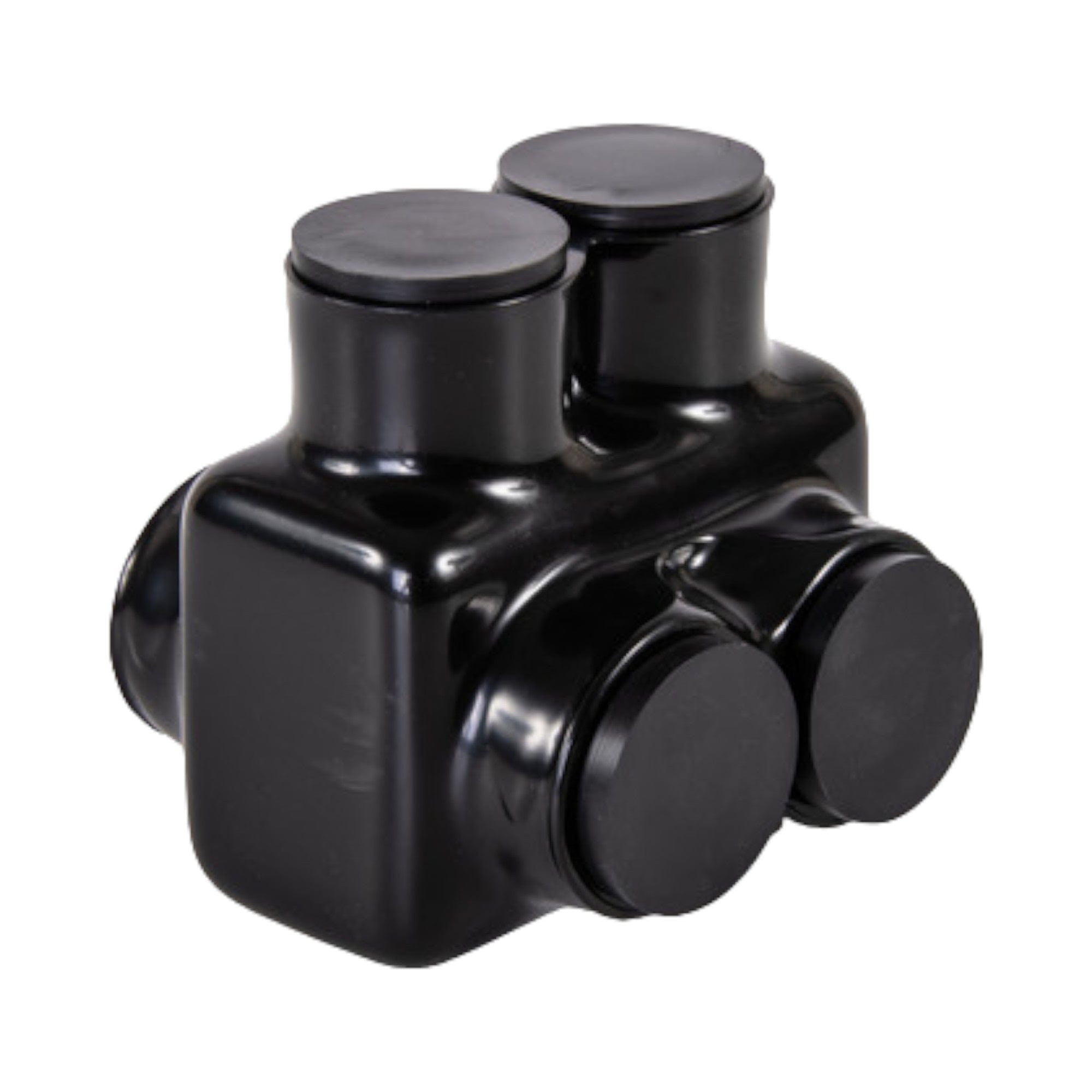

Black Multi-Tap Connectors form secure connections between multiple conductors with a rounded design and UV-resistant insulation coating. Installs with a hex key and torque wrench, with no need for cover and taping.
Key Features
- Secure Connections: Utilizes adjustable set screws and a rounded body design to create a high-pressure connection between conductors, ensuring reliability and minimal electrical resistance.
- Dual-Side Wire Entry: Form secure connections between 2 conductors quickly using the double-sided entry ports sized for wires between 500 MCM and 4 AWG.
- NEC 230.46 Compliance: Suitable for use on the line side of the service equipment as per the NEC article 230.46 requirement.
- Ergonomic Design: Rounded body with smooth plastisol insulation for comfortable gripping during installation.
- Removable Plugs: Each port and set screw includes a removable plug to prevent debris, moisture, and contaminants from entering the connector body.
- Pre-Filled Oxide Inhibitor: Entry ports pre-filled with oxide inhibitor gel to prevent corrosion, ensuring low and stable electrical resistance over time.
- Professional Performance: Durable plastisol insulation resists UV radiation, abrasion, and chemicals, ensuring reliable performance and extended service life.
Key Technical Specifications
Wire Gauge Range: 4 AWG to 500 MCM
Connection Type: Set Screw
Insulation Material: UV-resistant Plastisol
Features: Dual-Sided Entry, Removable Plugs, Pre-Filled Oxide Inhibitor
Voltage Rating: 600 V
Material: Aluminum
Finish: Plastisol Insulated (UV resistant)
Color: Black
UPC: 810166615518
Origin Country: US
Certifications: cULus, Meets NEC 230.46 Suitable for Line Side of Service
UL Standard: UL 486A/B
UL File No: E186991
Wire Cable Class: Class B, Class C
Temperature Rating: 90°C, AL9CU
Conductor Max Amps: Aluminum: 100 A, Copper: 130 A
Conductor Size Range: Aluminum: 4 AWG to 500 MCM
Conductor Type: Copper, Aluminum
Conductor Count: 2
Environmental Temperature: Cold Temperature rated to -45°C
Bolt and Screw Sizes
Number of Wire Binding Screws per Port: 1
Wire Binding Screw Size: 13/16
Wire Binding Torque: 375
Dimensions
Height (IN): 3.034
Download our detailed specification sheet and drawing for more information:
Download Specification Sheet Download Drawing
