Overview

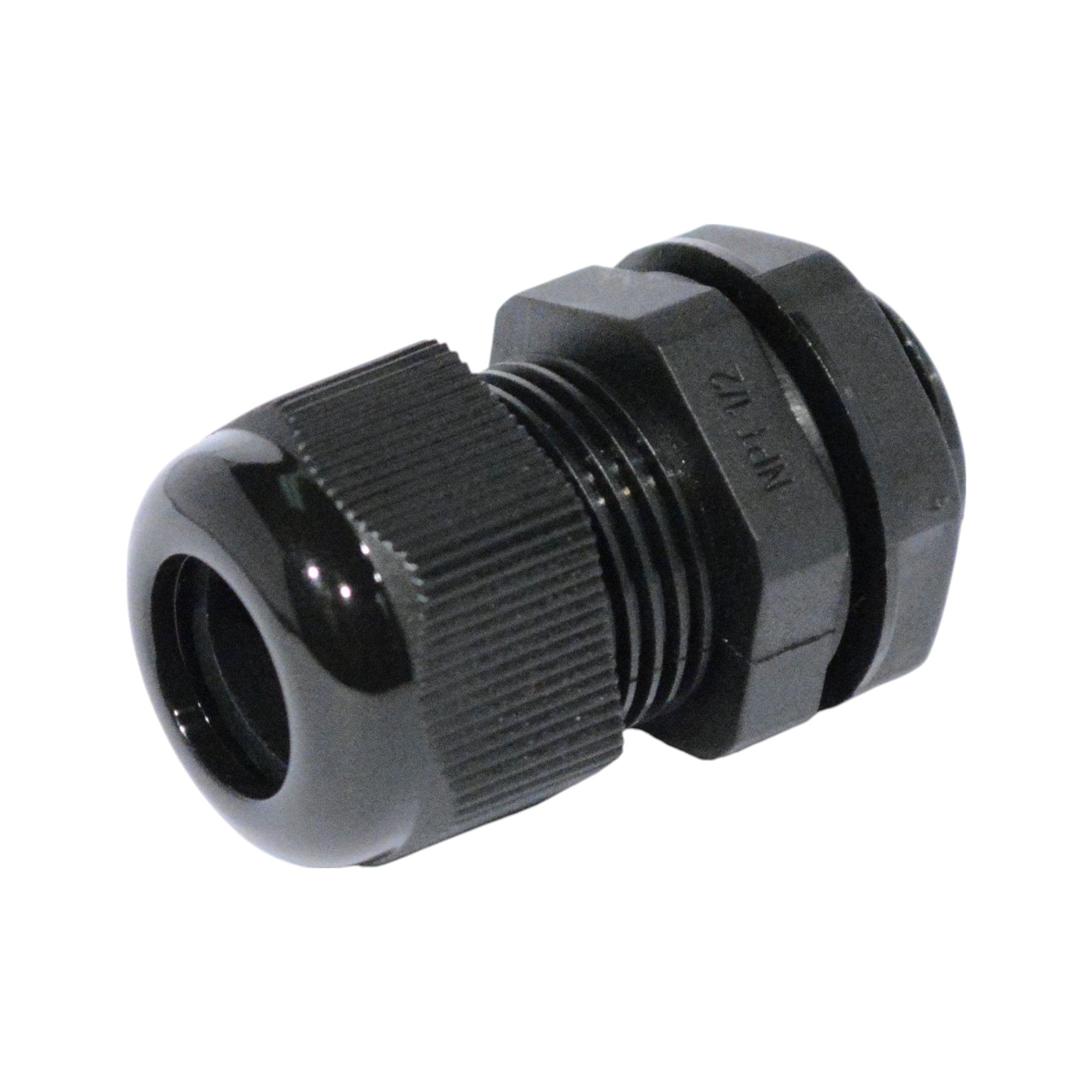

Conversions Tech™ CT-NPT-12-S
The slim ½-inch NPT nylon cable gland built for tight panels and fast installs. A UV-stabilised, halogen-free PA-6 body teams with an EPDM O-ring and CR/NBR compression sleeve to deliver an IP-68 / NEMA 6P seal that survives wash-downs, salt spray and −40 °C winters. Ideal for routing power, control and data leads through rooftop solar combiners, EV charge posts and industrial enclosures.
Key Features
- IP-68 / NEMA 6P — leak-free at 5 m submersion for 30 minutes.
- UL-94 V-2 PA-6 housing — corrosion-proof, halogen-free & UV-stable.
- Wide temp window — −40 °C → +105 °C continuous service.
- Self-locking ratchet threads defeat vibration on gensets & mobile gear.
- Supplied ready-to-install with lock-nut and sealing washer.
- ANSI/ASME B1.20.1 NPT taper • CE-marked • RoHS compliant.
Typical Applications
- PV combiner boxes & micro-inverter drops
- AC/DC EV charge posts & battery-swap cabinets
- PLC enclosures, VFD drives & pump skids
- LED high-bay retrofits & outdoor security cameras
- Marine / RV cable lead-ins through GRP or aluminium skins
Technical Specifications
| Parameter | Value |
|---|---|
| Part Number | CT-NPT-12-S |
| Thread Size | ½″ NPT (ANSI/ASME B1.20.1) |
| Cable Ø Range | 6 – 12 mm |
| Ingress Protection | IP-68 / NEMA 6P (5 bar, 30 min) |
| Body & Cap | Polyamide-6, UL-94 V-2, black RAL 9005 or grey RAL 7035 |
| Seal / O-ring | CR/NBR compression sleeve + EPDM O-ring |
| Temperature Range | −40 °C → +105 °C (−40 °F → +221 °F) |
| Pack Quantity | 50 pcs / bag |
| Main Dimensions (mm) | D1 20.5 • D2 15.7 • B1 12.1 • L1 12.8 • L2 26.1 • L3 17.8 |
60-Second Installation
- Drill or punch a ½″ NPT knockout.
- Seat the supplied EPDM O-ring (use the sealing washer on thin sheet-metal).
- Hand-tighten the lock-nut until the gland body is immobile.
- Insert cable and tighten the dome cap until snug—no wrench required.
