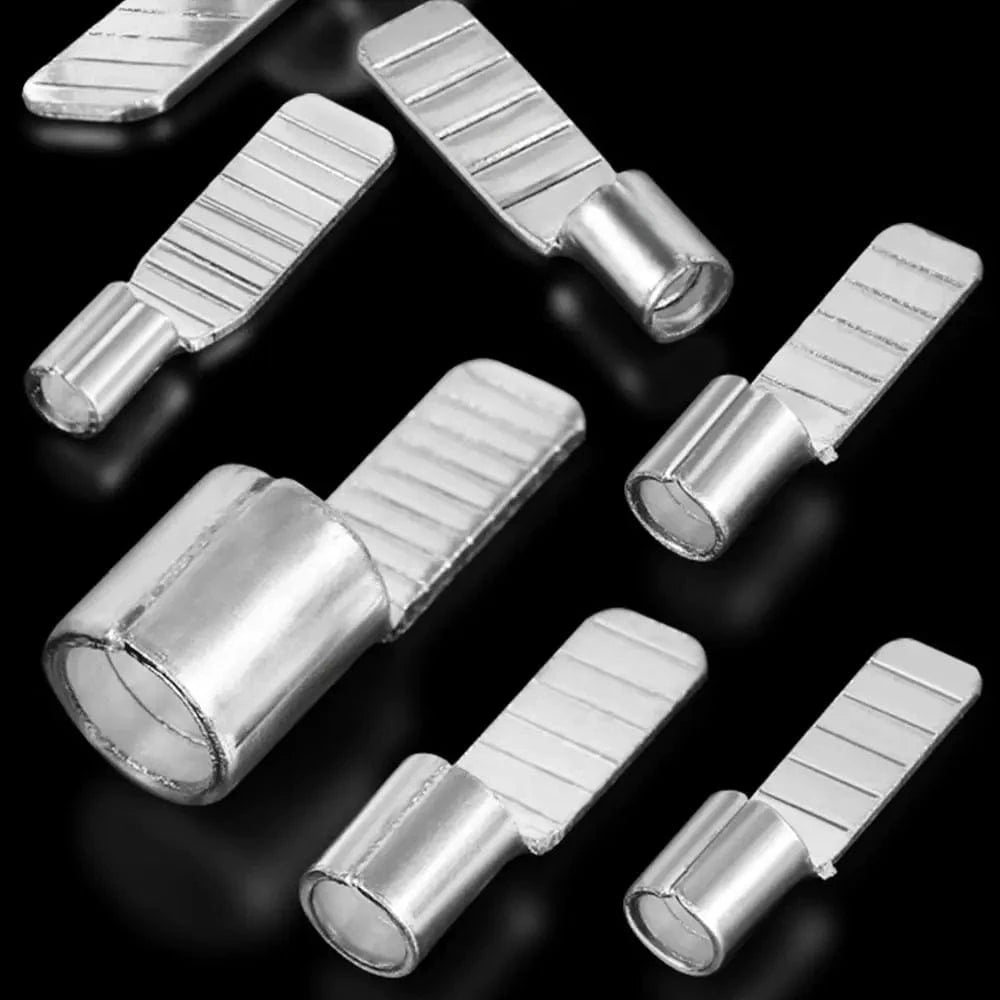

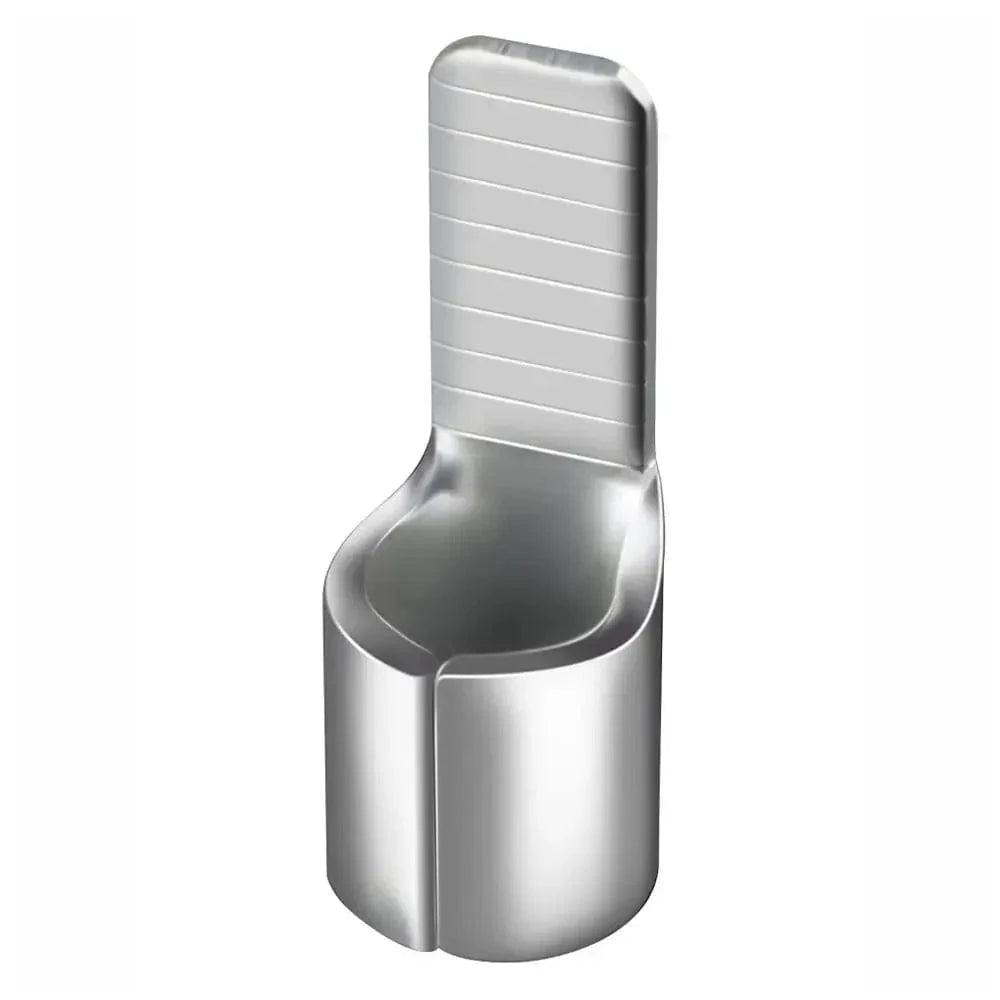

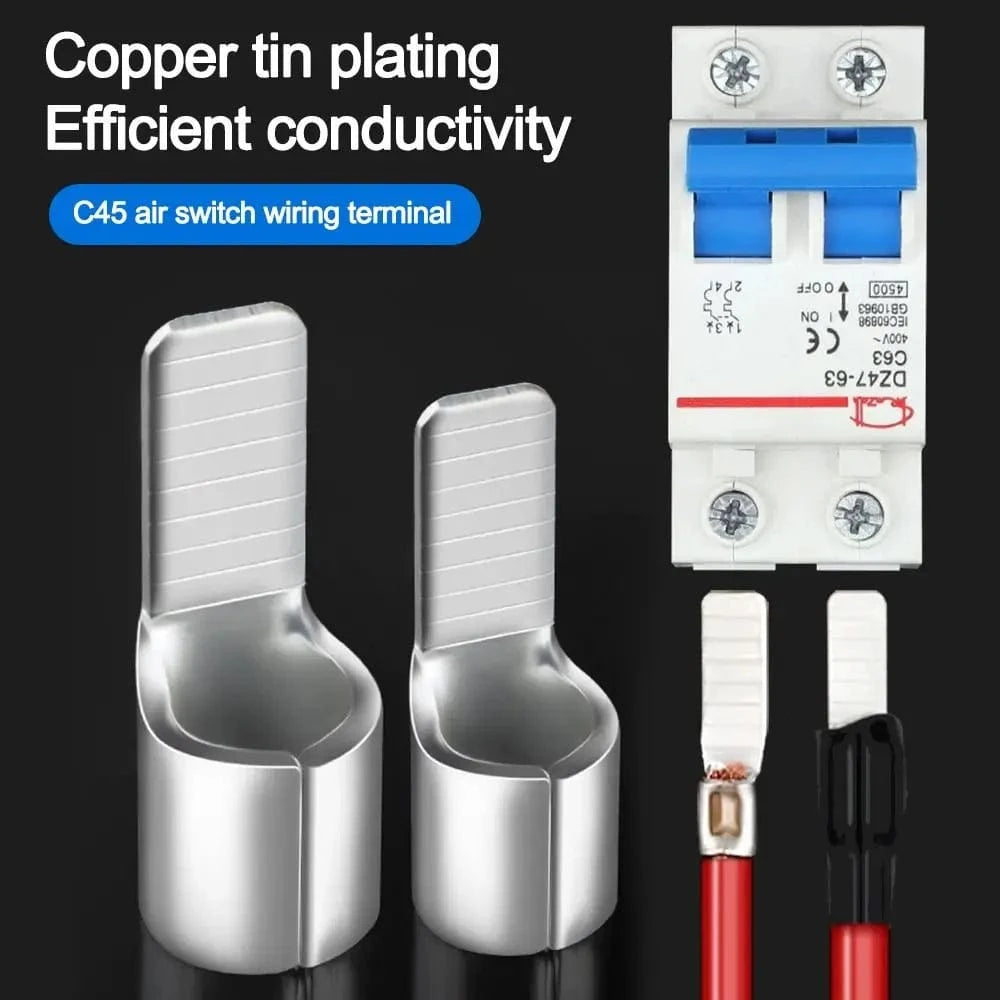

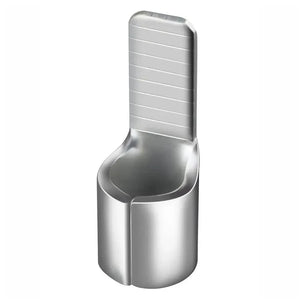

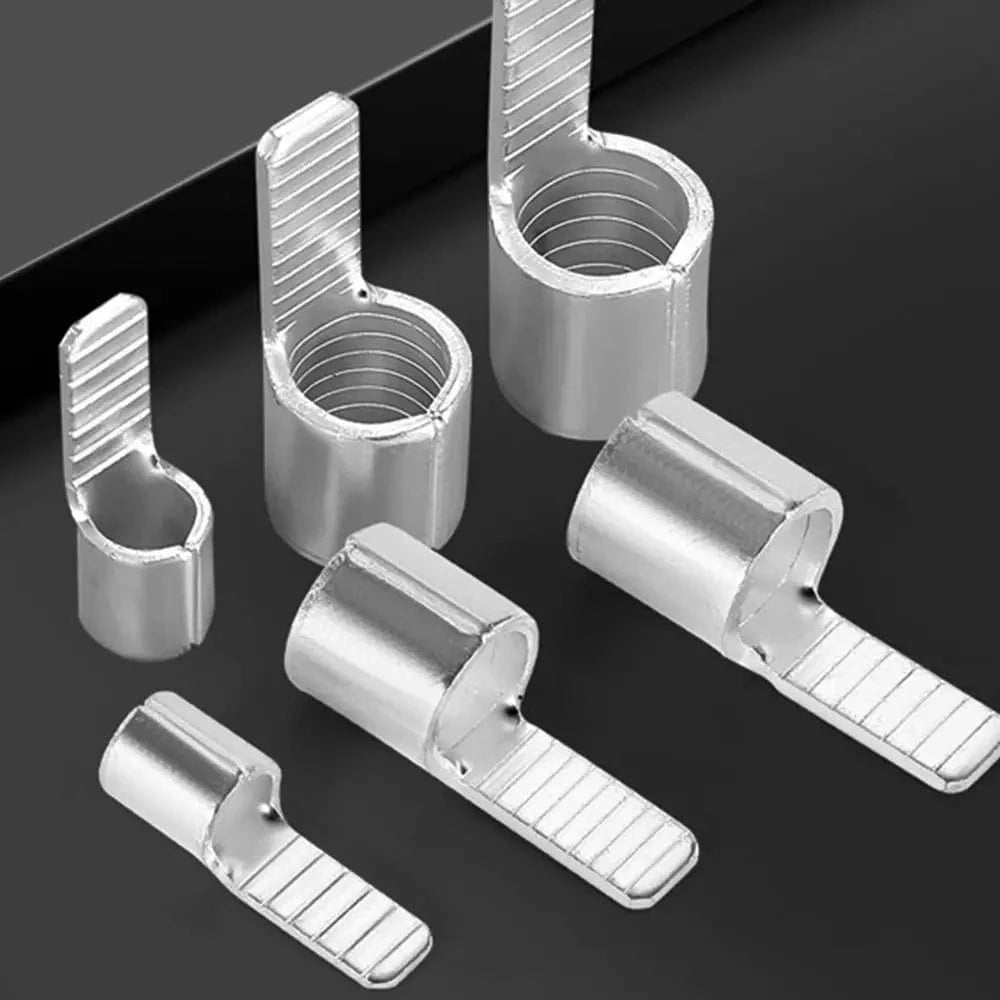

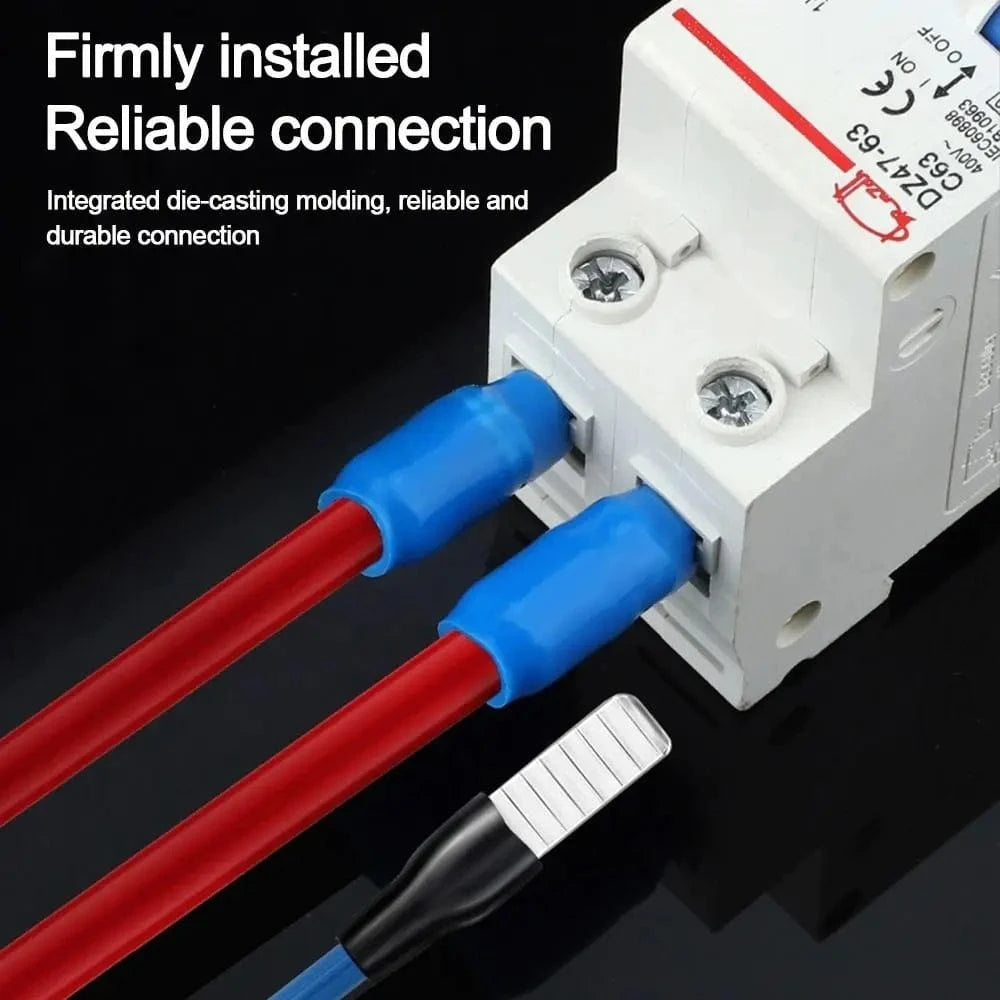

10Pcs Pin-Shaped C45 Terminals Nose Cold Pressed End Copper Tin Plated DZ47 Circuit Breaker Plug Electrical Cable Wire Lug
Shipping calculated at checkout
SKU: 14:94#C45-50
In stock
Open here
Key Characteristics
- Material: High-conductivity copper core with tin plating for oxidation and corrosion resistance.
- Connection: Crimp style barrel for use with matched dies/ratcheting tools.
- Electrical: Stable, low milliohm contact interface suited for control and power circuits (within size limits).
- Durability: Tin finish resists fretting and improves solder wetting where post-crimp soldering is allowed by spec.
- Packaging: 10 pieces per pack for service and production bundles.
-
Chemicals: No high-concern chemicals disclosed.
SKU / Size Max Conductor (mm² / AWG) Barrel I.D. (Øb, mm) Barrel Length (L1, mm) Stud / Hole (Ød, mm) Tongue Width (W, mm) Overall Length (L, mm) Notes C45-S — — — — — — Compact; control wiring C45-M — — — — — — General purpose C45-L — — — — — — Higher current feeds

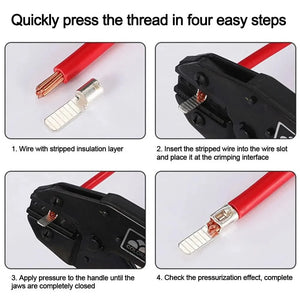

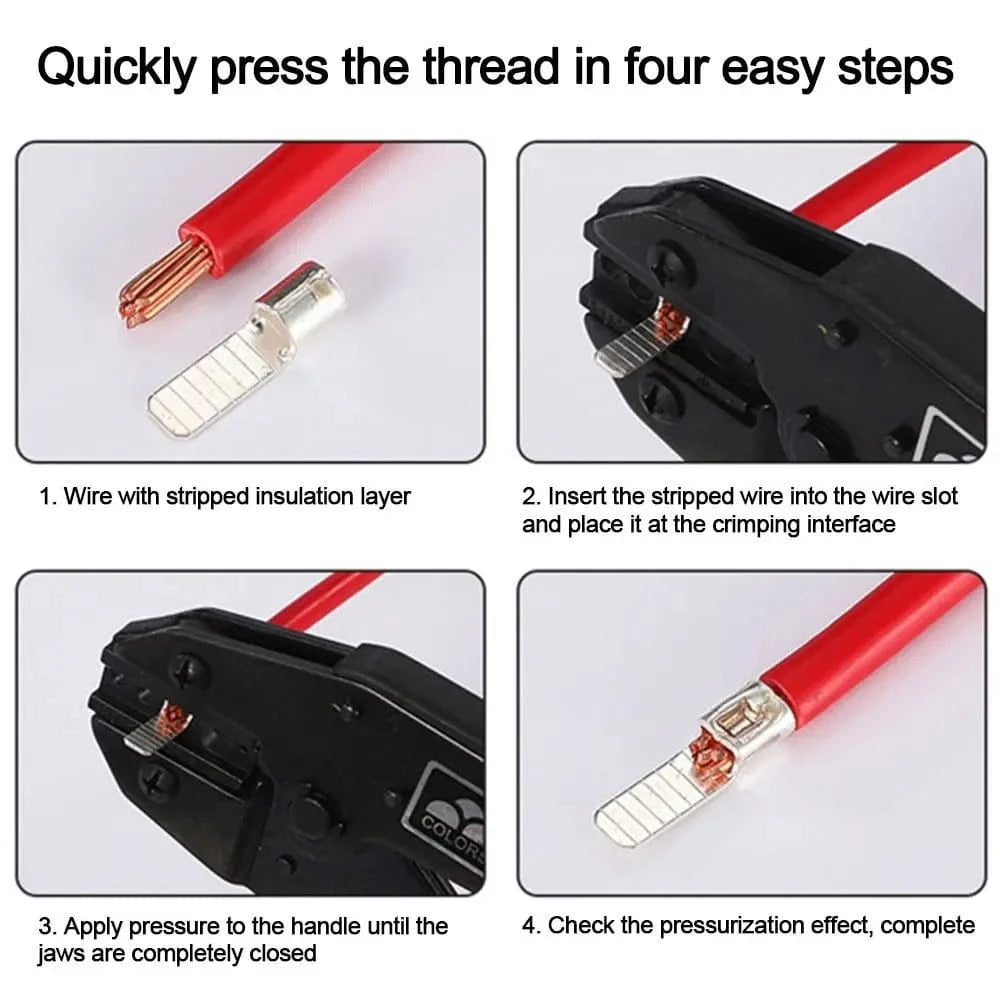

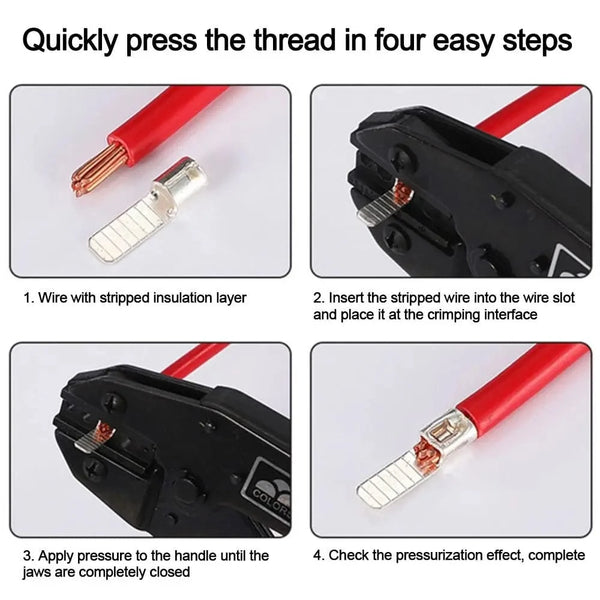

Installation & Handling
- Match the terminal size to conductor cross-section; select the correct die profile for a full-barrel compression.
- Strip to tool spec; avoid nicking strands. Insert conductor fully before crimping.
- Perform a pull test after crimp; inspect for full compression, no cracked plating, and correct orientation.
- Where required by site spec, apply heat-shrink or insulation sleeve after crimp.
Notes & Tolerances
- Manual measurement tolerance: 2–3% (dimensions in millimeters unless noted).
- Color tone may vary slightly due to lighting/screen differences.
Technical FAQ
What are C45 terminals made of?
Tin-plated copper core for high conductivity and corrosion resistance.
How many terminals are in each pack?
10 pieces per package.
What tools should I use?
Use a ratcheting crimp tool with dies matched to the terminal size and conductor cross-section.
Related Search Terms
Related terms: C45 crimp terminal, tin-plated copper lug, copper core crimp connector, anti-corrosion wire terminal, low-resistance electrical terminal, 10-pack crimp lugs.
Availability: This item ships on our standard restock cycle — typical lead time 2–3 weeks. Order now to reserve your place in the queue, or email sales@conversionstech.com for expedited options and firm dates on volume orders.
