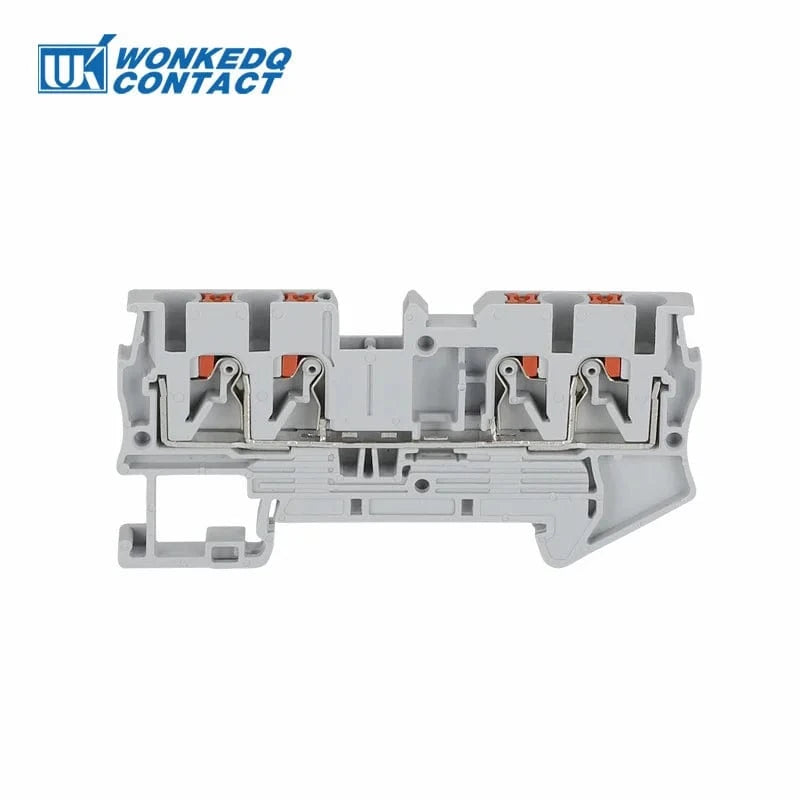

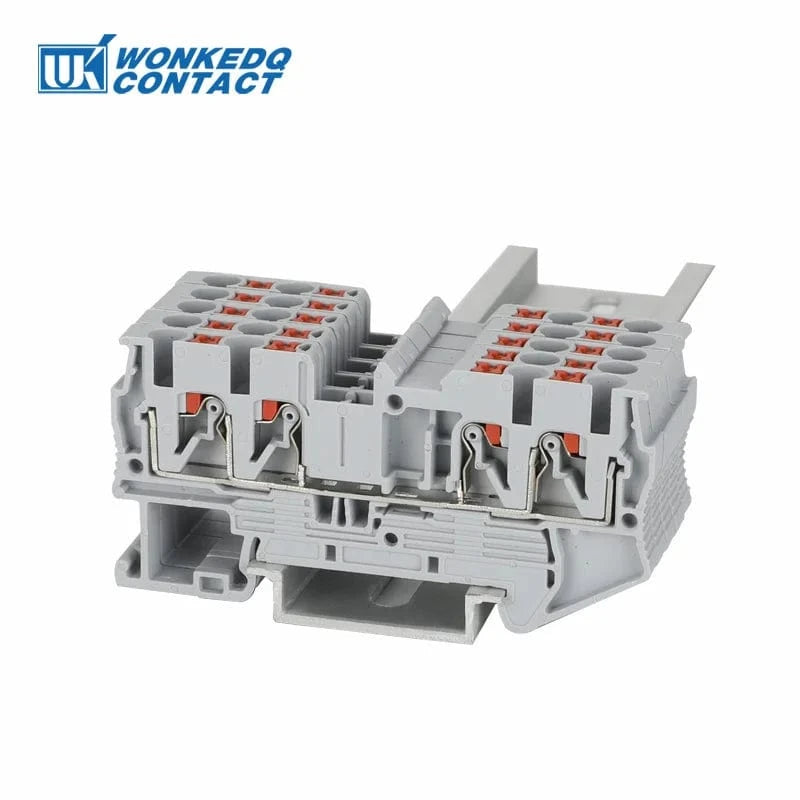

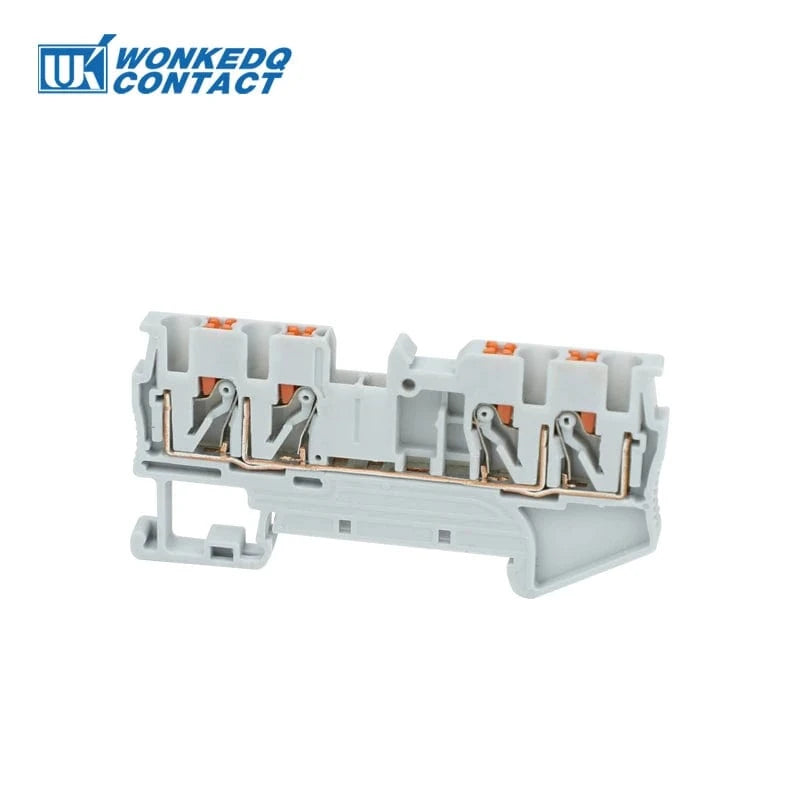

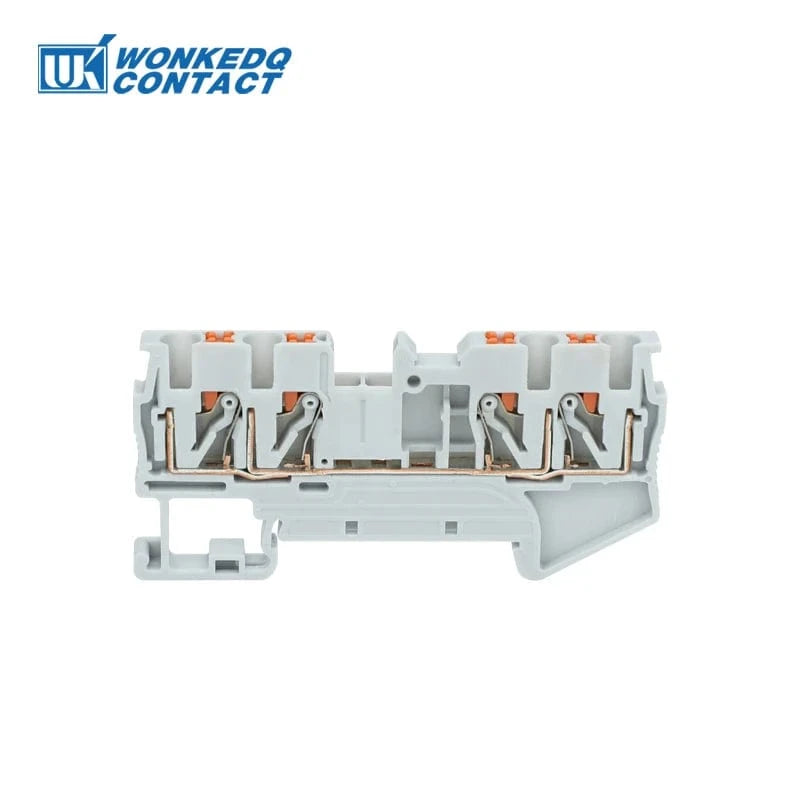

PT-2.5-QU / PT-2.5-QUATTRO Push-In DIN Rail Terminal Block — 800 V / 31 A, 24–12 AWG, PA66 Housing
Industrial push-in terminal block for NS 35/7.5 DIN rail mounting, rated 800 V / 31 A to IEC 60947-7-1. Accepts solid conductors 0.2–4 mm² and stranded (soft) 0.2–2.5 mm² (typ. 24–12 AWG). Housing is nylon PA66. Available in grey and blue with customizable colors and logo. No high-concern chemicals; CE / RoHS compliant (CQC / ISO 9001 listed).
Electrical & Mechanical Characteristics
- Connection method: Push-in spring contact for rapid insertion of solid/soft conductors within specified range.
- Rated voltage / current: 800 V / 31 A (per IEC 60947-7-1).
- Conductor sizes: Solid 0.2–4 mm²; Stranded (soft) 0.2–2.5 mm² (24–12 AWG).

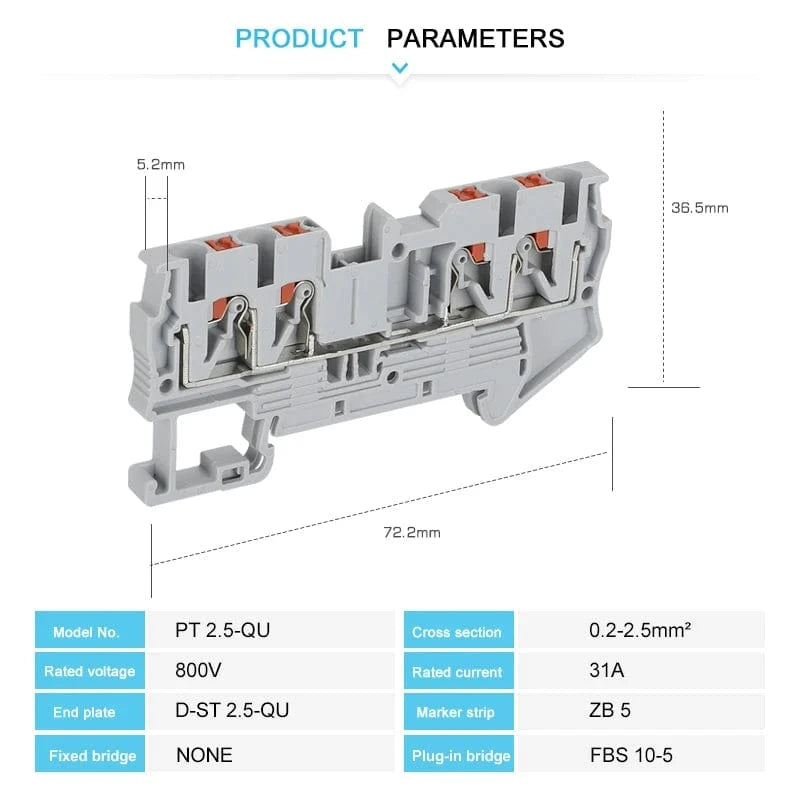

- Form factor: L 72.2 mm × H 36.5 mm × W 5.2 mm nominal.

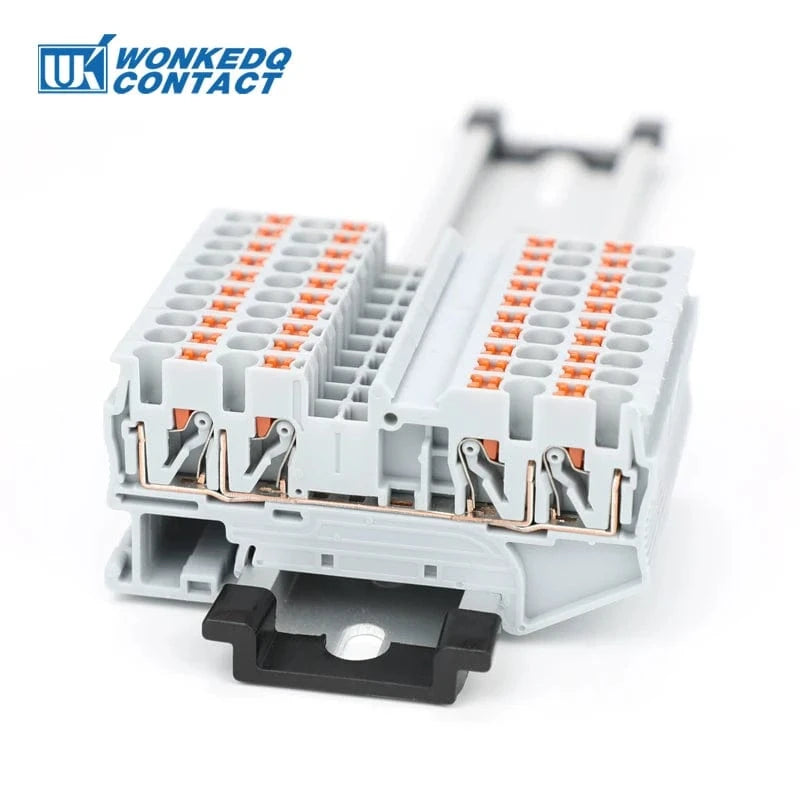

- Mounting: NS 35/7.5 (35 mm × 7.5 mm) DIN rail.
- Contacts / positions: 1–10 (select model/assembly; QUATTRO variant supports multi-conductor entry).
- Housing material: Nylon PA66.
- Standards & certification: IEC 60947-7-1; CE / RoHS (CQC / ISO 9001).
- Chemicals: High-concern chemicals: None.
- Origin: Mainland China.
Technical Specifications
- Model
- PT-2.5-QU / PT-2.5-QUATTRO
- Type
- Push-in Terminal Block (DIN rail)
- Rated Voltage / Current
- 800 V / 31 A
- Conductor Range (solid / soft)
- 0.2–4 mm² / 0.2–2.5 mm²
- Conductor Size (AWG)
- 24–12 AWG
- Dimensions (L × H × W)
- 72.2 × 36.5 × 5.2 mm
- Mounting Type
- NS 35/7.5 DIN rail
- Housing Material
- Nylon PA66
- Standard
- IEC 60947-7-1

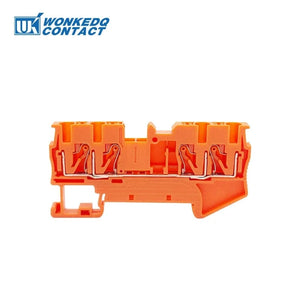

- Color Options

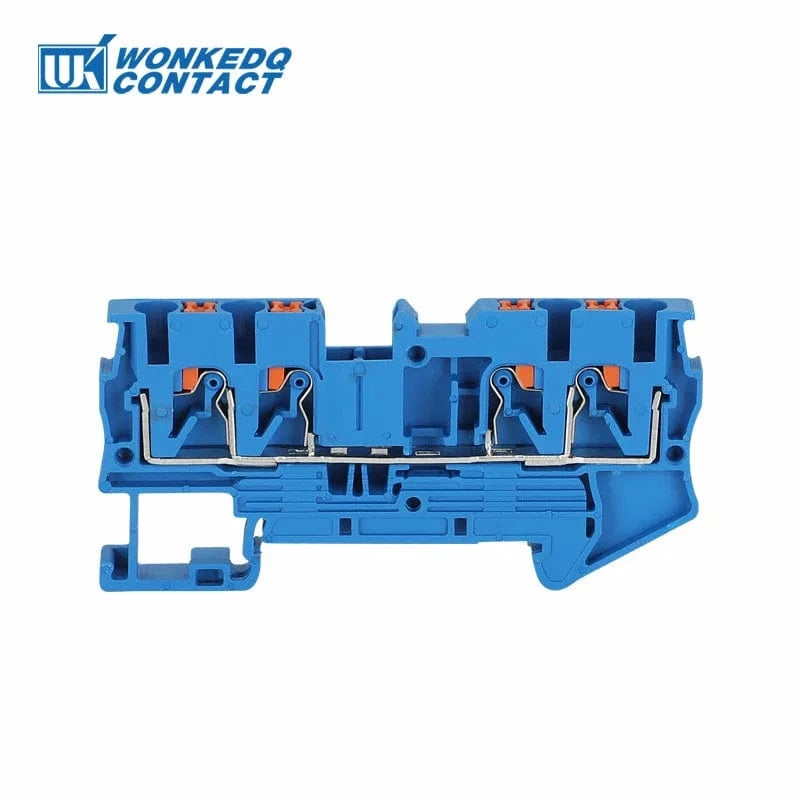

- Grey, Blue (custom colors available)
- Logo
- Custom logo supported
- Weight & Packing
- ≈ 9.52 g per pc; 100 pcs/box
- Certifications
- CE / RoHS / CQC / ISO 9001
Selection & Positions
Choose the number of contacts/positions (1–10) based on terminal count and cross-connection needs. The QUATTRO variant supports multi-conductor entry per terminal footprint to increase density.
| Variant | Positions / Contacts | Width (mm) | Notes |
|---|---|---|---|
| PT-2.5-QU | 1+ | 5.2 | Single-conductor per side; bridgeable via FBS series |
| PT-2.5-QUATTRO | Up to 4 entries per block | 5.2 (footprint) | High-density multi-conductor entry |
Accessories & Cross-Connection

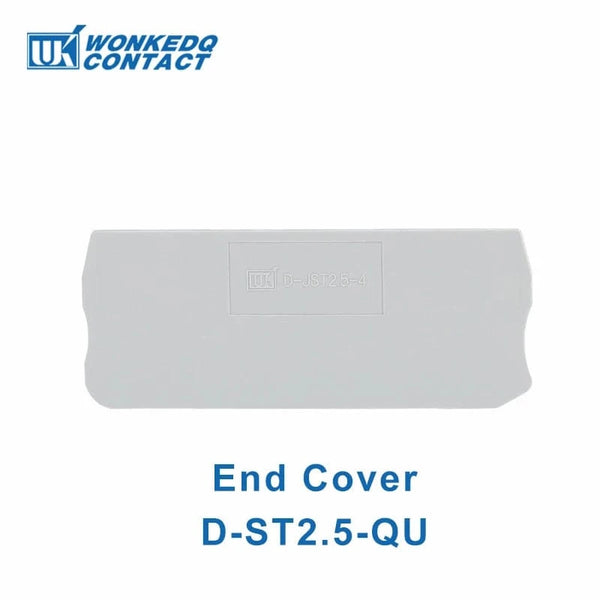

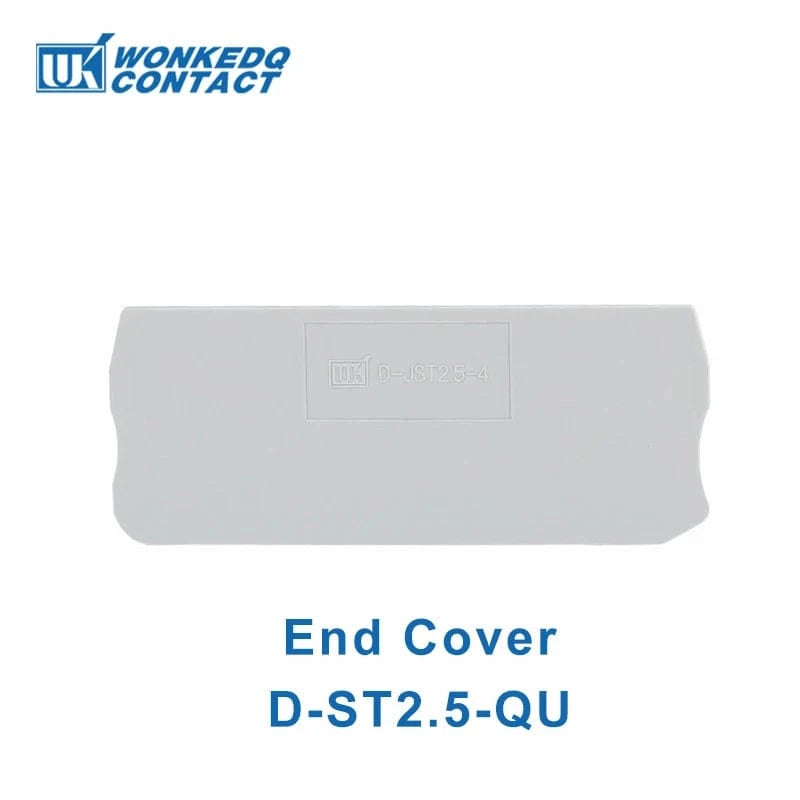

- End cover: D-ST2.5-QU

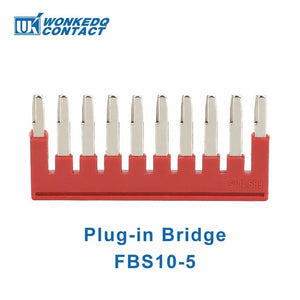

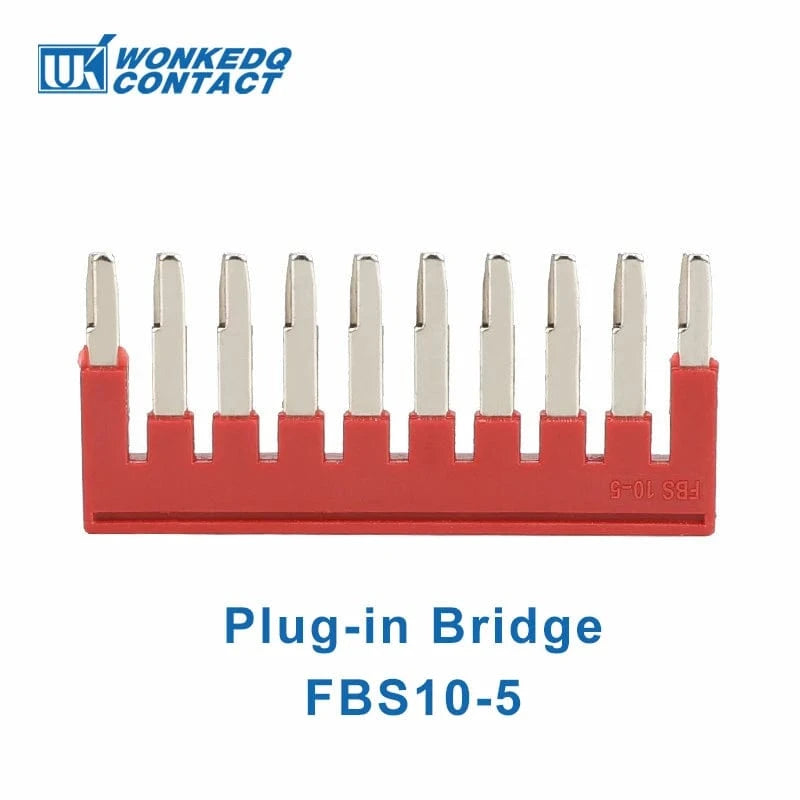

- Plug-in bridge (FBS series): FBS 2-5, FBS 3-5, FBS 4-5, FBS 5-5, FBS 10-5

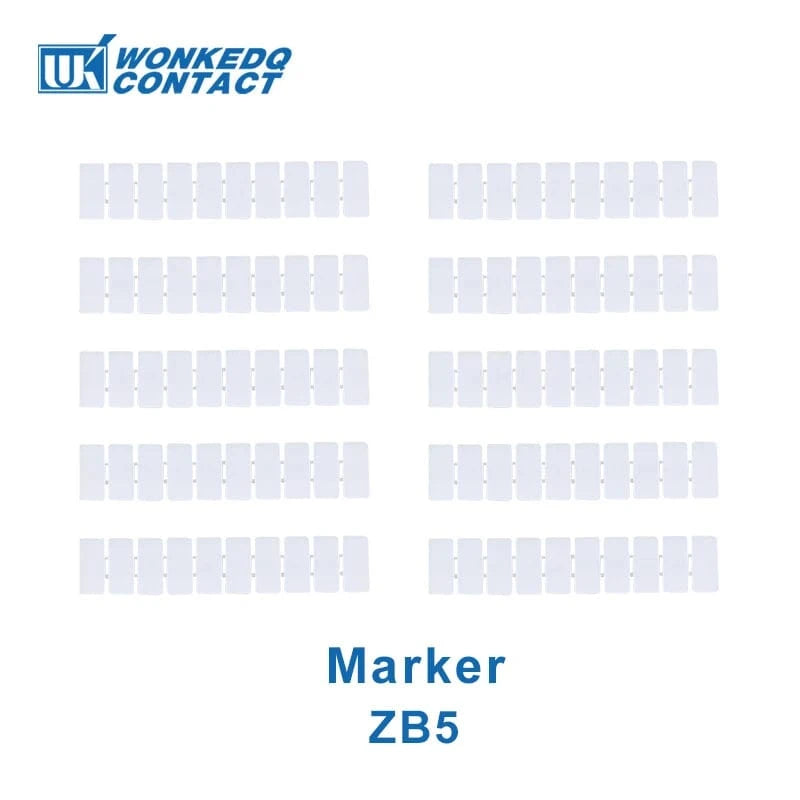

- Marker strip: ZB5
- Marker carrier: B1
- Marker clips: KLM-A
- End stop: E-UK
- DIN rail: NS35-S (NS 35/7.5)
- Ground terminal block: PT2.5-QU-PE
Compliance & Notes
- Designed and tested to IEC 60947-7-1 terminal block requirements.
- Materials and finishes are CE / RoHS compliant; no high-concern chemicals disclosed.
- Color and branding customization available on request (MOQ may apply).
Technical FAQ
What conductor sizes are supported?
Solid: 0.2–4 mm²; Stranded/soft: 0.2–2.5 mm² (approx. 24–12 AWG).
What is the terminal’s width and footprint?
Nominal width is 5.2 mm; overall size is 72.2 × 36.5 × 5.2 mm.
Which DIN rail does it mount to?
NS 35/7.5 (35 mm × 7.5 mm) steel DIN rail.
Is cross-connection supported?
Yes. Use FBS plug-in bridges (2-5 / 3-5 / 4-5 / 5-5 / 10-5) to common adjacent terminals.
