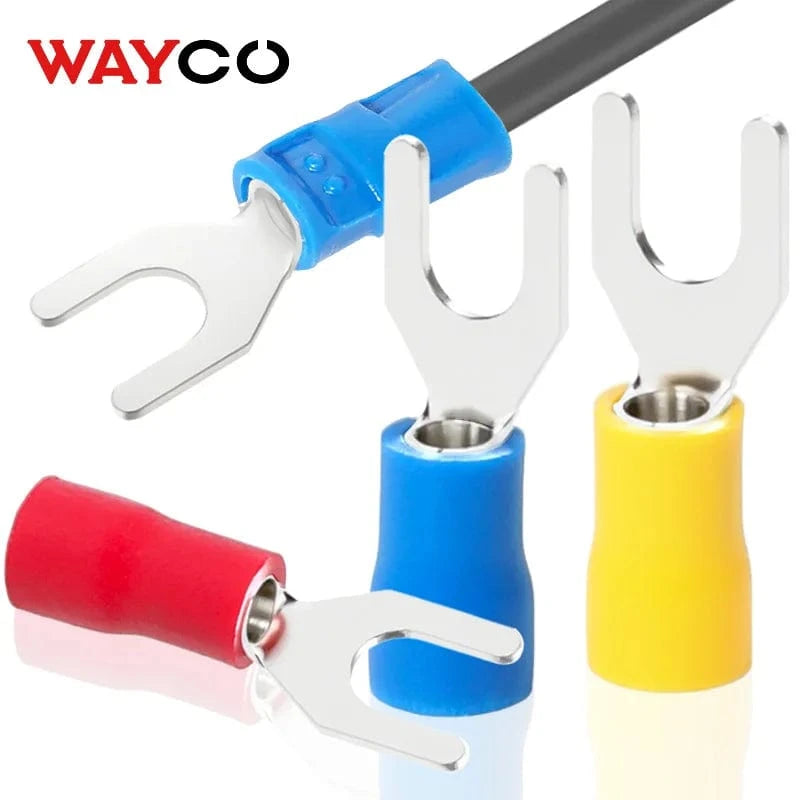

Conversions Tech Insulated Fork (Spade/Y) Crimp Terminals — PVC Insulator, Brass Barrel

Conversions Tech insulated fork (spade/Y) terminals provide reliable, low-resistance terminations for control panels, machinery, and field wiring. A precision-drawn brass barrel ensures consistent crimp compression and electrical conductivity, while the PVC insulation sleeve delivers strain relief, dielectric isolation, and visual wire-range identification.

Engineering Highlights

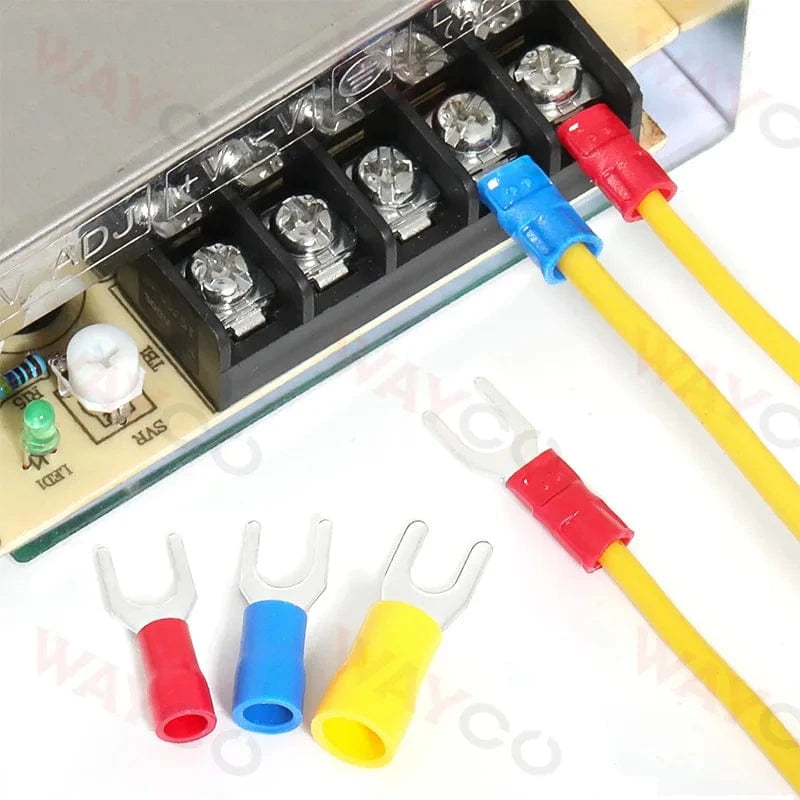

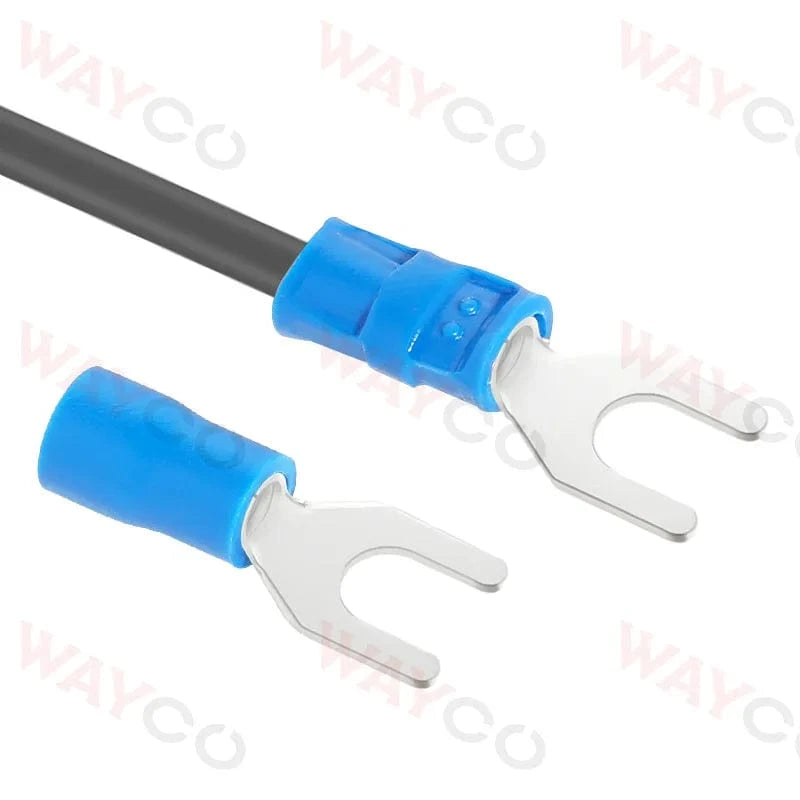

• Fork Geometry: Open-tongue design enables fast installation or service without fully removing terminal screws; ideal for terminal blocks and barrier strips.
• Conductor Interface: Seamless brass barrel supports uniform crimp deformation and high pull-out strength when used with the correct die profile.
• Insulation Sleeve: PVC funnel entry guides strands into the barrel and provides post-crimp strain relief and dielectric coverage.

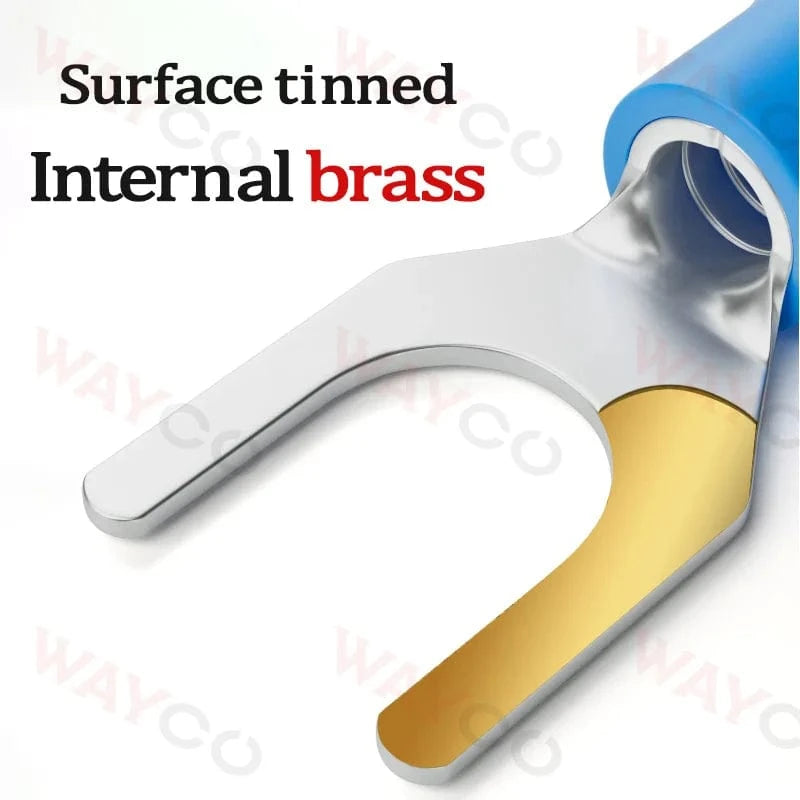

• Material System: Copper-alloy (brass) for current-carrying path; PVC insulator. No high-concern chemicals per supplier declaration.
• Application Domains: Industrial controls, transportation, marine/RV, telecom/low-voltage, appliances, and general electrical assemblies.

Wire Range / Color Code

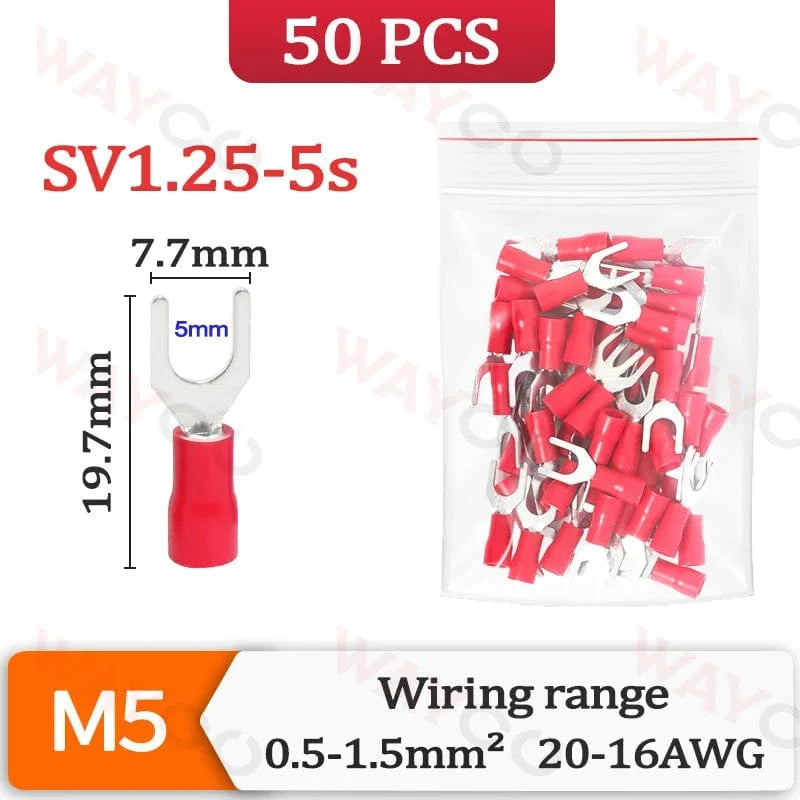

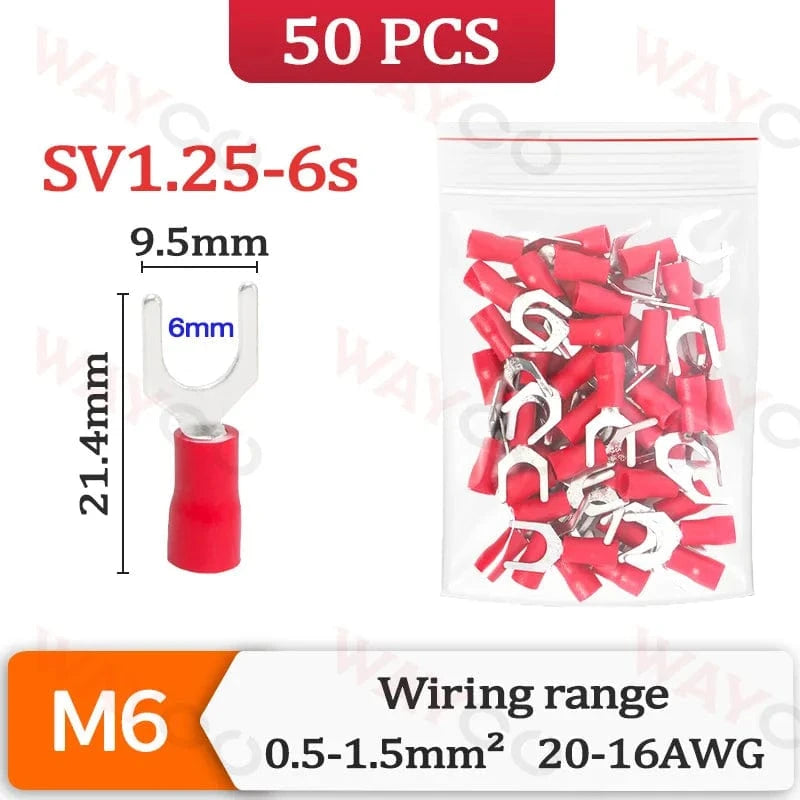

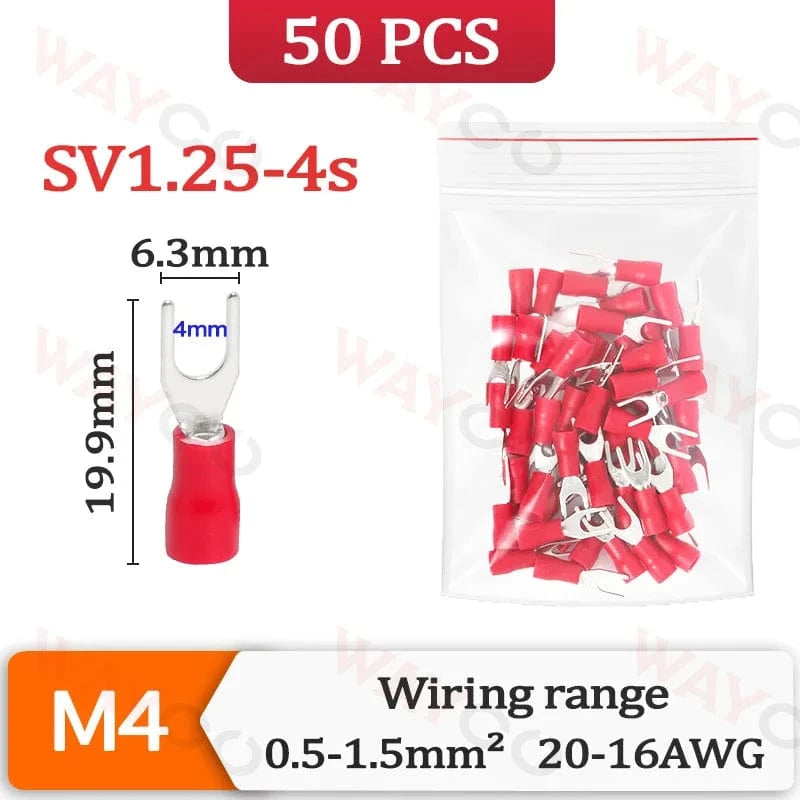

• Red: 20–16 AWG (0.5–1.5 mm²)

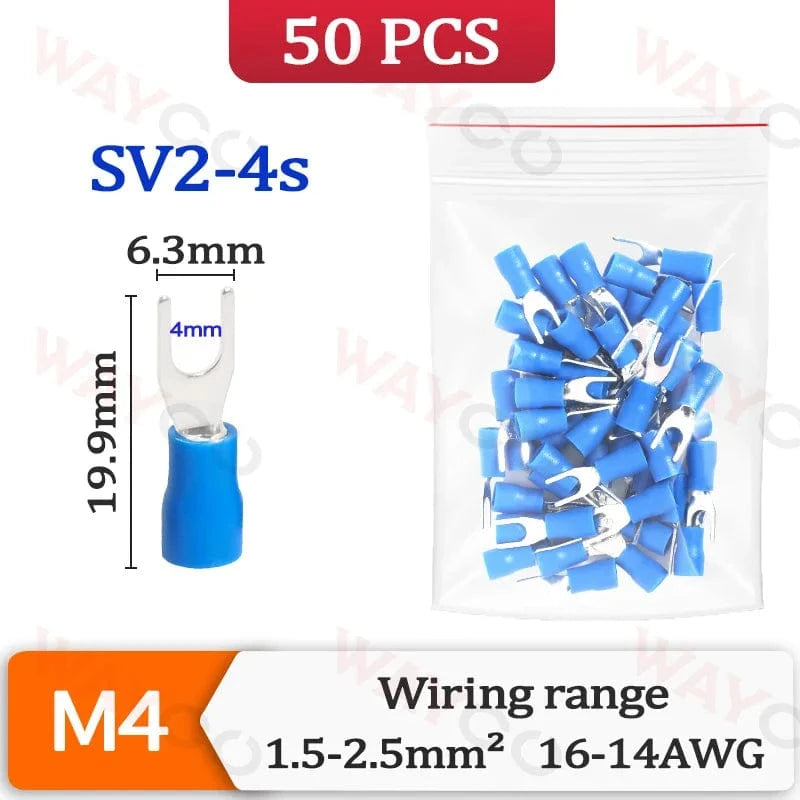

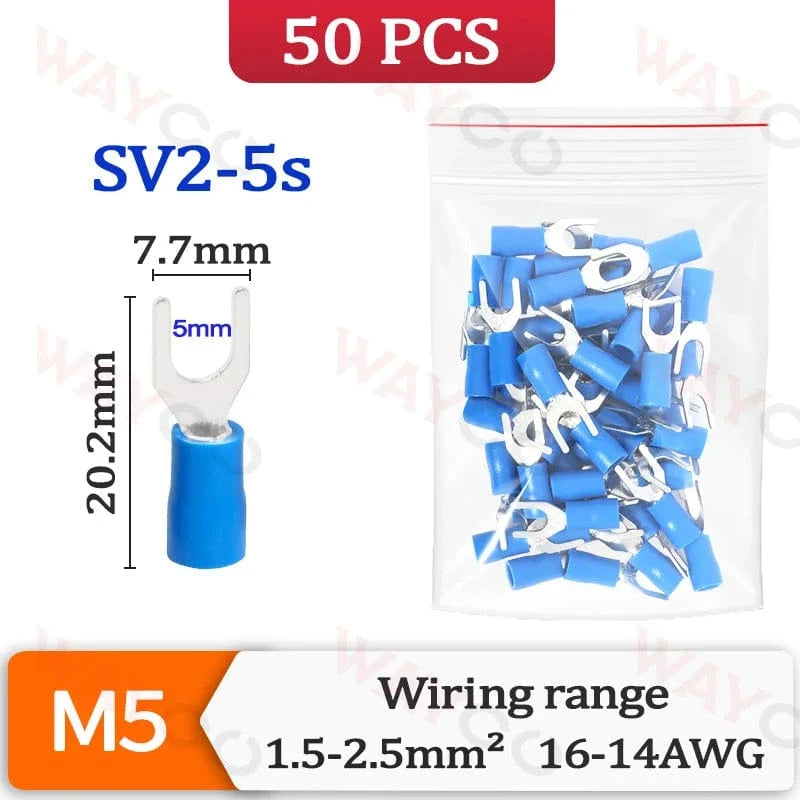

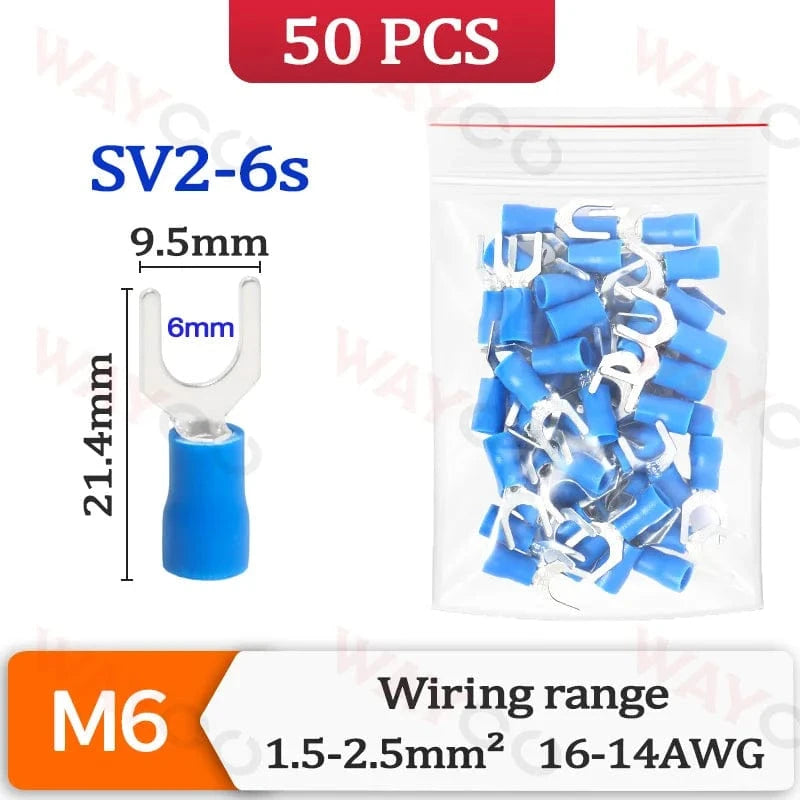

• Blue: 16–14 AWG (1.5–2.5 mm²)

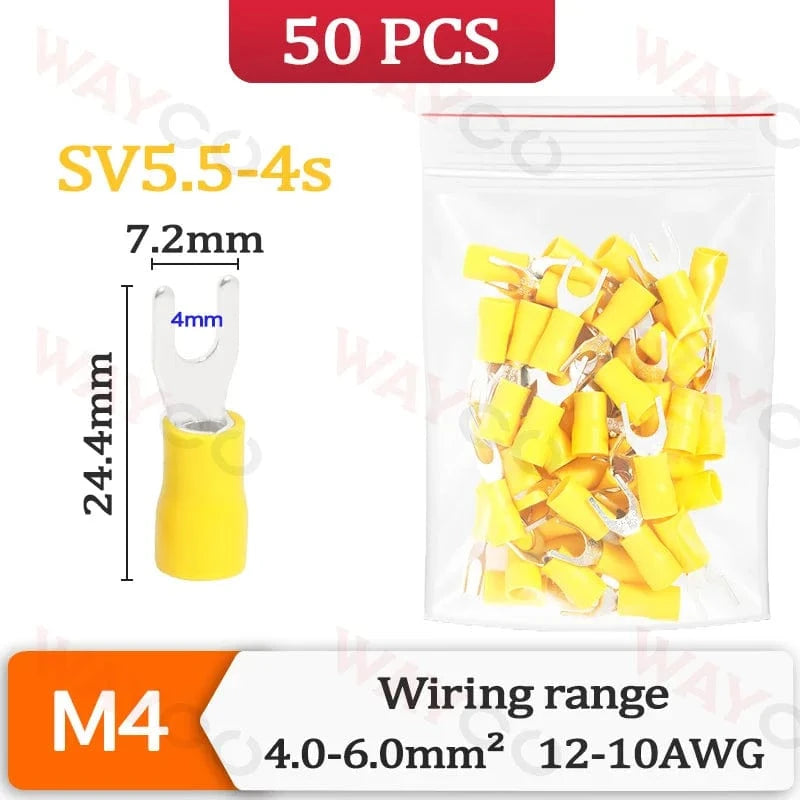

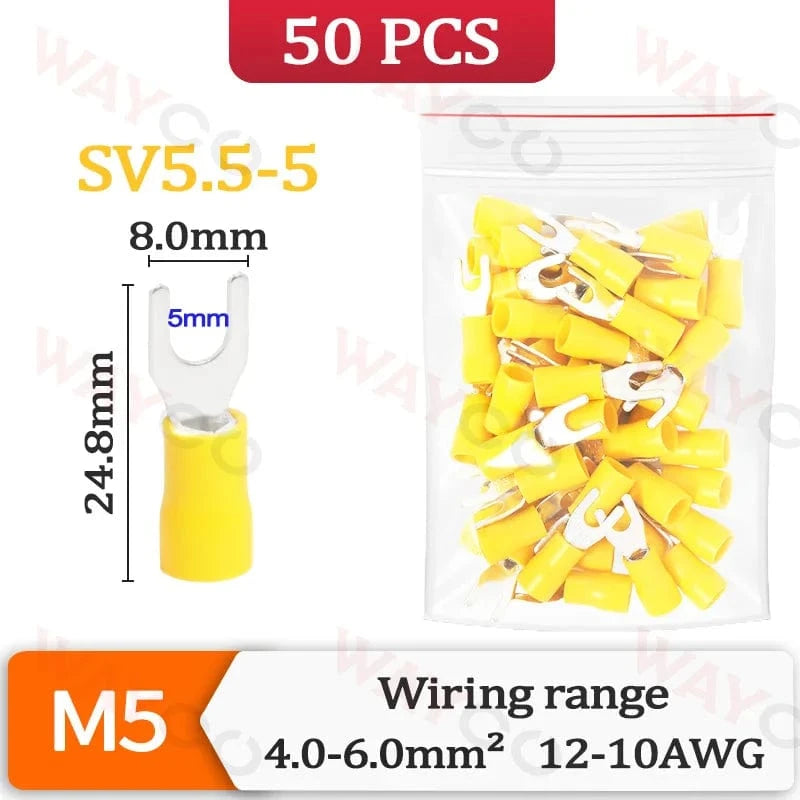

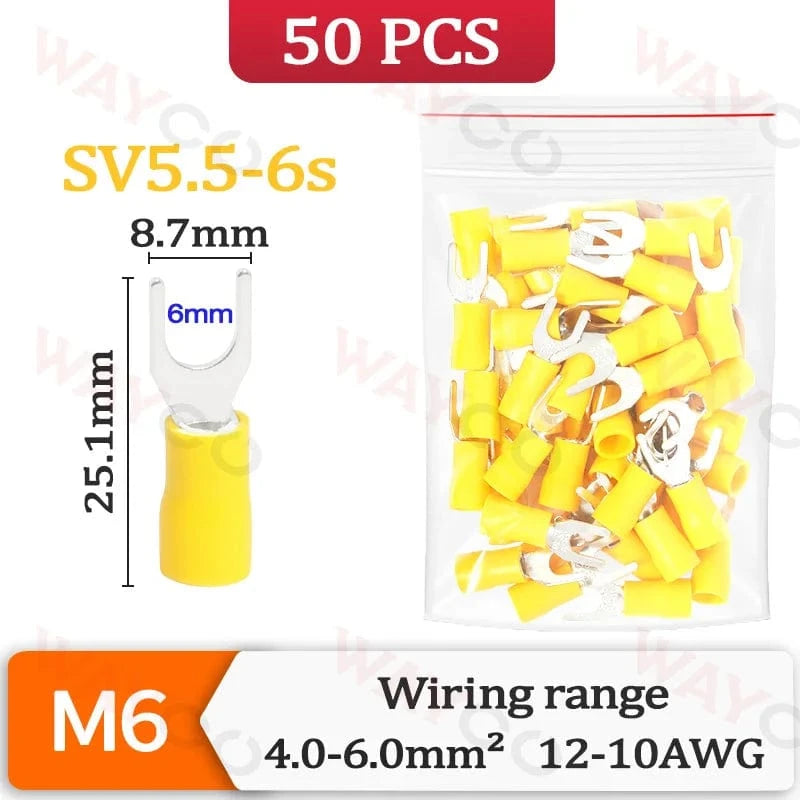

• Yellow: 12–10 AWG (4.0–6.0 mm²)

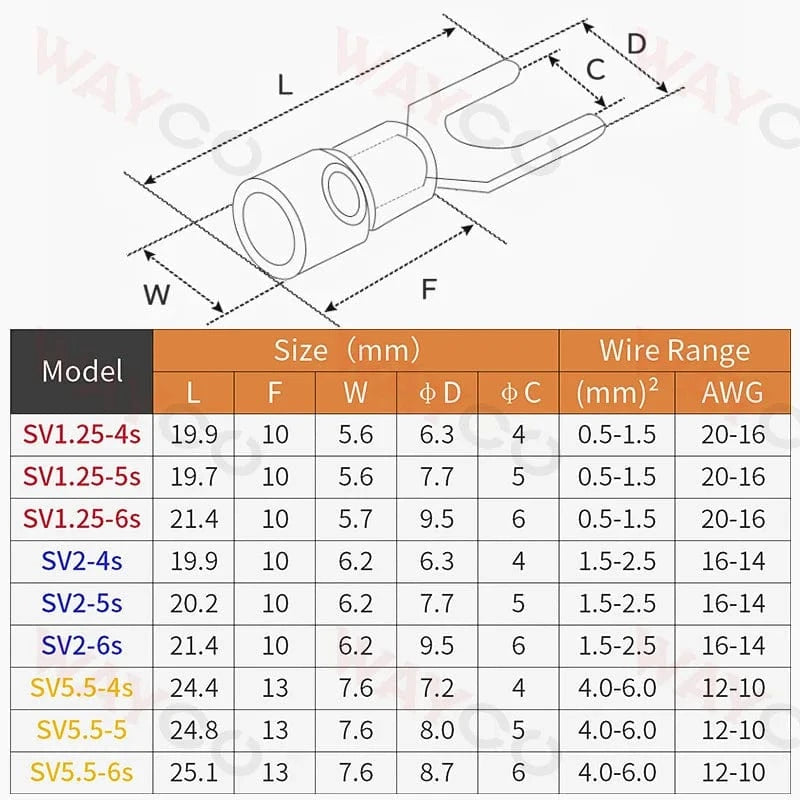

Specifications

• Terminal Type: Fork / Spade (U-shaped, Y-style) crimp terminal
• Conductor Material: Brass (copper alloy)
• Insulator: PVC (polyvinyl chloride), color-coded by wire range
• Features: Fully insulated grip, strain relief, quick installation, serviceable fork profile
• Chemical Disclosure: No high-concern substances per supplier (SVHC-free declaration)
• Typical Uses: Electrical lugs/terminals for wires and cables in panels, junction boxes, harnesses

Selection & Sizing Guidance

Choose terminal color by conductor size (AWG/mm²). Select fork opening to match the stud/screw diameter on your terminal block or barrier strip. The crimp profile must match the terminal style (insulated, open-barrel, etc.) and the conductor class (stranded vs. solid).

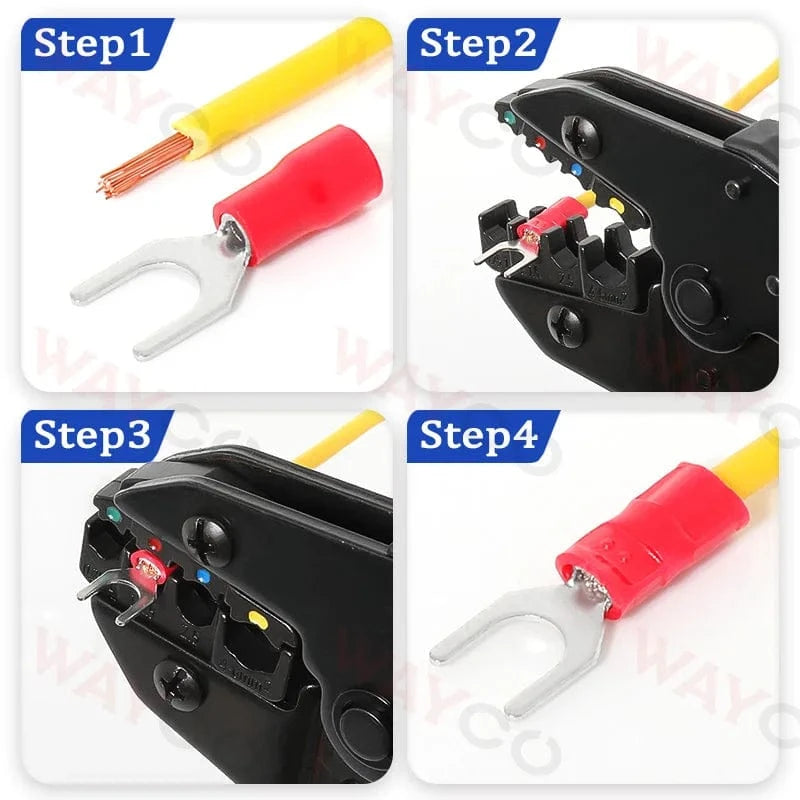

Installation Notes

1. Strip conductor per terminal size (avoid nicking strands). Do not exceed recommended strip length.
2. Insert conductor fully until it seats against the barrel stop. The PVC funnel should guide the strands cleanly.
3. Crimp using a ratcheting tool with the correct insulated-terminal die cavity (color-matched). Verify full latch cycle.
4. Perform a gentle pull test to confirm mechanical retention; inspect for full circumferential compression and no exposed strands beyond the fork.
5. Mount under the correct screw/stud size; tighten per device manufacturer torque recommendations.

Quality & Compliance

• Electrical: Low contact resistance path via brass barrel when correctly crimped.
• Mechanical: Crimped joint designed for vibration resistance in industrial and automotive environments.
• Material Health: Supplier indicates no high-concern chemicals present.

What’s Included

Assorted insulated fork (spade/Y) crimp terminals in red, blue, and yellow color codes covering 20–10 AWG (0.5–6.0 mm²).

Notes

• Minor dimensional variance (±1–2 mm) may occur from measurement method or lot differences.
• For best results, use calibrated ratcheting crimp tools matched to insulated terminal profiles.

Conversions Tech — Engineered connectivity for reliable power, signal, and control.
