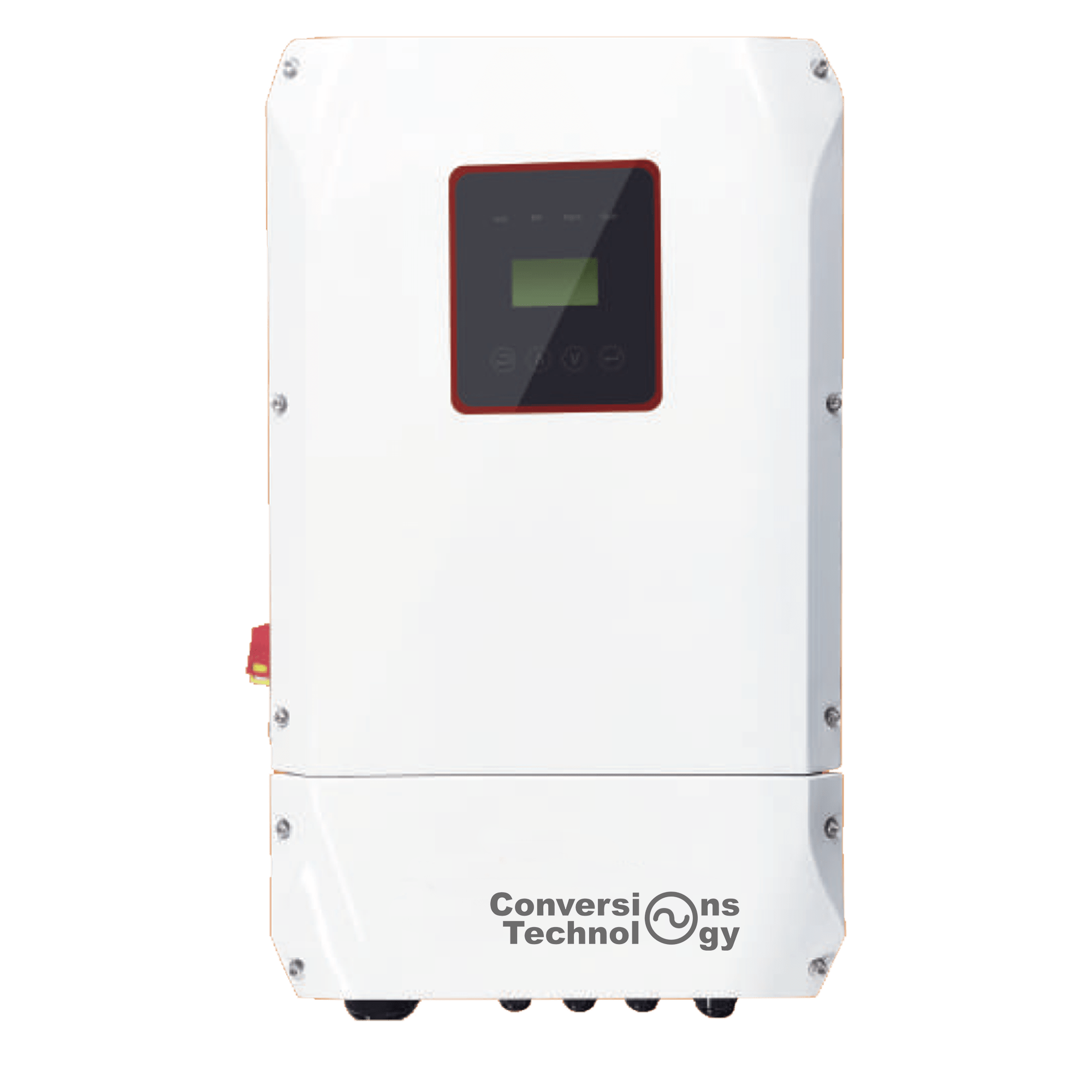

Conversions Technology 8kK Hybrid Inverter System

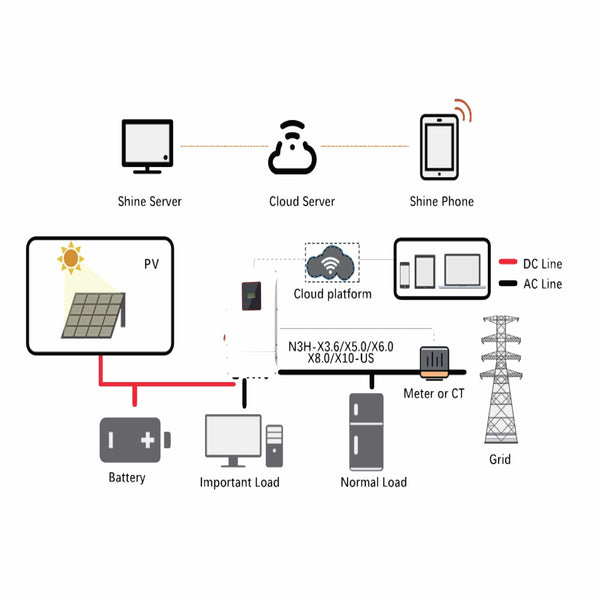

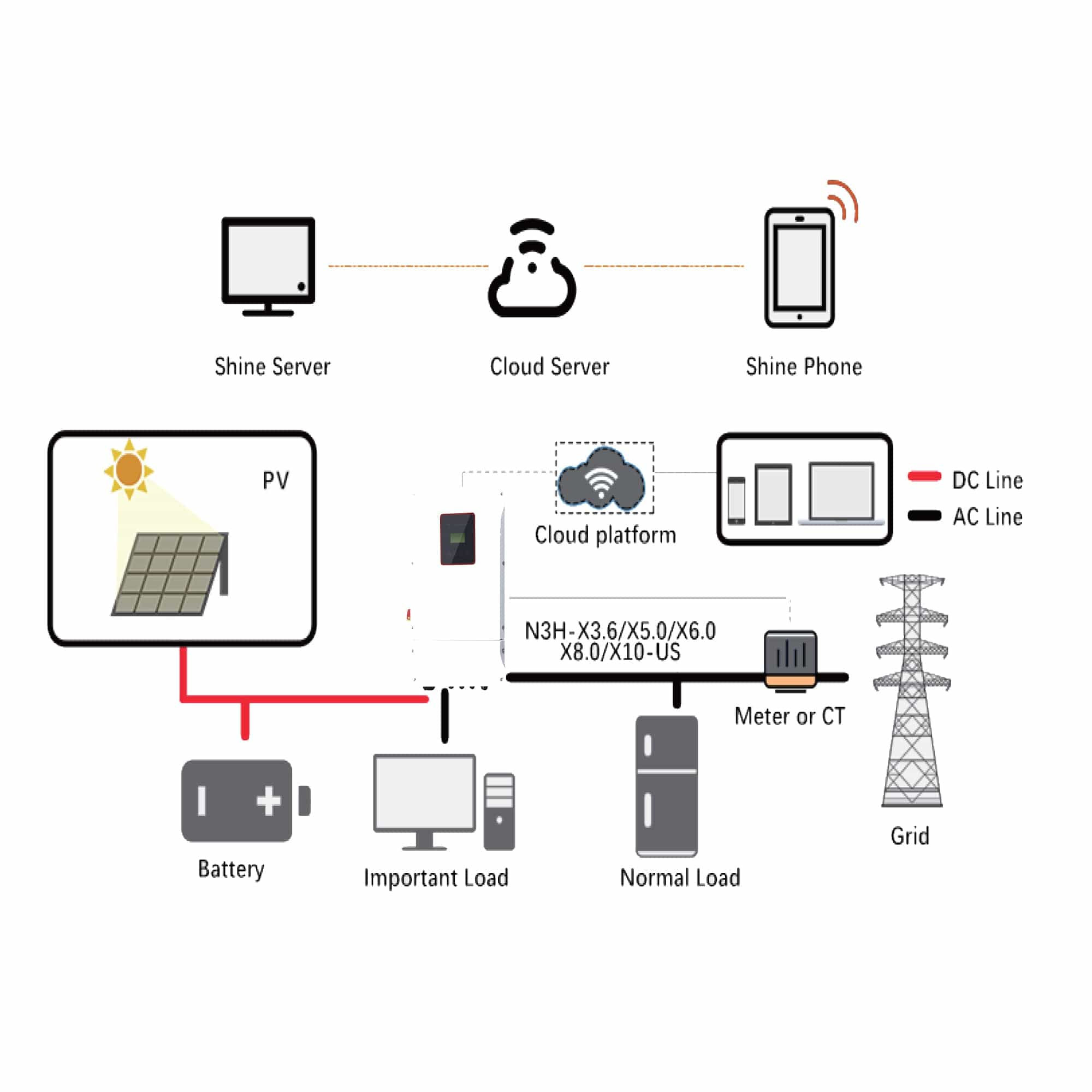

The Conversions Technology 8kK Hybrid Inverter System is an integrated solution encompassing an inverter, charger controller, and a display equipped with remote monitoring. This system is designed for easy installation in Grid-tied, Off-Grid, or Battery Backup solar setups and adeptly manages power across various sources like Solar, Battery, Grid, Loads, and Generator.
Key Features:
- Grid Tied Mode: Monetize your power to curtail your electricity bill.
- Meter Zero Mode: Neutralize your electricity charges without the need for a smart meter.
- Time of Use: Strategically utilize solar and batteries to minimize dependency on grid power.
- Programmable Smart Load Mode: Adapt to your energy consumption patterns.
- DC and AC Coupling: Versatility in energy transmission modes.
- Battery Compatibility: Compatible with a broad spectrum of battery chemistries ranging from Lead acid to Lithium.
Technical Specifications:
- AC Voltage: 120/240V (split phase)
- AC Frequency: 60/50 Hz
- Max Continuous AC Output Power: 8kW
- MPPT Voltage Range: 125-425V
- Max Input Current: 26Amp (per MPPT)
- Inverter Efficiency: 96.0%
- Listings & Certifications: UL1741-2010/2018, IEEE1547a-2003/2014
- Weight: 98 lbs
