Short Barrel vs Long Barrel Compression Lugs: When Each Is Required

Short Barrel vs Long Barrel: The Fundamental Trade-Off

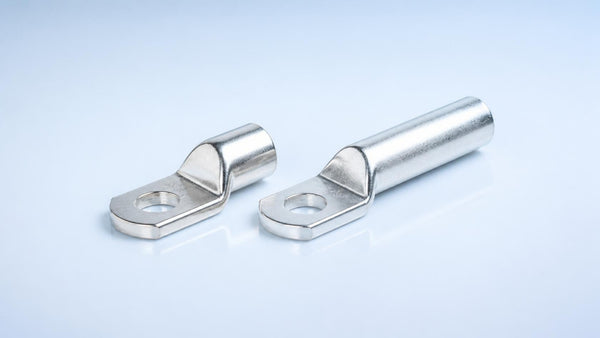

Compression lugs come in two barrel configurations, and the choice between them determines crimp count, strip length, and whether the connection survives in high-vibration environments. Short barrel lugs accept a single crimp and fit where space is tight. Long barrel lugs require two crimps and provide substantially higher pullout resistance. Understanding when each is required keeps installations compliant and eliminates callbacks.

Short Barrel: Single Crimp for Confined Spaces

Short barrel lugs are built for panelboards, switchgear gutters, and other locations where conductor bend radius and overall lug length are constrained. The barrel length typically accommodates one indenter crimp positioned near the center.

Key characteristics:

• Single crimp location specified by manufacturer
• Shorter overall length reduces interference with adjacent terminals
• Reduced wire strip length—typically 1/2 to 5/8 inch depending on conductor size
• Standard duty rating per UL 486A-486B for general building wiring

Short barrel one-hole lugs dominate residential and light commercial panels. The single crimp, properly executed with the correct die, meets NEC 110.3(B) requirements for listed equipment. Inspectors rarely flag these in standard applications unless the crimp is visibly incomplete or the wrong die set was used.

Long Barrel: Dual Crimp for Mechanical Integrity

Long barrel lugs extend the barrel to accommodate two separate crimp locations. This geometry distributes mechanical load across a longer conductor interface and resists the creep and loosening that vibration induces.

Applications requiring long barrel:

• Utility substations and generation facilities
• Transformers and switchgear subject to seismic or operational vibration
• Overhead line transitions where conductor movement occurs
• Large conductor sizes (typically 250 kcmil and above) where single-crimp reliability drops
• Specifications referencing IEEE 837 or requiring "long barrel" explicitly

Long barrel designs appear frequently in two-hole lugs for substation bus and transformer terminations, though one-hole long barrel variants exist for specific equipment requirements.

Dimensional Implications: Strip Length and Clearance

The strip length difference matters in crowded gutters. NEC 312.6 specifies minimum wire bending space at terminals, but long barrel lugs consume more of that allowance. Estimators should verify gutter depth against lug selection early—discovering interference during trim-out is expensive.

Crimp Sequence and Die Selection

Short barrel crimping is straightforward: center the conductor, position the die at the manufacturer-specified location, and complete one full compression cycle. Most manufacturers mark the crimp point with a dimple or band.

Long barrel crimping requires attention to sequence:

1. Strip to full barrel depth plus 1/8 inch visible past the barrel end
2. First crimp: nearest the palm (barrel base) unless manufacturer specifies otherwise
3. Second crimp: toward the wire entry, maintaining specified spacing between crimp centers
4. Verify no flash or extrusion compromises the barrel integrity

Die selection must match the lug series. Using a short-barrel die on a long-barrel lug leaves the second crimp location unformed; using an oversized die distorts the barrel. Manufacturer charts govern this—UL listing depends on proper tool pairing per UL 486A-486B.

When Inspectors Care

Field inspections focus on visible compliance. Inspectors will verify:

• Crimp count matches lug type (single vs. dual)
• Die embossment is present and legible
• No insulation under the barrel—conductor fully inserted
• Antioxidant compound present on aluminum-to-aluminum or aluminum-to-copper connections

Long barrel lugs in substation or utility work may trigger additional scrutiny if specifications reference IEEE 837 or utility standards. Some jurisdictions require torque verification on the mounting hardware in addition to crimp inspection.

Short barrel lugs in standard panelboard terminations rarely draw specific attention unless the installation appears sloppy or the wrong lug series was applied to fine-stranded conductor without ferrules.

Specification Language

Engineers call out barrel requirements in several ways:

• "Long barrel, two-hole" — common in substation specs
• "Dual crimp" — implies long barrel geometry
• "Short barrel acceptable where space limited" — provides contractor flexibility
• Reference to specific manufacturer series numbers (without inventing nonexistent part numbers)

Estimators should flag ambiguous language. "Compression lug" without barrel specification typically defaults to short barrel in commercial work, but utility scopes may assume long barrel. Clarify before procurement.

Selection Summary

The barrel length decision is not arbitrary. It reflects a calculated trade between space constraints and mechanical reliability. Specify and install accordingly.
