Sigma Wire & Cable Network Patch Cables Patch Cord | Cat8, S/FTP Stranded Bare Copper, Flat 9ft

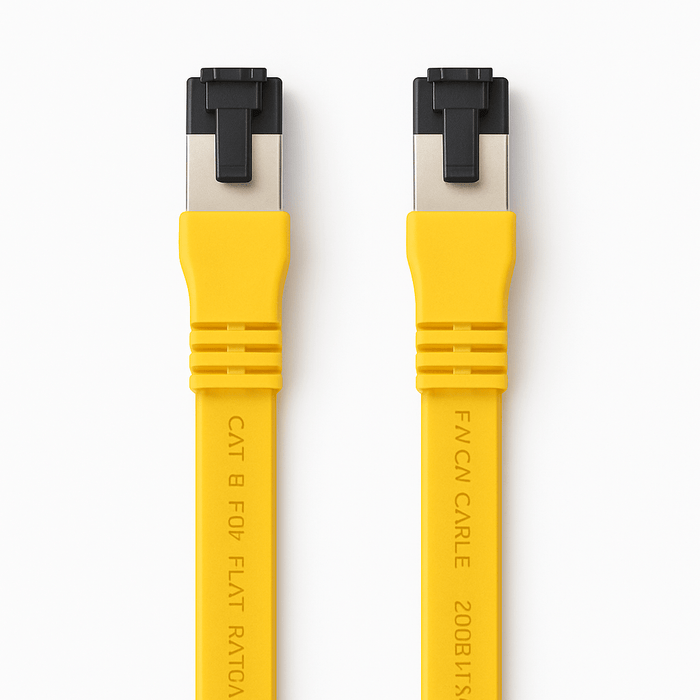

Patch Cord | Cat8, S/FTP Stranded Bare Copper, Flat 9ft

by Sigma Wire & Cable
Availability:
11 in stock, ready to be shipped
$20.00 - $20.00
$20.00
$20.00 - $20.00
$20.00
Request Distributor or Volume Pricing
SKU 9000-709



Sigma Cat 8 High-Performance Ethernet Cable | 40 Gbps • 2000 MHz • S/FTP Shield

Engineered for next-generation networks, the Sigma Cat 8 Ethernet Cable delivers deterministic 40 Gbps throughput, 2 GHz channel bandwidth and sub-microsecond latency—making it the definitive choice for data-center backbones, broadcast studios and enterprise edge deployments.

Technical Specifications

Maximum Data Rate 40 Gb/s (40GBASE-T, full-duplex)
Bandwidth 2 GHz / 2000 MHz
Latency ≤ 1 µs end-to-end
Error Control Integrated FEC / LDPC for bit-perfect transfers
Connector 8P8C (RJ-45) with anti-crosstalk pair dividers
Shielding S/FTP (overall braid & foil per pair) — ≥ 85 dB AXT isolation
Standards ANSI/TIA-568.2-D Cat 8, IEEE 802.3bq, PoE++ (802.3bt 90 W)
Backward Compatibility Auto-negotiates Cat 5e, Cat 6/6A & Cat 7 links
Operating Range −20 °C to +60 °C • 93 % RH non-condensing

Key Performance Benefits

  • Ultra-Low Crosstalk — S/FTP architecture eliminates EMI for secure, stable links.
  • 8K & 4K IP Video Ready — certified for uncompressed, high-bit-rate streams.
  • PoE++ Support — delivers up to 90 W for cameras, WAPs and IoT endpoints.
  • Gold-Plated Contacts ensure <20 mΩ resistance across 2 000+ mating cycles.

Ideal Applications

  • Hyperscale & Edge Data Centers – 40 Gb/s ToR ↔ Leaf cabling.
  • Broadcast / Pro-AV – SMPTE ST-2110, Dante AV-H, 8K real-time feeds.
  • Enterprise Backbones – MDF-to-IDF aggregation with zero packet loss.
  • Latency-Critical Workloads – HFT, VR/AR streaming, robotics control.
  • EMI-Sensitive Environments – medical imaging suites, defense installations.
