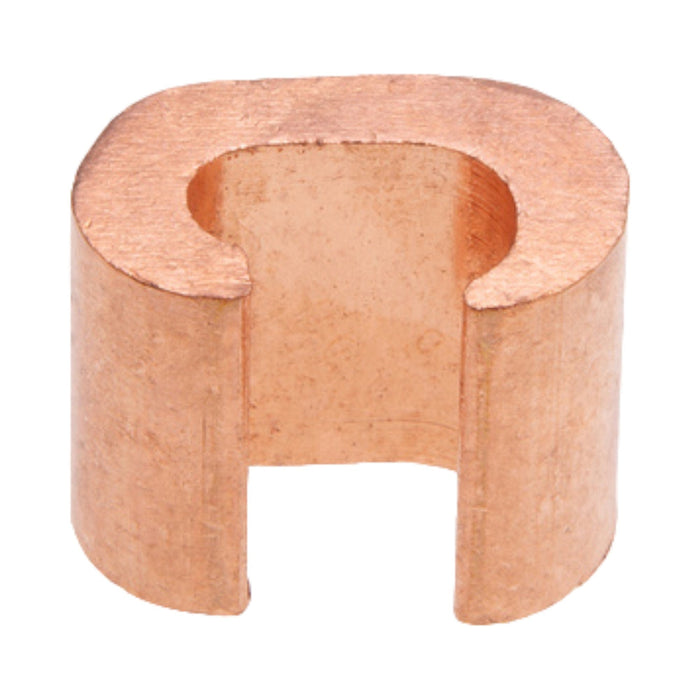

C-TAP Compression Grounding Connector | 1-2/0 AWG Run, #6-#2 AWG Tap
Shipping calculated at checkout
SKU: 610-24102
1000 in stock
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here
The C-TAP Compression Grounding Connector provides a compression-style termination for grounding electrode conductors and taps. Engineered for commercial and industrial grounding systems, this connector joins a main run conductor to a smaller tap conductor using compression tooling. Typical applications include ground rod connections, grounding grid taps, and bonding conductor splices where a reliable, inspectable connection is required.
Specifications
- Run Conductor: 1-2/0 AWG stranded
- Tap Conductor: #6 AWG solid to #2 AWG stranded
- Rod Run Size: 3/8"
- Connector Type: Compression
- Conductor Material: Copper
- Installation Method: Compression or crimping
- Finish: Corrosion-resistant
- Dimensions: 1/4" run
- Standard: UL467
Cross-Reference
Equivalent in form and function to C-TAP style grounding connectors offered by major electrical manufacturers. Provides comparable compression termination performance at distributor-level pricing.
FAQ
What compression tool is required for installation?
Use a compression tool rated for the connector's die index. Verify die compatibility with your tool manufacturer; improper die selection will result in an incomplete crimp and rejected inspection.
Can I reverse the run and tap conductors?
No. The connector is engineered for the specified run-to-tap conductor range. Installing #6-#2 AWG as the run or 1-2/0 AWG as the tap exceeds the design parameters and violates UL467 conditions of acceptability.
