MPPT Solar Charger Controller 40A, 12V/24V auto 100V max solar voltage
Shipping calculated at checkout
Out of stock
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here

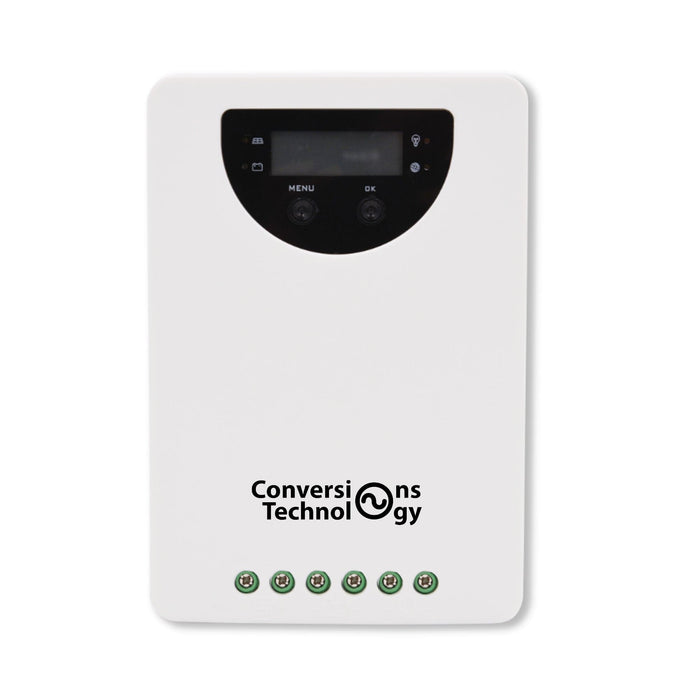

Conversions Tech 40 Amp MPPT Solar Charge Controller
Harvest every ray. This 40 A MPPT controller leverages cutting-edge Max Power Point Tracking to pull up to 98 % of panel output into your battery bank—even under shifting clouds or partial shade. Perfect for telecom repeaters, off-grid cabins, RV rigs, and commercial arrays.
Top-Line Advantages
- > 99.9 % MPPT Accuracy – Locks onto the true watt sweet spot in milliseconds.
- Digital 4-Stage Charging – MPPT → Boost → Equalize → Float maximizes capacity & battery life.
- Auto 12 / 24 V Detection – Zero-config start-up for common systems.
- Multi-Chemistry Ready – Flooded, AGM, Gel, and LiFePO4 profiles built-in.
- RS-485 / Modbus + Bluetooth – Real-time data, firmware updates, and IoT dashboards.
- Thermal Derating + Oversize Heat Sink – Keeps components protected in desert heat.
Technical Specifications
| Rated Charge / Load Current | 40 A |
|---|---|
| System Voltage | Auto 12 V / 24 V |
| Max PV Input Voltage | 75 V |
| MPPT Tracking Range | 120 W – 960 W (12 V) / 240 W – 1920 W (24 V) |
| Tracking Efficiency | > 99.9 % |
| Charge Conversion Efficiency | Up to 98 % |
| Battery Types | Sealed, Flooded, AGM, Gel, Lithium (LiFePO₄) |
| Communication | RS-485 Modbus (RJ-11), optional Bluetooth / IoT GPRS |
| Operating Temp | -31 °F – 131 °F (-35 °C – 55 °C) |
| Dimensions | — |
| Weight | — |
Ideal Applications
- Solar telecom base stations & remote repeaters
- Off-grid cabins, tiny homes & battery storage
- Commercial / utility PV installations requiring RS-485 data
- RV, van-life & marine systems upgrading to lithium
