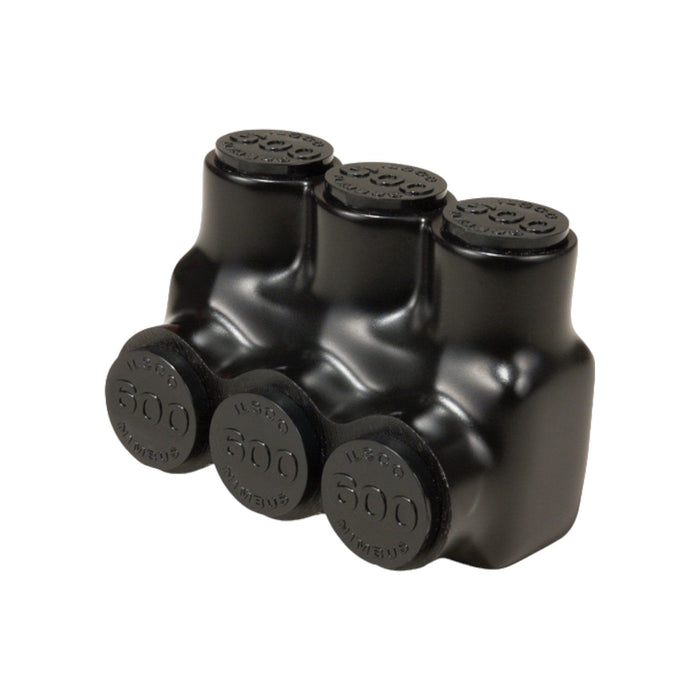

Insulated Tap Connectors 3 port single-side Entry 4 AWG - 600 MCM
Shipping calculated at checkout
SKU: 610-2003600
1000 in stock
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here
Insulated Tap Connectors | 4 AWG–500 KCMIL | UV-Resistant Plastisol | Conversions Tech
The Conversions Tech Insulated Tap Connectors are designed to form secure, long-lasting connections between multiple conductors. Featuring a rounded ergonomic design and a UV-resistant plastisol insulation coating, these connectors deliver exceptional durability and electrical reliability across residential, commercial, and industrial applications. Pre-filled with oxide inhibitor and compliant with NEC Article 230.46, they ensure stable, low-resistance performance in even the most demanding environments.
Key Advantages
- Secure Connections: Adjustable set screws and a rounded body create high-pressure, vibration-resistant connections with minimal electrical resistance.
- One-Side Wire Entry: Accommodates up to 3 conductors via single-side entry ports, compatible with wire sizes from 4 AWG to 500 KCMIL, suitable for NEC Article 230.46 line-side service connections.
- NEC 230.46 Compliance: Meets NEC Article 230.46 requirements, ensuring safety and suitability for service equipment applications.
- Ergonomic Design: Rounded, smooth plastisol body provides comfortable handling and quick installation.
- Removable Plugs: Each port and set screw is equipped with removable plugs to protect against debris, moisture, and contaminants.
- Pre-Filled Oxide Inhibitor: Entry ports are filled with oxide inhibitor gel to prevent corrosion and maintain stable resistance.
- UV-Resistant Plastisol Coating: Offers superior protection against UV radiation, abrasion, and chemical exposure for extended outdoor service life.
Key Technical Specifications
| Wire Gauge Range | 4 AWG to 500 KCMIL |
| Connection Type | Set Screw |
| Insulation Material | UV-Resistant Plastisol |
| Voltage Rating | 600 V |
| Material | Aluminum |
| Finish | Plastisol Insulated (UV Resistant) |
| Color | Black |
| Certifications | cULus Listed, NEC 230.46 Compliant |
| UL Standard | UL 486A/B |
| UL File No. | E186991 |
| Conductor Material | Copper or Aluminum |
| Max Amperage (Al/Cu) | Aluminum: 100 A / Copper: 130 A |
| Temperature Rating | 90°C, AL9CU |
| Environmental Temperature | Cold Temperature Rated to -45°C |
| Wire Class | Class B, Class C |
| UPC | 810166614573 |
| Origin | United States |
Applications
- Residential electrical installations
- Commercial and industrial wiring systems
- Power distribution and grounding networks
- HVAC systems and control panels
- Automotive and marine electrical systems
- Utility and infrastructure projects
- Machinery and equipment wiring
