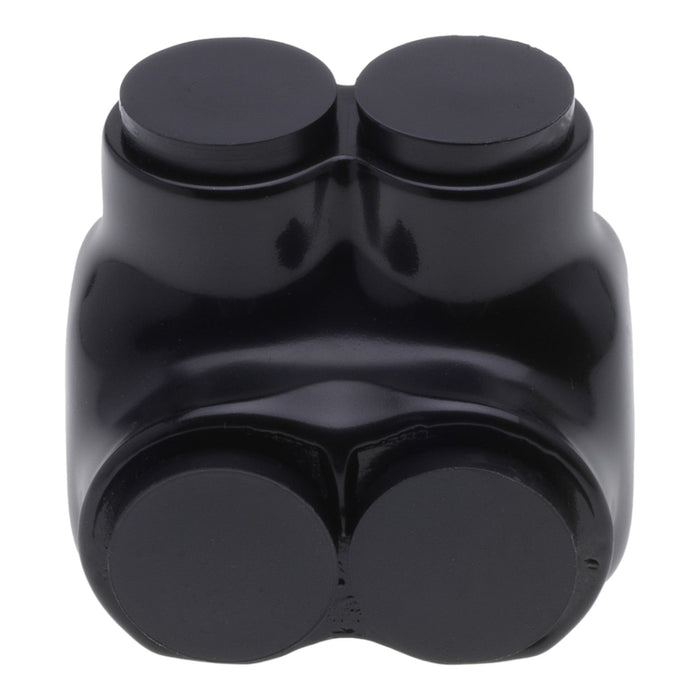

Conversions Tech Insulated Dual-Side Tap Connector | 2-Port, 2/0 AWG–6 AWG

Engineered for secure, low-resistance junctions in power-distribution, HVAC, and machinery circuits, this two-port insulated tap connector accepts conductors from 2/0 AWG down to 6 AWG via opposed side entries—delivering rapid, code-compliant splices in residential, commercial, and industrial environments.

Technical Specifications

Key Features

• Dual Side-Entry Ports —streamlines inline or offset tap terminations.
• Wide Gauge Range —handles feeder (2/0 AWG) to branch (6 AWG) conductors.
• Insulated Body —factory-molded dielectric eliminates taping and shrink tubing.
• High-Torque Set-Screws —deep-well hex drive prevents cam-out; maintains 360° pressure.
• Code-Compliant —UL and CSA listings for Cu or Al conductors; RoHS III environmentally safe.

Common Use-Cases

• Residential panelboard taps & service upgrades
• Commercial lighting and power distribution
• Industrial control cabinets & MCC buckets
• HVAC equipment disconnects
• Utility and infrastructure splices
• Marine, automotive, and heavy-equipment wiring
