Rigid Conduit Body C Series 1 -1/4" UL Threaded
Shipping calculated at checkout
SKU: 675-30014
98 in stock
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here

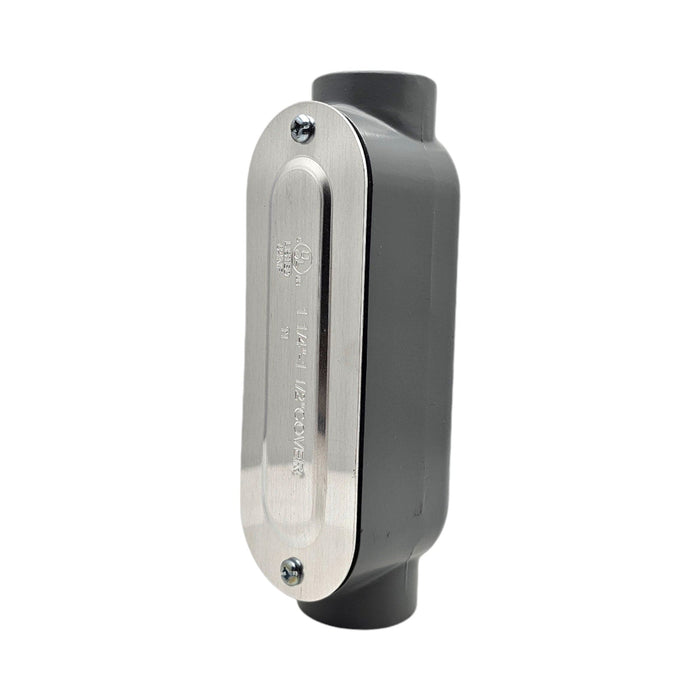

Conversions Tech C-Series 1-1/4″ Threaded Rigid Conduit Body — UL / CSA / RoHS / BABA Compliant
The Conversions Tech C-Series 1-1/4-inch Threaded Rigid Conduit Body provides a precision-engineered, straight-through junction for rigid metal conduit (RMC) and intermediate metal conduit (IMC) runs. Constructed from die-cast aluminum alloy with a powder-coated finish and neoprene-gasketed cover, it ensures a weather-sealed, code-compliant enclosure for pulling, splicing, and inspecting conductors while maintaining a continuous, grounded raceway.
Certified to UL and CSA standards and RoHS / BABA compliant, the C-Series conduit body offers superior corrosion resistance and mechanical reliability in both indoor and outdoor environments. Its straight-through geometry maximizes internal volume for NEC bend radius and fill compliance, providing safe and efficient conductor management.
Key Technical Features
- Trade Size 1-1/4″ Threaded NPT Hubs: Vibration-proof threaded connection to 1.25″ RMC / IMC runs.
- C-Series Straight-Through Body: Ample interior space for NEC-compliant conductor bends and splices.
- Die-Cast Aluminum Alloy: Lightweight, corrosion-resistant, and non-sparking housing.
- Stamped Aluminum Cover + Neoprene Gasket: NEMA 3R / IP54 seal for dry and damp locations.
- ANSI 61 Grey Powder-Coat: UV-, salt-spray-, and chemical-resistant finish.
- UL Listed & CSA Certified: Meets UL 514A/B and CSA C22.2 No. 18 for North-American installations.
- BABA Compliant: Manufactured in accordance with Build America, Buy America requirements.
- Removable Cover: Provides easy access for inspection and wire management without system disassembly.
- Weatherproof Design: Rated NEMA 3R / IP54 for indoor and outdoor use.
- Quick Installation: Threaded NPT hubs ensure fast, secure mounting to rigid conduit systems.
Technical Specifications
| Series / Geometry | C-Series, Straight-Through Rigid Conduit Body |
| Trade Size | 1-1/4″ (32 mm) Threaded NPT Hubs |
| Hub Type | Threaded NPT Hubs (UL-Filed) |
| Body Material | Die-Cast Aluminum Alloy |
| Cover & Seal | Stamped Aluminum Cover + Neoprene Gasket |
| Environmental Rating | NEMA 3R / IP54 (Weather-Resistant) |
| Finish | TGIC Polyester Powder Coat, ANSI 61 Grey |
| Certifications | UL Listed • CSA Certified • RoHS Compliant • BABA Certified |
| Origin | USA *Stock product may be sourced elsewhere. |
Application Highlights
- Joins two straight runs of 1-1/4″ RMC / IMC conduit securely.
- Provides a code-approved chamber for wire pulling, splicing, and tapping.
- Removable cover allows inspection and system upgrades without cutting conduit.
- Ideal for service entrances, rooftop feeds, industrial raceways, and large-amp residential circuits.
The Conversions Tech C-Series 1-1/4″ Conduit Body offers a robust, BABA-compliant solution for straight-through conduit connections. With UL / CSA certification, NEMA 3R weatherproof rating, and a durable powder-coated finish, it delivers reliable performance and easy maintenance in any environment.
FAQs (Click to Expand)
1. What is a C-Series conduit body used for?
It joins two straight sections of rigid or intermediate metal conduit while providing a code-approved access point for wire pulling and inspection.
2. Is the C-Series 1-1/4″ body UL and CSA approved?
Yes — it is UL Listed and CSA Certified for North-American electrical installations.
3. Does it include a gasket and cover?
Yes — each unit comes with a stamped aluminum cover and factory-installed neoprene gasket for a NEMA 3R seal.
4. What is the material and finish?
It is made of die-cast aluminum alloy with a TGIC polyester powder coat in ANSI 61 grey for corrosion resistance.
5. Can it be used outdoors?
Yes — its NEMA 3R / IP54 rating and powder-coated finish make it suitable for outdoor use in damp locations.
6. What standards does it comply with?
Complies with UL 514A/B, CSA C22.2 No. 18, NEC requirements, and BABA procurement standards.
7. Is this product RoHS compliant?
Yes — it meets RoHS directives for environmental safety and restricted substances.
8. What is the environmental rating?
It is rated NEMA 3R / IP54, providing weather and dust protection when the gasket is installed.
9. Is it BABA compliant?
Yes — manufactured under Build America, Buy America (BABA) guidelines for U.S. projects.
10. Why choose Conversions Tech conduit bodies?
Conversions Tech products combine UL and CSA certification with BABA compliance and durable construction for safe, long-term performance in any electrical environment.
