1-Input 1-Output PV Combiner Box | 600V, IP65, MCB/SPD/Fuse Protection
Shipping calculated at checkout
SKU: 14:6637281#1-1openXN;5:200000990#600v
Out of stock
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here

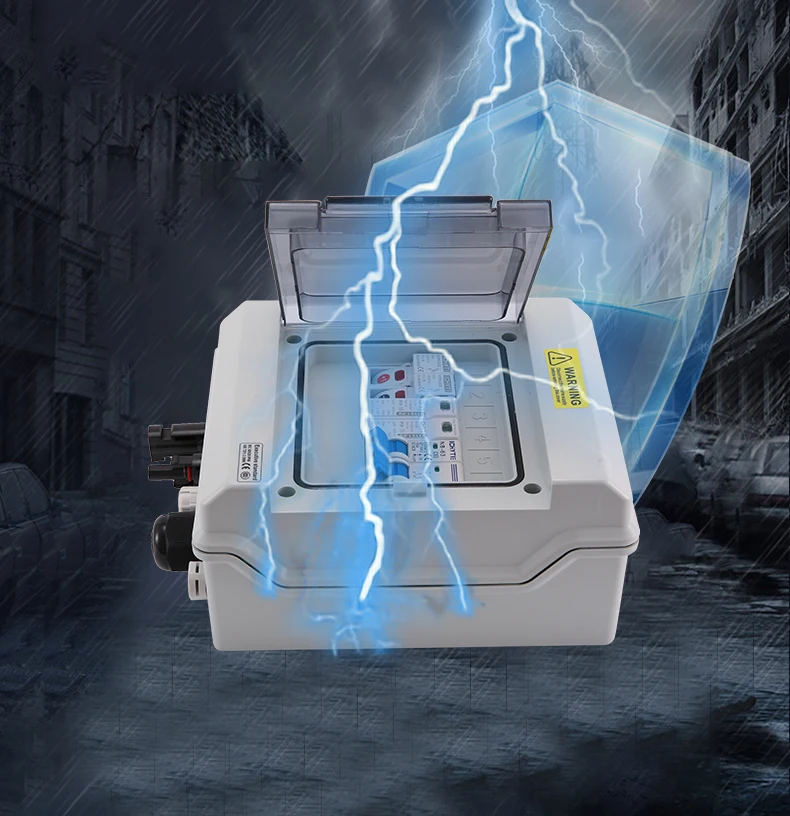

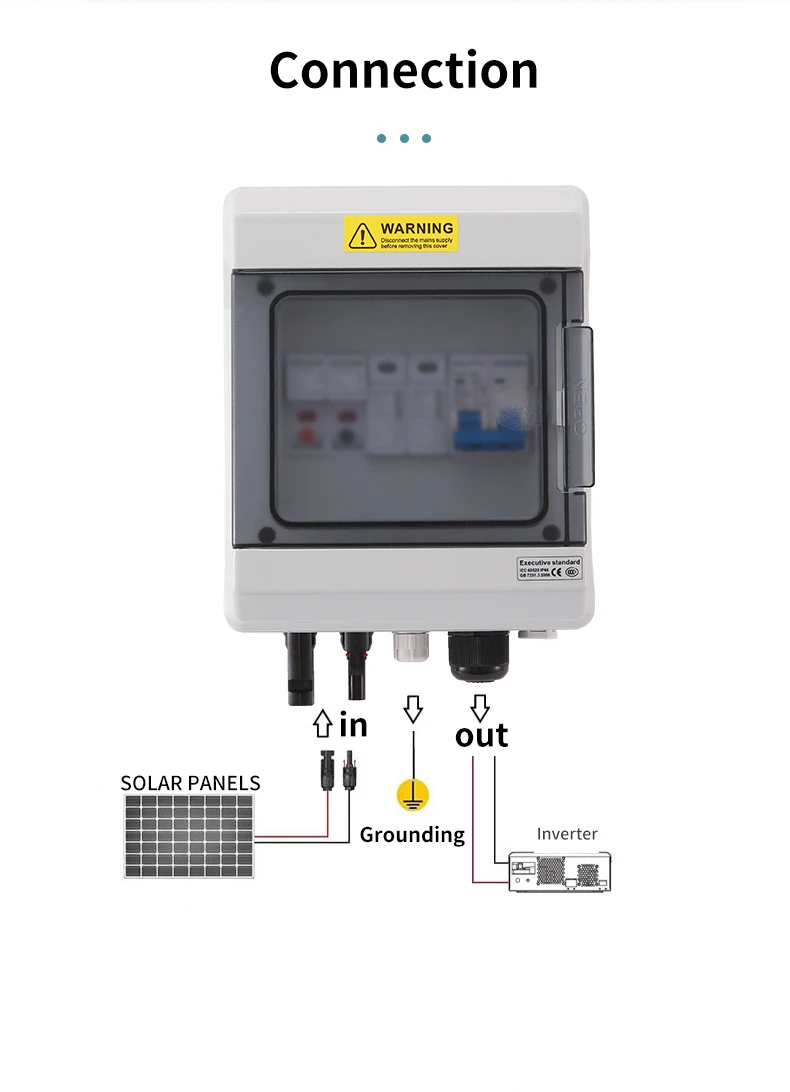

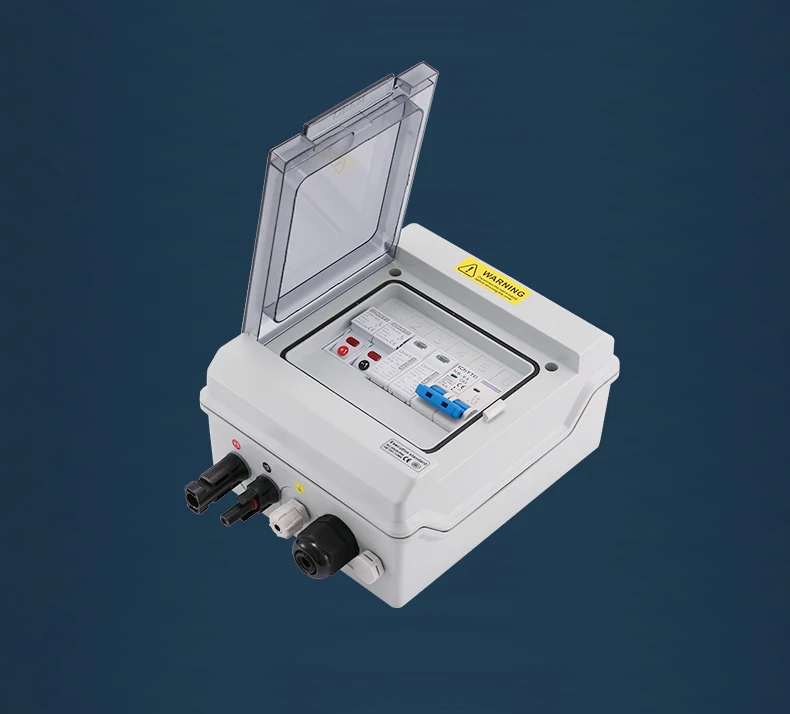

This photovoltaic combiner box provides DC circuit aggregation and protection for solar array installations. Designed for 600V DC systems, it combines one PV string input into one output with integrated overcurrent, short-circuit, and surge protection. The hard-shell enclosure features a pull-out design for service access and is rated IP65 for outdoor deployment. Used in residential, commercial, and utility-scale solar projects to consolidate panel strings before inverter connection.
Specifications

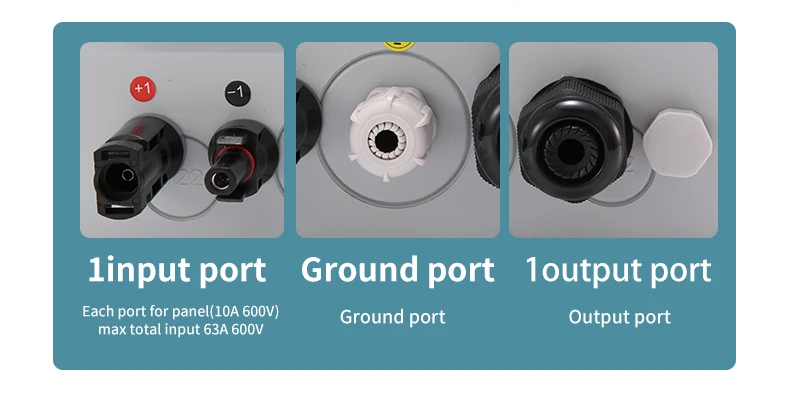

- Configuration: 1-input, 1-output
- System voltage: 600V DC
- Enclosure rating: IP65
- Construction: Hard-shell waterproof housing
- Access: Pull-out design

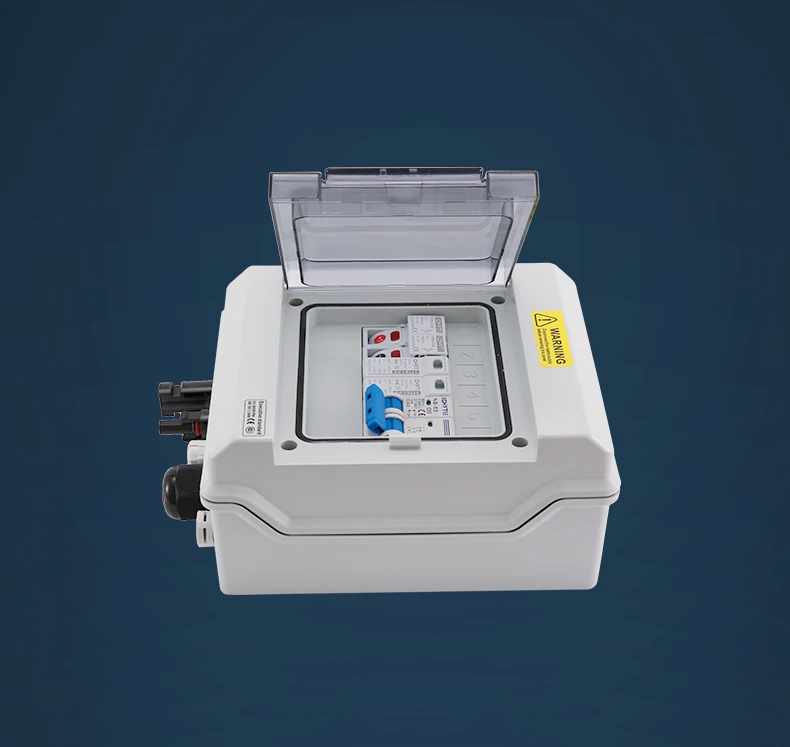

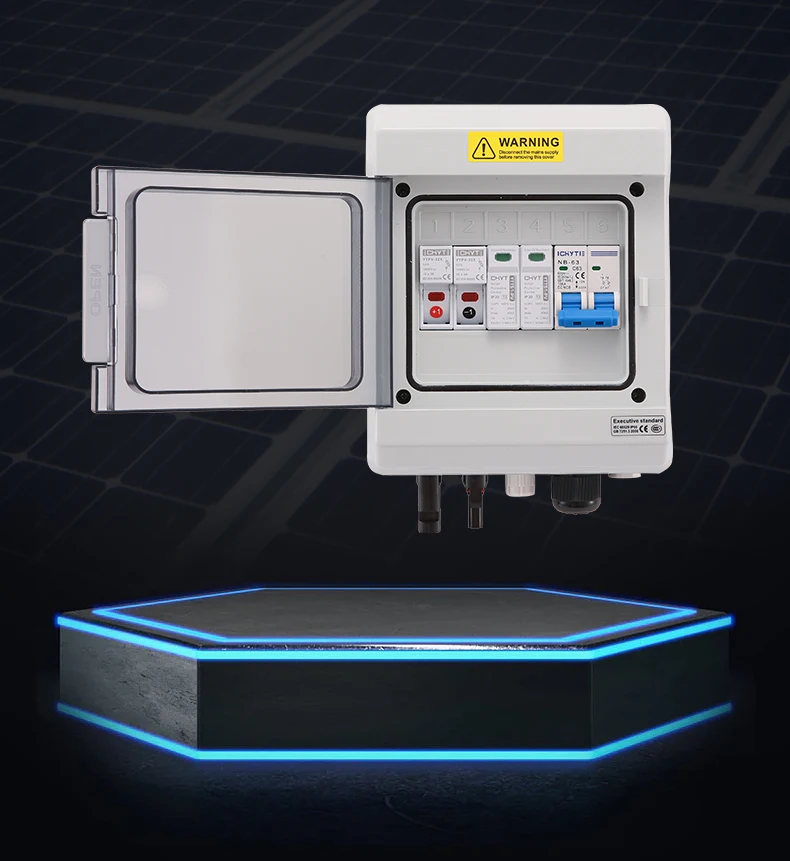

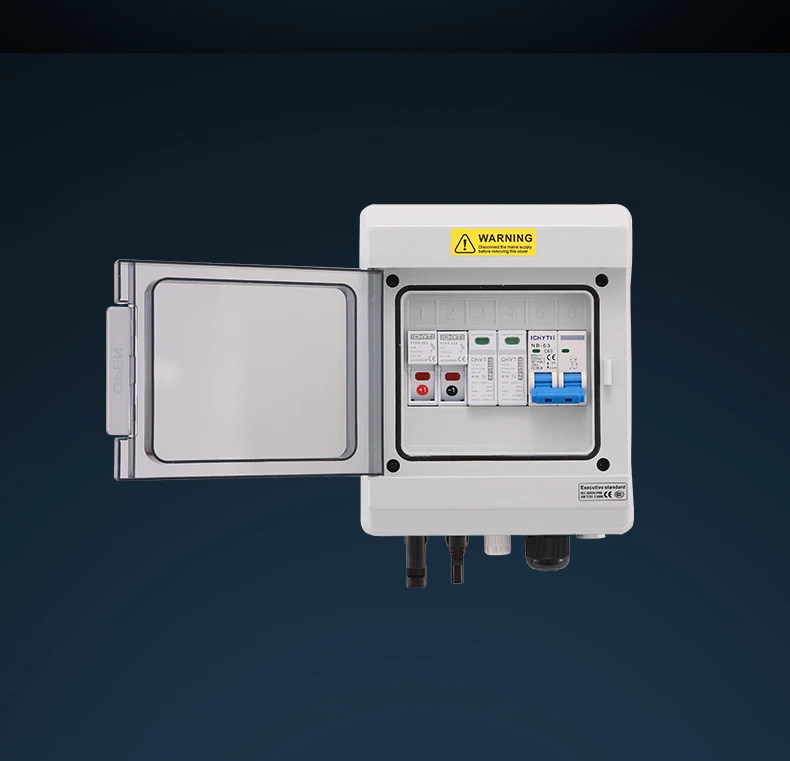

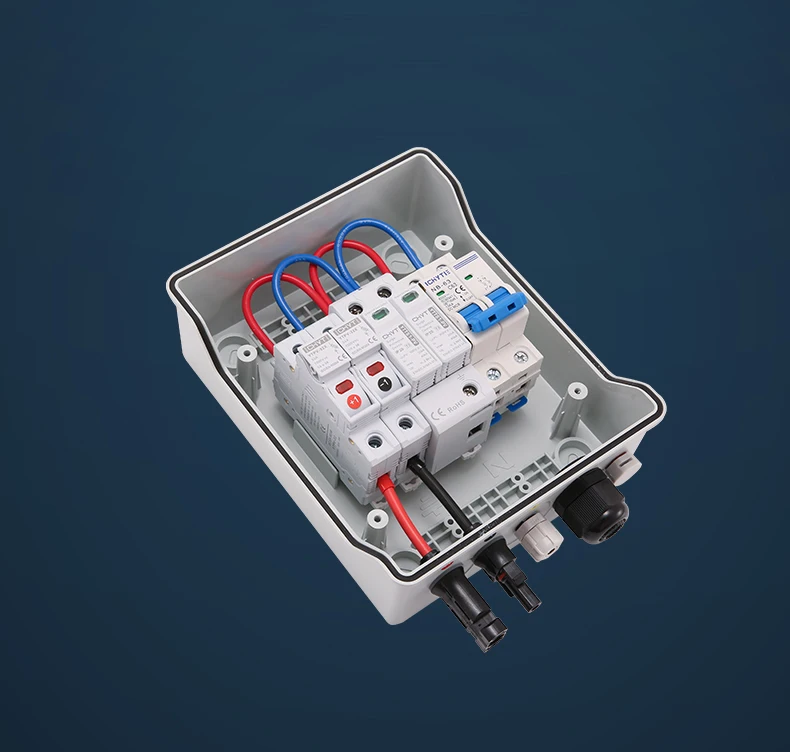

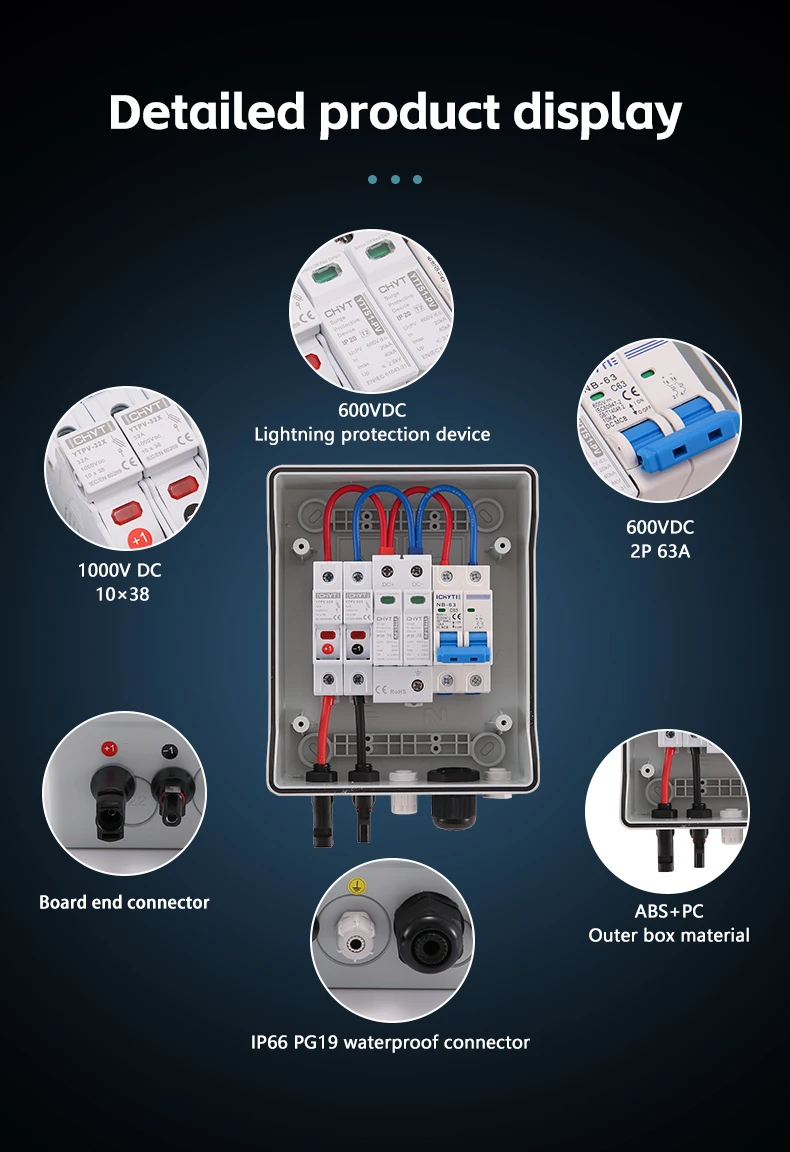

- Protection components: Fuse, MCB (miniature circuit breaker), SPD (surge protective device)
- Application: Solar photovoltaic DC combiner
Cross-Reference
Equivalent functionality to standard PV combiner enclosures from major solar electrical manufacturers, offering integrated fuse, breaker, and surge protection in a weather-resistant housing at lower cost.
FAQ
What wire size does this combiner box accept?
The source does not specify terminal or wire range. Contact engineering to confirm compatible conductor sizes for your 600V DC installation.
Is this rated for outdoor installation?

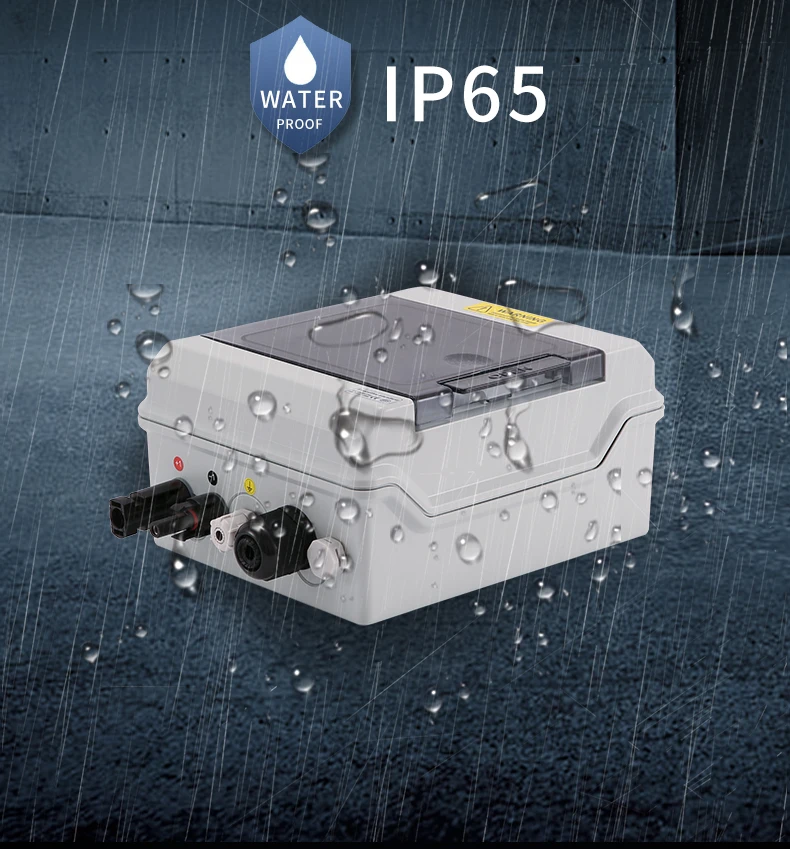

Yes. The IP65 rating indicates protection against dust ingress and low-pressure water jets from any direction, suitable for outdoor solar applications.
Does this include the fuse, breaker, and surge protector?
The source lists fuse, MCB, and SPD as included protection components. Specific ratings and replaceability should be confirmed with your project manager.
