Splitter | 4 way | Power Passing
Shipping calculated at checkout
SKU: 189-100
Out of stock
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here

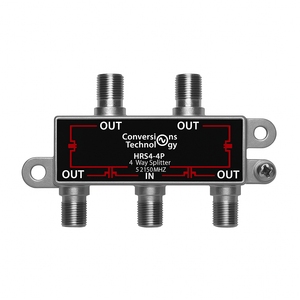

4-Port 2.4 GHz Coax Splitter
All-Port Power Pass | MoCA & DOCSIS Ready
Boost RF uptime and 4K/8K clarity with the Conversions Tech premium 4-way splitter. Wide-band 5 MHz–2.4 GHz support plus DC/IR power pass on every port makes it the ideal hub for cable, satellite, MoCA mesh, and DOCSIS 3.1 gateways.
Key Benefits
- Full-Spectrum 5 MHz – 2.4 GHz — handles UHD TV, high-speed data, OTA & satellite.
- All-Port Power Pass — feeds LNBs, amplifiers, or IR blasters through every output (up to 1 A DC).
- Ultra-Low Insertion Loss — < 1 dB (5–1000 MHz) • < 2 dB (to 2400 MHz) preserves signal strength.
- Shielded Zinc Die-Cast Housing — nickel-plated, 360° EMI seal stops RF leakage.
- Gold-Plated Center Pins — superior conductivity and corrosion resistance.
- Easy Install Flanges — dual #8 ground/mount lugs for rack, wall, or enclosure mounting.
Ideal Use Cases
Home streaming hubs • 4K/8K Pro A/V racks • MDU RF head-ends • ISP & telecom node splits • MoCA 2.5 mesh networks • DOCSIS 3.1 gateways • Multi-room satellite & OTA antenna systems
Choose Conversions Tech for interference-free RF distribution—zero drop-outs, zero pixelation, zero static.
4 Reasons Pros Buy Direct from Conversions Tech
, we design, test, and ship every product from inside the United States— “” quality without the big-box markup.
Our , mold, and QA station behind our weatherproof boxes, conduit bodies, and power inverters. , UL-listed safety, and up to 30 % lower cost than .
Need a torque spec or an OEM quote at dawn? You’ll speak directly with the Conversions Tech engineering desk—not a script reader—for instant answers, custom kitting, and private-label options.
Bottom line: For rugged, code-compliant electrical solutions shipped fast from a trusted U.S. source, choose Conversions Tech and build it right the first time.
