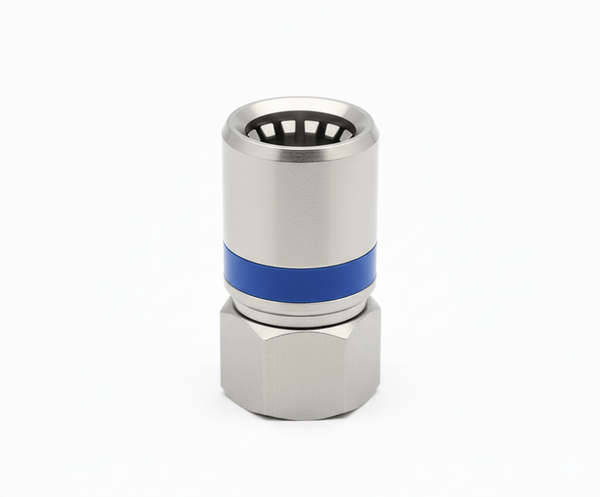

RG6 Push-On Compression Connector (Tool-less)
The Conversions Tech RG6 Compression Connector delivers tool-free speed with precision RF performance for CATV, satellite, broadband, and CCTV runs. A nickel-plated brass architecture with integrated rubber sealing ring provides consistent mating, durability, and long-term signal reliability—without a compression tool.
Key Features
- Toolless install: true push-on compression action—no crimpers or compression tools required.
- Pro-grade metallurgy: nickel-plated brass body and internal rings for conductivity and corrosion resistance.
- Weather-minded design: integrated black rubber ring enhances sealing and vibration resistance.
- Standards-friendly interface: F-type, 3/8"–32 UNF with HEX11 driving surface for secure, repeatable torque.
- Compact footprint: short overall length minimizes clearance issues in tight panels and keystone bays.
- RG6 ready: tuned for 75-ohm RG6 distribution in residential and commercial deployments.
Technical Specifications
| Connector Type | F-Type, Push-On Compression (Toolless) |
|---|---|
| Cable Compatibility | RG6 (75 Ω nominal) |
| Thread / Interface | 3/8"–32 UNF, HEX11 drive |
| Overall Length | 20 mm |
| Max Body Ø | 11.4 mm ± 0.05 |
| Primary Materials | Brass body, connection & compaction rings; steel sleeve; black rubber ring |
| Plating / Finish | Nickel plated (metal components) |
| Typical Use Cases | Broadband, satellite TV, CATV, CCTV |
Applications
Ideal for trunk and drop installations, MDU retrofits, service calls, and job-site kitting where speed and repeatability matter—especially when tool access is limited.
What’s Inside
- Nickel-plated brass shell, screw cap, connection ring, and compaction ring
- Manganese steel sleeve
- Black rubber sealing ring
FAQs
Do I need a compression tool?
No. This design is fully toolless—push-on compression secures the connector without crimping or traditional compression tooling.
Will it fit standard F-ports?
Yes—this is an F-type interface with 3/8"–32 UNF thread and HEX11 drive surface for secure mating.
Is it suitable for outdoor use?
The nickel finish and integrated rubber ring enhance corrosion resistance and sealing. Final weatherability depends on installation quality and environmental exposure.
