3/4" EMT Compression Connector Raintight Insulated | Steel, UL Listed
Shipping calculated at checkout
SKU: 3104-0034
250 in stock
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here

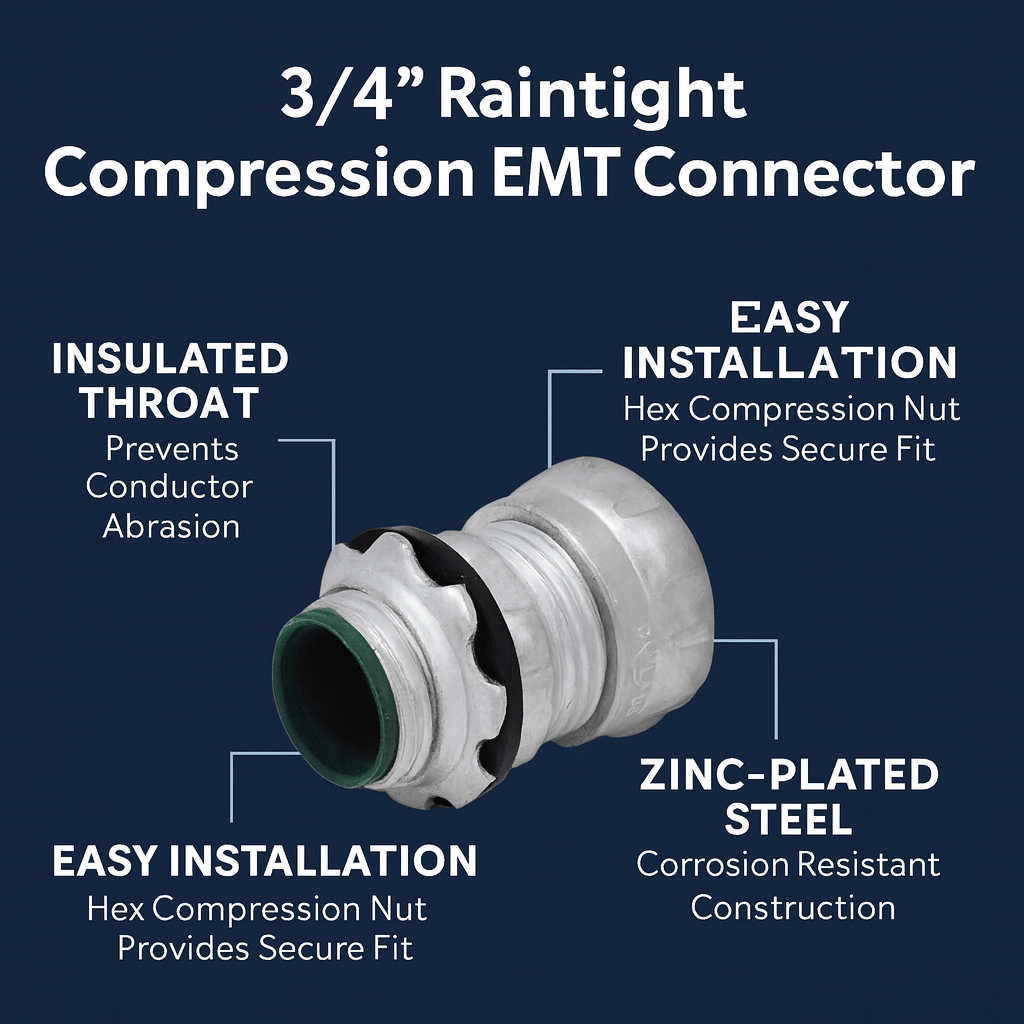

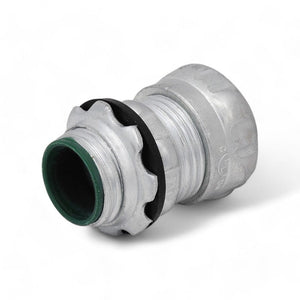

The 3/4-inch EMT Compression Connector is a raintight, insulated-throat fitting for electrical metallic tubing (EMT). Engineered by Conversions Tech and built to specification by certified partner factories, this connector provides a watertight seal for outdoor and wet location installations while the insulated throat protects conductor insulation from abrasion at the entry point. The compression-type connection with hex nut ensures vibration-resistant mechanical retention of the conduit.
Specifications
- Type: EMT Compression Connector, Raintight & Insulated
- Material: Zinc-plated steel
- Trade Size: 3/4 inch
- Connection: Compression type with hex nut
- Throat: Insulated
- Certifications: UL Listed, NEC compliant
Cross-Reference
Equivalent to raintight insulated compression connectors from major manufacturers. Provides the same form, fit, and function at lower cost without compromising code compliance or field performance.
FAQ
What EMT conduit size does this connector fit?
This connector is sized for standard 3/4-inch trade size EMT conduit. Verify your conduit marking matches the 3/4-inch trade size before installation.
Is this connector suitable for wet locations?
Yes. The raintight designation indicates the fitting is designed to prevent water ingress at the conduit connection point when properly installed per NEC requirements for wet location wiring methods.
What is the purpose of the insulated throat?
The insulated throat provides a non-metallic barrier between the conductor insulation and the steel body of the connector, reducing abrasion risk when conductors are pulled through the fitting and protecting cable jacket integrity at the termination point.
